Piezoelectric tension sensors are devices that convert mechanical stress into electrical signals, leveraging the piezoelectric effect. This phenomenon occurs in materials that generate an electric charge in response to mechanical deformation, such as pressure or strain. The choice of material for these sensors is crucial as it determines their sensitivity, durability, and operating range. In this article, we will explore the various materials used in piezoelectric tension sensors, their properties, and applications.
Piezoelectric materials can be broadly categorized into three main types: crystalline, ceramic, and polymeric. Each type has its unique properties and applications.
- Crystalline Materials: These include natural materials like quartz and tourmaline, which have been used historically due to their piezoelectric properties. However, they are less sensitive compared to ceramic materials but offer better long-term stability.
- Ceramic Materials: The most common piezoelectric ceramics are lead zirconate titanate (PZT), barium titanate, and lead titanate. These materials have high sensitivity and are widely used in sensors and actuators. However, they are brittle and have a lower Curie temperature, limiting their use in high-temperature applications.
- Polymeric Materials: Polymers like polyvinylidene fluoride (PVDF) offer flexibility and can be easily shaped into various forms. They have a lower Young's modulus compared to ceramics, making them suitable for applications requiring high voltage sensitivity.

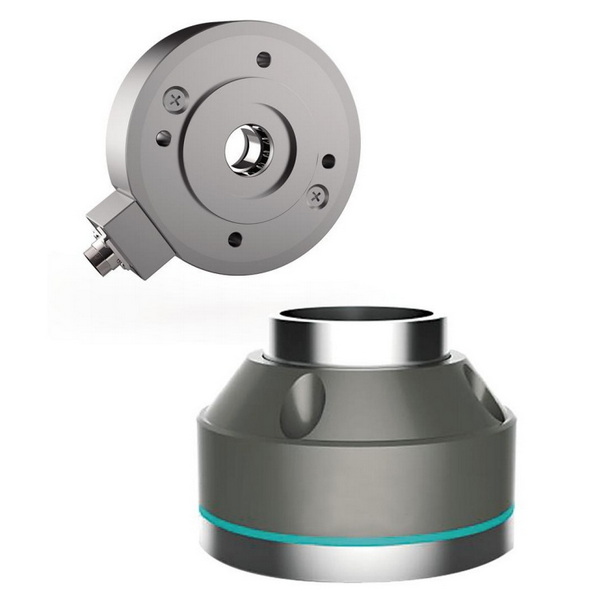

Piezoelectric tension sensors utilize these materials to measure strain or tension in structures. The sensor converts mechanical stress into an electrical signal, which is then processed to provide information about the applied force.
- PZT ceramics are widely used in piezoelectric sensors due to their high sensitivity and ease of fabrication. They can be molded into various shapes and sizes, making them versatile for different applications.
- PZT ceramics have a high piezoelectric constant, which is essential for converting mechanical stress into electrical signals efficiently. However, their sensitivity degrades over time, especially at high temperatures.

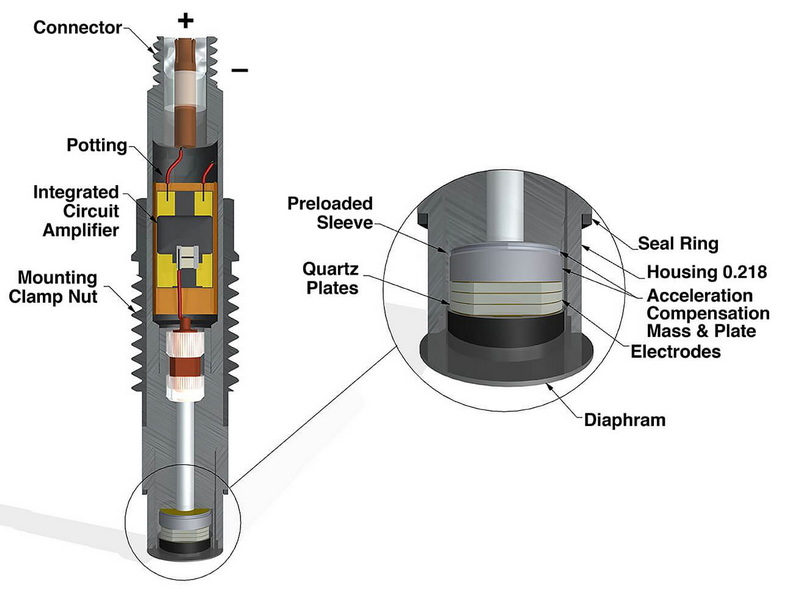

Single-crystal materials like quartz and gallium phosphate offer high long-term stability and are less sensitive to temperature changes compared to PZT ceramics. They are ideal for applications requiring precise measurements over extended periods.
PVDF is a flexible polymer that can be used in applications requiring high voltage sensitivity and low mechanical stiffness. It is suitable for detecting biosignals and can be integrated into wearable devices.
Piezoelectric tension sensors find applications in various industries due to their ability to measure dynamic changes in mechanical stress accurately.
- Aerospace and Automotive: Used in vibration analysis and pressure measurement systems.
- Medical Devices: Employed in ultrasound imaging and biosignal detection.

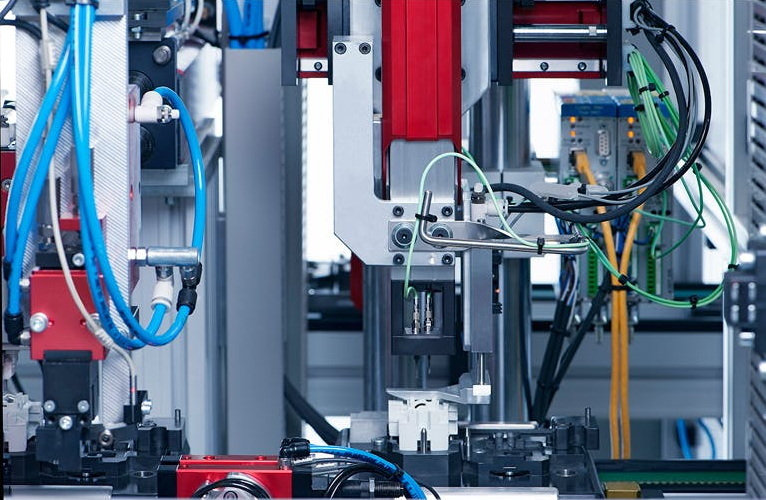

- Industrial Processes: Utilized for monitoring pressure and vibration in machinery.
When designing piezoelectric tension sensors, several factors must be considered:
- Material Selection: The choice of material affects the sensor's sensitivity, operating temperature range, and durability.
- Sensor Geometry: The shape and size of the sensor influence its mechanical properties and electrical output.
- Signal Conditioning: External electronics are required to amplify and process the electrical signal generated by the sensor.
Despite their advantages, piezoelectric tension sensors have some limitations:
- Temperature Sensitivity: The output of piezoelectric sensors can vary with temperature, requiring thermal compensation in some applications.
- Static Measurements: Piezoelectric sensors are not suitable for static measurements due to charge leakage over time.
- High Impedance: Specialized electronics are needed to handle the high impedance of these sensors.
Research is ongoing to develop new piezoelectric materials with improved properties, such as higher sensitivity and stability. Lead-free ceramics and advanced polymers are being explored for their potential in sensing applications.
Piezoelectric tension sensors are versatile devices that leverage the piezoelectric effect to measure mechanical stress. The choice of material is critical, with options ranging from PZT ceramics to single-crystal materials and polymers like PVDF. Each material offers unique advantages and is suited for different applications. As technology advances, we can expect to see further innovations in piezoelectric materials and their applications.
The piezoelectric effect is a phenomenon where certain materials generate an electric charge in response to mechanical stress, such as pressure or strain.
Common materials include PZT ceramics, quartz, gallium phosphate, and PVDF polymers. Each material has its own set of properties and applications.
Piezoelectric sensors are not suitable for static measurements due to charge leakage, are sensitive to temperature changes, and require specialized electronics due to high impedance.
They are used for vibration analysis, pressure measurement, and monitoring machinery health in industries like aerospace, automotive, and manufacturing.
Research is focused on developing lead-free ceramics, improving material stability, and exploring new applications in energy harvesting and advanced sensing technologies.
