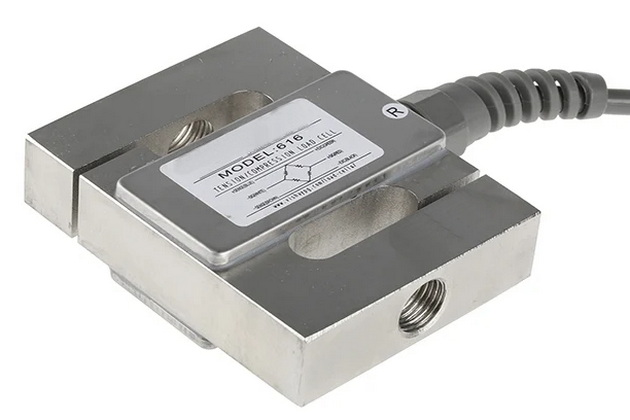

High precision tension load cells are specialized devices designed to measure tensile forces with exceptional accuracy. Unlike other types of load cells, such as compression load cells or general-purpose load cells, high precision tension load cells are engineered specifically for applications where pulling forces are predominant. This article explores the unique features, advantages, and applications of high precision tension load cells, highlighting what sets them apart from their counterparts.
Load cells are transducers that convert force into an electrical signal. They come in various types, each suited for different applications based on the direction of the force applied—tension or compression.
- Tension Load Cells: Measure pulling forces.
- Compression Load Cells: Measure pushing forces.
- Universal Load Cells: Can measure both tension and compression.

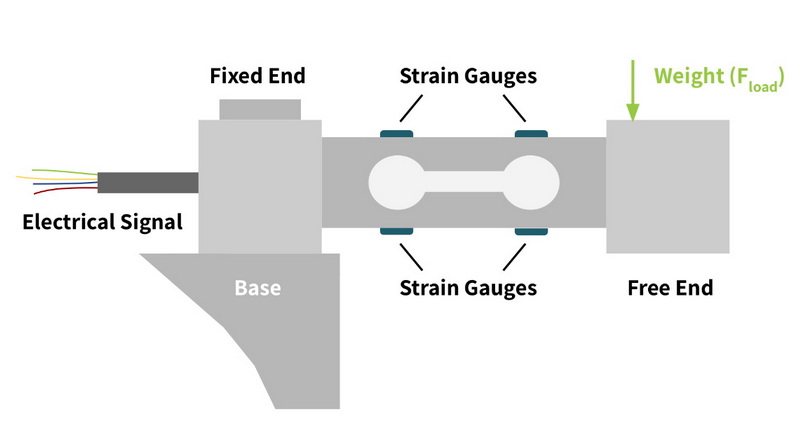

High precision tension load cells utilize strain gauges to detect the minute deformations caused by tensile forces. These gauges are often arranged in a Wheatstone bridge configuration, allowing for accurate measurement of the applied force.
High precision tension load cells boast several features that differentiate them from other types:
- Exceptional Accuracy: Many high precision tension load cells offer accuracies within ±0.02% of full scale, making them ideal for critical applications where precision is paramount.
- High Sensitivity: These load cells can detect very small changes in force, which is crucial for applications requiring fine measurements.
- Durable Construction: Typically made from robust materials like stainless steel or aluminum, high precision tension load cells are designed to withstand harsh environments and provide long-lasting performance.
- Low Profile Design: Many models feature a compact design that allows for easy installation in space-restricted environments without sacrificing performance.
The advantages of using high precision tension load cells include:
- Versatility: Suitable for a wide range of applications across various industries, including manufacturing, automotive, aerospace, and construction.
- Reduced Maintenance Costs: Their durable construction and low wear rates lead to lower maintenance requirements over time.
- Ease of Installation: Many models come with user-friendly features that simplify installation and calibration processes.
High precision tension load cells are utilized in numerous applications where accurate measurement of tensile forces is critical:
- Material Testing: Used to evaluate the tensile strength of materials in laboratories and manufacturing settings.
- Structural Monitoring: Employed in civil engineering to monitor the integrity of structures such as bridges and buildings by measuring the tension in cables and supports.
- Crane and Hoist Weighing: Essential for ensuring safety in lifting operations by accurately measuring loads during hoisting.
- Automotive Testing: Used to assess the strength and durability of automotive components under various loads during testing phases.
| Feature | High Precision Tension Load Cells | Other Load Cells |
|---|---|---|
| Measurement Type | Tension | Compression or Universal |
| Accuracy | ±0.02% or better | Varies (typically ±0.1% to ±1%) |
| Sensitivity | High | Medium to Low |
| Construction Material | Stainless Steel/Aluminum | Varies (Aluminum, Steel) |
| Application Range | Specialized (e.g., aerospace) | General (e.g., weighing scales) |
High precision tension load cells stand out due to their exceptional accuracy, sensitivity, and versatility across various demanding applications. Their specialized design allows them to perform reliably in environments where precise measurement of tensile forces is critical. As industries continue to evolve towards automation and require more accurate measurement solutions, the role of high precision tension load cells will only grow more significant.
A high precision tension load cell is a specialized sensor designed to measure tensile forces with exceptional accuracy, often within ±0.02% of full scale.
They work by utilizing strain gauges arranged in a Wheatstone bridge configuration that detect deformations caused by applied tensile forces, converting these changes into an electrical signal.
Common applications include material testing, structural monitoring, crane weighing, and automotive testing, among others.
Yes, they are typically constructed from robust materials like stainless steel or aluminum to withstand harsh environments and provide long-lasting performance.
High precision tension load cells offer accuracies within ±0.02%, which is significantly higher than many other types of load cells that may have accuracies ranging from ±0.1% to ±1%.
