Before delving into replacement indicators, it's essential to understand what load cells are and how they function.

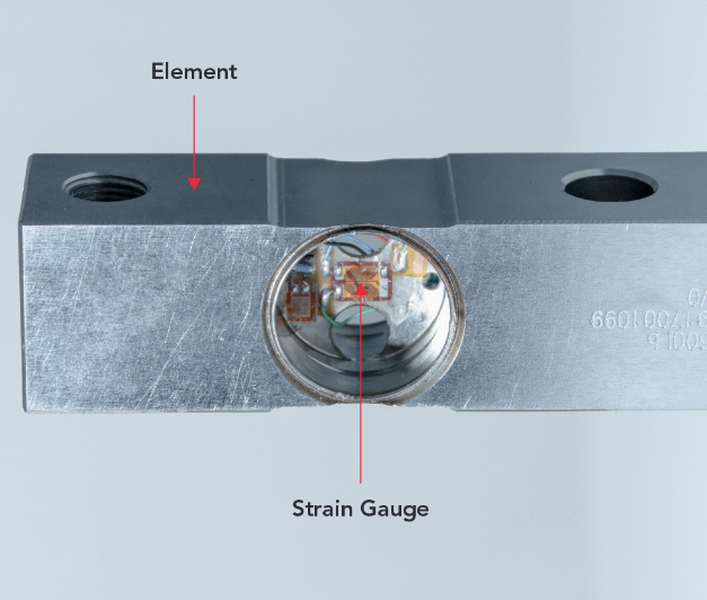

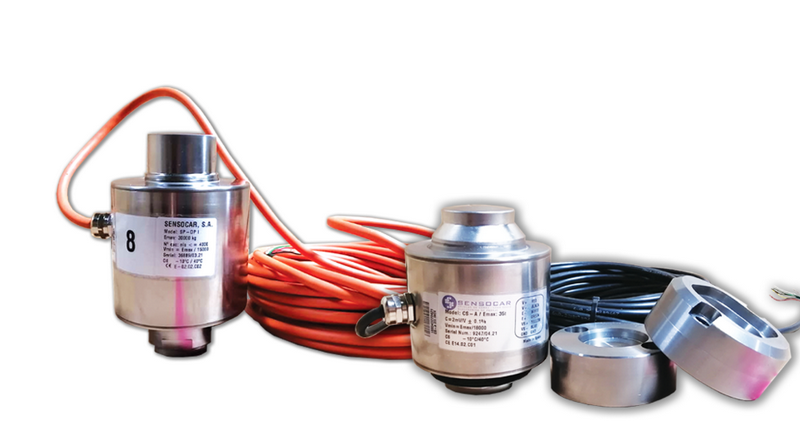

Load cells are transducers that convert force or weight into an electrical signal. They operate on the principle of strain, where applied force causes a slight deformation in the cell, changing its electrical resistance. This change is then measured and translated into a weight or force reading.
One of the primary indicators that your load cell may need replacement is a significant shift in zero balance. The zero balance is the reading displayed when no load is applied to the cell.
What to look for:
- Consistent non-zero readings when the load cell is unloaded
- Difficulty in achieving a stable zero point
If you notice these issues, it's time to consider a replacement or, at minimum, a thorough evaluation by a professional.
Unstable readings can signify various issues with your load cell, from electrical problems to mechanical damage.
Signs of instability:
- Fluctuating readings under constant load
- Inconsistent measurements when the same weight is applied repeatedly
Physical damage is often the most apparent sign that a load cell needs replacement. Regular visual inspections can help catch these issues early.
Look out for:
- Cracks or deformations in the load cell body
- Visible corrosion, especially around seals
- Damaged cables or connectors
Insulation resistance tests help determine if there's any electrical leakage in the load cell. Failed tests often indicate internal damage that necessitates replacement.
How to perform the test:
1. Use a megohmmeter to measure resistance between the load cell's body and its electrical terminals
2. A reading below the manufacturer's specified value indicates potential insulation failure
If a load cell has been subjected to forces beyond its rated capacity, it may have suffered internal damage, even if it appears functional.
Consider replacement if:
- The load cell has experienced shock loads
- There's a known history of overloading incidents
While knowing when to replace load cells is crucial, implementing preventive measures can significantly extend their lifespan.
Periodic calibration ensures your load cells maintain accuracy over time. It can also help detect early signs of deterioration.
Recommended calibration frequency:
- For critical applications: Every 6 months
- For standard use: Annually
Load cells are sensitive to environmental factors. Protecting them can prevent premature failure.
Key protection measures:
- Use appropriate sealing for moisture protection
- Install lightning protection for outdoor applications
- Maintain stable temperature conditions where possible
Correct installation and use are fundamental to load cell longevity.
Best practices:
- Follow manufacturer guidelines for mounting
- Avoid side loading or off-center loading
- Use appropriate cabling and connectors
For more in-depth analysis, consider these advanced diagnostic techniques:
This test helps identify damage to the internal resistors of the load cell.
How to perform:
1. Measure the resistance across each leg of the Wheatstone bridge
2. Compare values to manufacturer specifications
3. Significant deviations indicate potential internal damage
Shunt calibration can help verify the load cell's performance without applying physical loads.
Process:
1. Apply a known resistance across one arm of the bridge
2. Compare the output to expected values
3. Deviations may indicate the need for recalibration or replacement
Understanding the consequences of load cell failure can underscore the importance of timely replacement:
- Safety Risks: In applications like crane scales or industrial weighing, inaccurate readings can lead to dangerous overloading.
- Production Inefficiencies: Inaccurate measurements can result in product waste or quality issues.
- Compliance Issues: Many industries have strict regulations regarding measurement accuracy. Faulty load cells can lead to non-compliance.

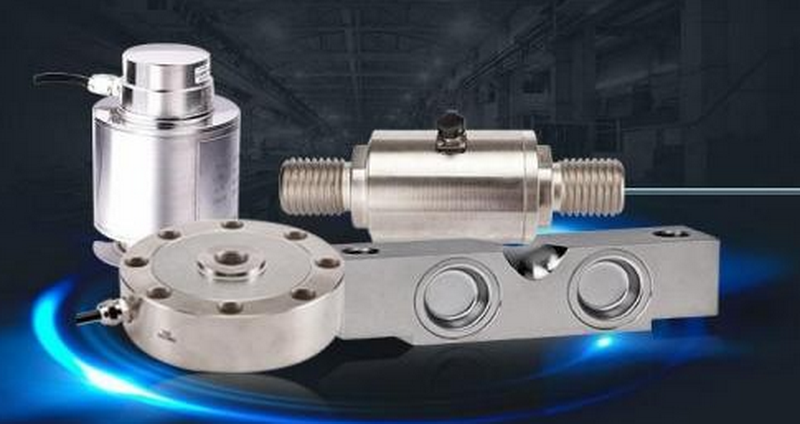

When it's time to replace a load cell, selecting the right replacement is crucial:
Ensure the new load cell has the appropriate capacity for your application. Consider future needs and potential load increases.
Choose a load cell designed for your specific environmental conditions, considering factors like:
- Temperature range
- Moisture exposure
- Chemical resistance
Select a load cell with an accuracy class suitable for your application. Higher accuracy classes generally come with a higher price tag but may be necessary for precise measurements.

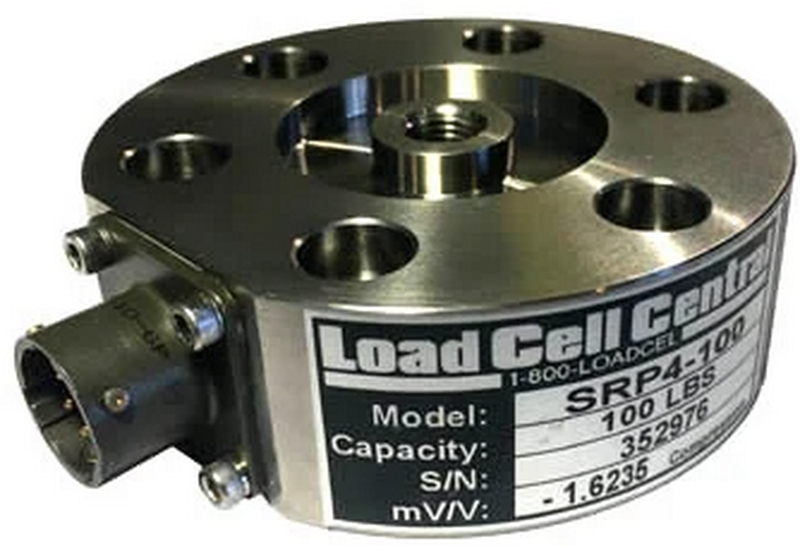

Consider the compatibility of the load cell's output signal with your existing system. Common options include:
- mV/V output
- 4-20 mA
- Digital outputs (e.g., RS-485)
As technology advances, load cells are becoming more sophisticated. Future developments may include:
- Smart Load Cells: Integrated diagnostics and self-calibration features
- Wireless Technology: Eliminating the need for complex cabling
- Advanced Materials: Improving durability and temperature resistance
Staying informed about these advancements can help you make forward-thinking decisions when replacing load cells.
A food processing plant noticed inconsistent product weights. Investigation revealed a load cell in their main production line scale had developed a shifted zero balance due to prolonged exposure to harsh cleaning chemicals.
Solution: The load cell was replaced with a chemically resistant model, and a new cleaning protocol was implemented to protect the equipment.
A highway weighing station experienced frequent calibration drift. Analysis showed that temperature fluctuations were affecting the load cells' performance.
Solution: The existing load cells were replaced with temperature-compensated models, significantly reducing drift and improving measurement consistency.
Knowing when to replace load cells is crucial for maintaining accuracy, safety, and efficiency in various industrial applications. By understanding the signs of load cell failure, implementing preventive measures, and staying informed about technological advancements, you can ensure optimal performance and longevity of your weighing systems.
Regular inspections, calibrations, and a proactive approach to maintenance can significantly extend the life of your load cells. However, when replacement becomes necessary, choosing the right load cell for your specific application is paramount.
Remember, the cost of replacing a load cell is often far less than the potential consequences of using a faulty one. By prioritizing the health of your load cells, you're investing in the overall reliability and success of your operations.
Load cells should typically be calibrated annually for standard use. However, in critical applications or harsh environments, more frequent calibrations (every 3-6 months) may be necessary. Always follow manufacturer recommendations and industry standards for your specific application.
While minor issues like loose connections can often be repaired, significant internal damage usually requires replacement. Attempting to repair a severely damaged load cell can compromise its accuracy and reliability. It's generally more cost-effective and safer to replace the entire unit.
Load cell drift can be caused by various factors, including:
- Temperature fluctuations
- Mechanical stress or fatigue
- Environmental factors (humidity, chemical exposure)
- Electrical interference
- Natural aging of components
Regular calibration and proper environmental controls can help minimize drift.
The lifespan of a load cell can vary greatly depending on usage and environmental conditions. With proper care and maintenance, high-quality load cells can last 5-10 years or more. However, in harsh environments or high-cycle applications, they may need replacement sooner.
Yes, there are several warning signs that a load cell may be approaching failure:
- Increasing frequency of calibration needs
- Gradual loss of accuracy or precision
- Intermittent readings or signal dropouts
- Visible corrosion or physical damage
- Changes in zero balance or sensitivity
Regular inspections and performance monitoring can help catch these signs early, allowing for planned replacement before complete failure occurs.
