Cranes are essential machinery in various industries, including construction, shipping, and manufacturing. They are designed to lift and move heavy loads, making them invaluable for tasks that require precision and strength. However, with the immense power that cranes wield comes significant responsibility. Ensuring the safety of crane operations is paramount, and one of the critical components that contribute to this safety is the load cell.

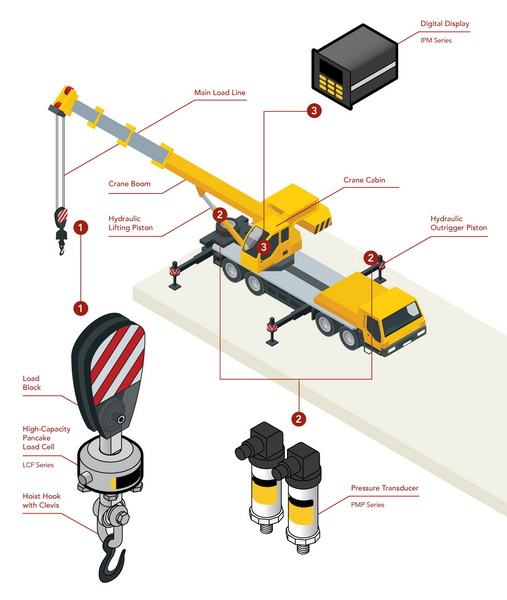

Load cells are sensors that measure weight or force. They convert a mechanical force into an electrical signal that can be quantified. In the context of cranes, load cells are used to monitor the weight of the loads being lifted. This information is crucial for ensuring that cranes operate within their safe lifting capacities.
There are several types of load cells used in cranes:
- Compression Load Cells: These measure the force applied to them when weight compresses them.

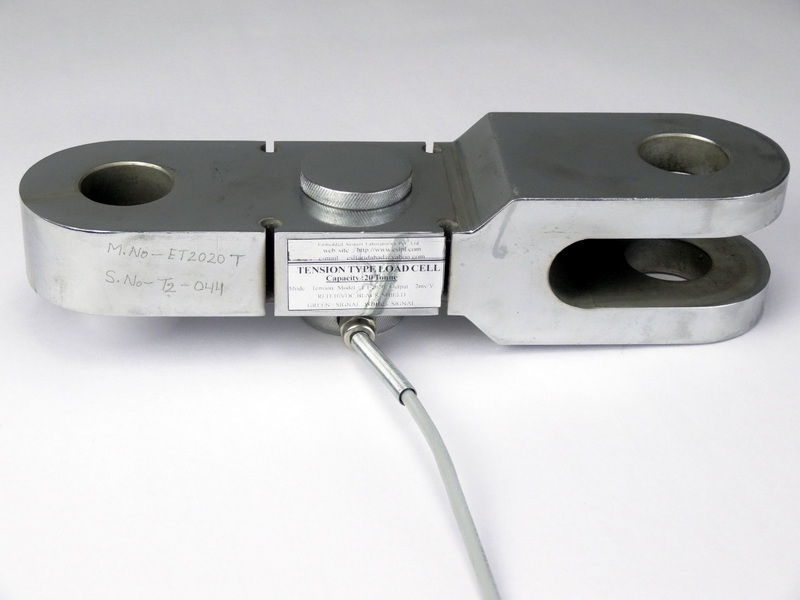

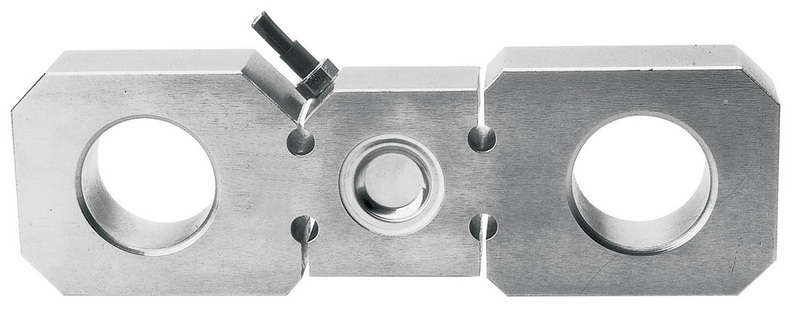

- Tension Load Cells: These measure the force exerted when weight pulls on them.
- Bending Beam Load Cells: These are designed to measure bending forces and are often used in applications where space is limited.
Each type serves a specific purpose and is chosen based on the crane's design and operational requirements.
Load cells play a vital role in enhancing crane safety through various mechanisms:
One of the primary functions of load cells in cranes is to prevent overloading. Cranes have a maximum lifting capacity, and exceeding this limit can lead to catastrophic failures. Load cells continuously monitor the weight of the load being lifted and provide real-time data to operators. If the load exceeds safe limits, alarms can be triggered, preventing potential accidents.
By providing accurate weight measurements, load cells help operators make informed decisions about lifting operations. This efficiency reduces downtime and increases productivity while maintaining safety standards.
Cranes must maintain stability while lifting loads. Load cells help assess whether a load is balanced and within safe limits, reducing the risk of tipping over or losing control during operations.
Many industries have strict regulations regarding crane operations, including weight limits and safety protocols. Load cells ensure compliance with these regulations by providing accurate measurements that can be documented for inspections.
Load cells operate based on principles of physics, primarily using strain gauges to measure deformation. When a load is applied, it causes a deformation in the load cell's structure, which alters its electrical resistance. This change can be measured and converted into a weight reading.
- Strain Gauges: These are thin wires or films that change resistance when stretched or compressed.
- Transducer: Converts mechanical energy into an electrical signal.
- Signal Conditioning Circuit: Amplifies and processes the electrical signal for accurate readings.
Proper installation and maintenance of load cells are crucial for their performance and longevity:
1. Select Appropriate Load Cell Type: Choose based on crane specifications.
2. Mounting: Securely mount the load cell in a location where it can accurately measure the load without interference.
3. Wiring: Connect the load cell to the crane's control system for data transmission.
- Regularly inspect load cells for signs of wear or damage.
- Calibrate load cells periodically to ensure accuracy.
- Keep sensors clean from debris and contaminants that could affect readings.
Load cells are utilized in various crane applications across different industries:
- Construction Sites: Ensuring heavy materials are lifted safely during building projects.
- Shipping Yards: Monitoring container weights to prevent overloading ships.
- Manufacturing Plants: Assisting in assembly lines where precise weight measurements are necessary.
While load cells significantly enhance crane safety, they also face challenges:
- Environmental Factors: Extreme temperatures, humidity, and dust can affect performance.
- Calibration Issues: Inaccurate calibration can lead to erroneous readings.
- Mechanical Failures: Physical damage from impacts or overloads can compromise functionality.
As technology evolves, so do load cell designs and functionalities:
- Wireless Load Cells: These eliminate wiring issues and allow for more flexible installations.
- Smart Sensors: Integration with IoT technology enables real-time monitoring and data analysis for predictive maintenance.
Cranes are powerful machines that require careful operation to ensure safety. Load cells play an integral role in this process by providing accurate measurements of loads being lifted. They help prevent overloading, enhance operational efficiency, improve stability, and ensure compliance with regulations. As technology advances, we can expect even more sophisticated load cell systems that will further enhance crane safety.
A crane load cell is a sensor used to measure the weight or force exerted on a crane during lifting operations. It converts mechanical force into an electrical signal for monitoring purposes.
Load cells continuously monitor the weight of loads being lifted by cranes. If a load exceeds safe limits, they trigger alarms or alerts to prevent accidents.
The most common types include compression load cells, tension load cells, and bending beam load cells, each serving specific functions based on operational requirements.
Load cells should be calibrated periodically depending on usage frequency and environmental conditions; regular checks ensure accuracy in measurements.
Load cells may face challenges such as environmental factors (extreme temperatures), calibration issues leading to inaccurate readings, and potential mechanical failures from impacts or overloads.
