Load cells are essential components in various industries, from manufacturing to aerospace, for measuring force and weight. However, the raw signals produced by load cells are often too weak or noisy to be directly used by data acquisition systems or displays. This is where load cell signal conditioners come into play. In this comprehensive article, we'll explore why load cell signal conditioners are crucial for accurate and reliable measurements.

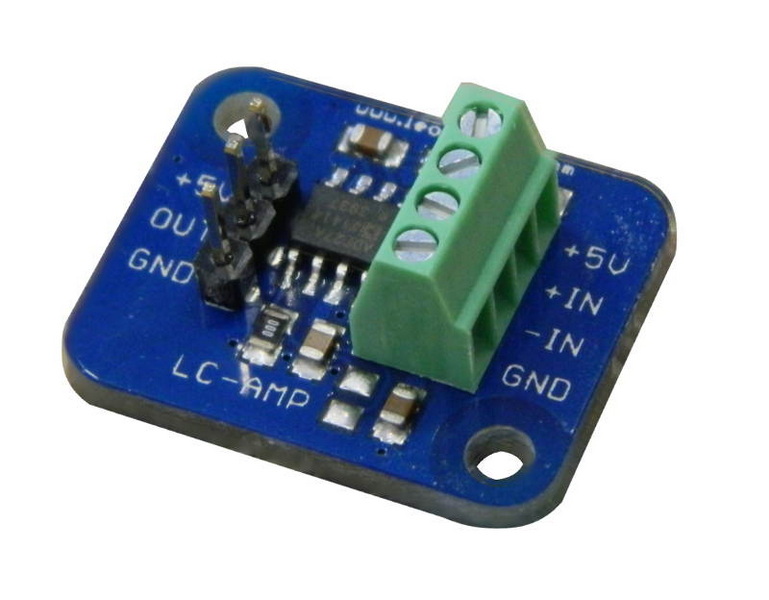

A load cell signal conditioner is an electronic device that processes and amplifies the small electrical signals generated by load cells. It serves as an intermediary between the load cell and the measurement or control system, ensuring that the signal is clean, strong, and compatible with the receiving equipment.
Load cells typically produce output signals in the millivolt range, which are susceptible to interference and noise. Signal conditioners address several critical issues:
1. Amplification: They boost the weak load cell signal to a more usable level.
2. Noise Reduction: They filter out unwanted electrical noise and interference.
3. Standardization: They convert the signal to a standard output format (e.g., 0-10V, 4-20mA).
4. Calibration: They allow for easy calibration and adjustment of the measurement system.

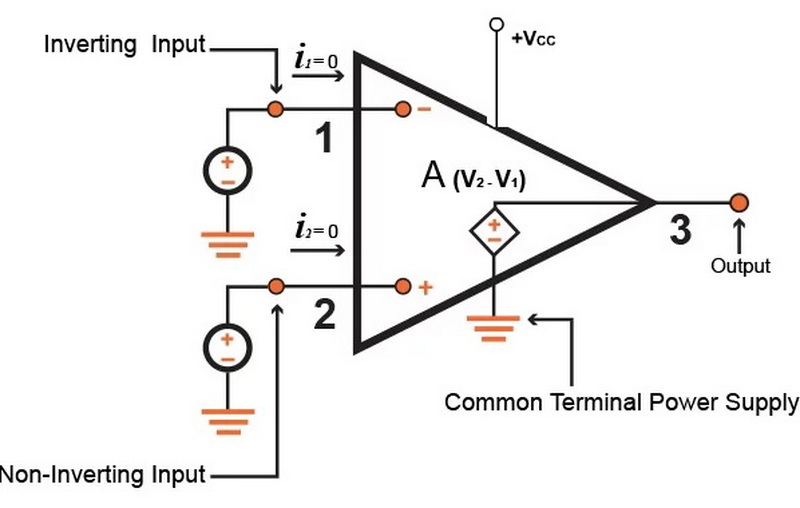

The primary function of a signal conditioner is to amplify the low-level signal from the load cell. This amplification is crucial because:
- It improves the signal-to-noise ratio
- It makes the signal more resistant to electromagnetic interference
- It allows for better resolution in the measurement
Signal conditioners employ various filtering techniques to remove unwanted noise from the load cell signal. This filtering can include:
- Low-pass filters to remove high-frequency noise
- Notch filters to eliminate specific frequencies (e.g., 50/60 Hz power line interference)
- Digital filtering for more advanced noise reduction
Load cells require a stable excitation voltage to operate correctly. Signal conditioners provide this excitation voltage, typically in the range of 5-12V DC. A regulated and stable excitation voltage ensures consistent and accurate measurements.
Some load cells may have a non-linear response to applied force. Signal conditioners can compensate for this non-linearity through:
- Analog circuitry
- Digital linearization algorithms
This linearization ensures that the output signal is directly proportional to the applied force across the entire measurement range.
Load cells can be sensitive to temperature changes. Advanced signal conditioners may include temperature compensation features to maintain accuracy across a wide temperature range.
There are several types of signal conditioners available, each suited for different applications:
1. Analog Signal Conditioners: These provide amplification and basic filtering using analog circuitry.
2. Digital Signal Conditioners: These convert the analog signal to digital form for more advanced processing and offer features like digital filtering and calibration.
3. Programmable Signal Conditioners: These allow users to customize settings and calibration through software interfaces.
4. Wireless Signal Conditioners: These transmit the conditioned signal wirelessly, eliminating the need for long cable runs.
Implementing a signal conditioner in your load cell measurement system offers numerous advantages:
1. Improved Accuracy: By amplifying and cleaning the signal, conditioners help maintain measurement accuracy.
2. Enhanced Resolution: The amplified signal allows for finer resolution in measurements.
3. Increased Noise Immunity: Filtering and proper signal conditioning reduce the impact of electrical noise on measurements.
4. Standardized Outputs: Signal conditioners can provide standardized outputs compatible with various data acquisition systems and PLCs.
5. Simplified Calibration: Many signal conditioners offer easy calibration features, streamlining system setup and maintenance.
6. Flexibility: They allow the use of load cells with different sensitivities and output ranges in the same system.
Choosing the appropriate signal conditioner for your application involves considering several factors:
- Input Range: Ensure the conditioner can handle the output range of your load cell.
- Output Type: Select a conditioner with an output compatible with your data acquisition system (e.g., voltage, current, digital).
- Accuracy Requirements: Choose a conditioner that meets or exceeds your system's accuracy needs.
- Environmental Conditions: Consider factors like temperature range and moisture resistance for industrial applications.
- Additional Features: Determine if you need features like digital filtering, multiple channel inputs, or wireless capabilities.
Proper installation and setup of a load cell signal conditioner are crucial for optimal performance. Here are some key steps:
1. Mounting: Securely mount the signal conditioner in a location protected from environmental factors.
2. Wiring: Carefully connect the load cell to the signal conditioner, ensuring proper shielding and grounding.
3. Power Supply: Use a stable and clean power supply for both the signal conditioner and load cell excitation.
4. Calibration: Follow the manufacturer's instructions for initial calibration and periodic recalibration.
Load cell signal conditioners find use in a wide range of applications across various industries:
1. Industrial Weighing: In scales, hoppers, and conveyor belt weighing systems.
2. Process Control: For precise material dosing and batch control in manufacturing.
3. Aerospace and Automotive: In force measurement during structural testing and component evaluation.
4. Medical Devices: For accurate force measurement in rehabilitation equipment and prosthetics.
5. Research and Development: In laboratories for precise force and weight measurements in experiments.
As technology advances, we can expect to see several trends in load cell signal conditioning:
1. Increased Integration: More signal conditioners will likely be integrated directly into load cells, creating "smart" sensors.
2. Wireless Capabilities: The adoption of wireless signal conditioners will continue to grow, offering more flexibility in system design.
3. IoT Integration: Signal conditioners will increasingly offer connectivity features for Internet of Things (IoT) applications.
4. Advanced Digital Processing: More sophisticated digital signal processing techniques will be employed for even better noise reduction and accuracy.
To ensure long-term reliability of your load cell measurement system, regular maintenance of signal conditioners is essential. This includes:
- Periodic calibration checks
- Inspection of wiring and connections
- Cleaning of any vents or cooling surfaces
- Firmware updates (for digital signal conditioners)
Common troubleshooting steps for signal conditioner issues include:
1. Checking power supply stability
2. Verifying load cell connections
3. Inspecting for environmental factors (e.g., temperature, vibration)
4. Running built-in diagnostic tests (if available)
Load cell signal conditioners play a vital role in ensuring accurate and reliable force and weight measurements across a wide range of applications. By amplifying weak signals, reducing noise, and providing standardized outputs, these devices bridge the gap between load cells and data acquisition systems. As technology continues to advance, signal conditioners will evolve to offer even greater precision, flexibility, and integration capabilities.
Whether you're working in industrial weighing, process control, or cutting-edge research, understanding the importance and functionality of load cell signal conditioners is crucial for achieving optimal measurement results. By carefully selecting, installing, and maintaining the right signal conditioner for your application, you can significantly enhance the performance and reliability of your load cell-based measurement systems.
The main purpose of a load cell signal conditioner is to amplify and process the weak electrical signals generated by load cells, making them suitable for use with data acquisition systems or displays. It also helps in reducing noise, standardizing outputs, and improving overall measurement accuracy.
The calibration frequency for a load cell signal conditioner depends on various factors, including the application, environmental conditions, and manufacturer recommendations. Generally, it's advisable to perform a calibration check at least once a year, or more frequently in critical applications or harsh environments.
Many signal conditioners are designed to work with a range of load cell types and sensitivities. However, it's important to ensure that the signal conditioner's input range and excitation voltage are compatible with the specific load cell being used. Some advanced signal conditioners offer programmable settings to accommodate different load cell characteristics.
Digital signal conditioners offer several advantages over analog types, including:
- More advanced filtering and signal processing capabilities
- Greater flexibility in calibration and configuration
- Better temperature stability and long-term accuracy
- Easier integration with digital control systems and data logging equipment
- Potential for remote diagnostics and configuration
Wireless signal conditioners convert the load cell signal to a digital format and then transmit it wirelessly to a receiver connected to the data acquisition system. The main benefits include:
- Elimination of long cable runs, reducing installation costs and potential for signal degradation
- Increased flexibility in sensor placement and system reconfiguration
- Reduced risk of cable damage in harsh or mobile environments
- Potential for easier expansion of measurement points in an existing system
