In the realm of web processing, achieving consistent quality and minimizing waste are paramount. From printing and converting to coating and laminating, the precision with which materials are handled directly impacts the final product and the efficiency of the operation. At the heart of optimized web processing lies tension control, and MAGPOWR tension sensors stand as a critical component in achieving superior results[6]. This article delves into why incorporating a MAGPOWR tension sensor into your web processing system is not just an upgrade, but a necessity for modern manufacturing.
Web tension refers to the force applied to a web material as it moves through a processing line. Maintaining the correct tension is crucial for preventing a host of problems, including:
- Web breaks: Excessive tension can cause the material to snap, leading to downtime and material loss[4].
- Registration errors: Inconsistent tension can cause the web to stretch or contract unevenly, resulting in misaligned printing or converting[4].
- Wrinkling and Folding: Slack tension can lead to these defects, especially in flexible materials[4].
- Uneven Coating: In coating applications, inconsistent tension can cause variations in coating thickness[4].

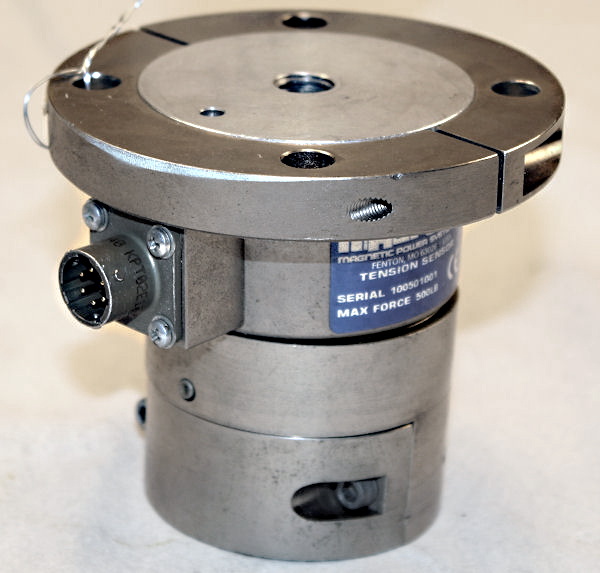

Tension sensors, also known as load cells, are devices that measure the force exerted by the web material[1][2]. This measurement is then used to provide feedback to a control system, which adjusts the braking or driving force on the unwind and rewind stands to maintain the desired tension[1].
MAGPOWR has been a leader in the tension control industry for over 45 years, engineering robust and accurate sensors, controls, and torque devices[6]. Their tension sensors are designed to provide reliable feedback, enabling precise control and optimization of web tension in a wide variety of applications[9].
- High Accuracy: MAGPOWR tension sensors utilize foil strain gauges to provide precise tension measurement, ensuring consistent control[2].
- Temperature Stability: Designed with a low temperature drift rating, MAGPOWR TS Load Cells maintain accuracy even with temperature fluctuations[2].
- Durability: MAGPOWR load cells are built to withstand demanding industrial environments[2].
- Versatility: Suitable for unwind, rewind, and intermediate web processing applications[9].
- Integration: Compatible with a range of MAGPOWR tension controllers and accessories[1].
MAGPOWR offers a variety of tension sensor models to suit different applications and requirements[2]:

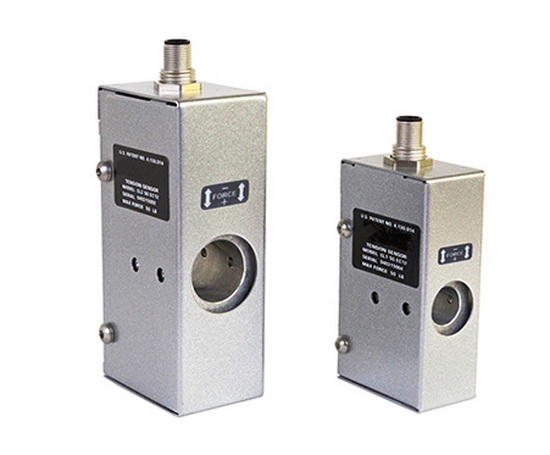

- TS Load Cells: Provide consistent tension control, resistant to temperature changes, and measure tension in various web processing applications[2][9].
- GTS Global Load Cells: Designed for precise measurement and control of tension on a roll with stability and accuracy[2][9].
- CL Cantilevered Load Cells: Cost-effective with the ability to accept almost any roll and shaft assembly[9].
- TSU Under Pillow Block Load Cells: Constructed to withstand mill duty, accurately measure tension forces, and can be bolted under roll support bearings[2].
MAGPOWR offers complete tension control systems designed to work seamlessly with their tension sensors. These systems include controllers, amplifiers, and accessories that provide comprehensive control over web tension[1][9].

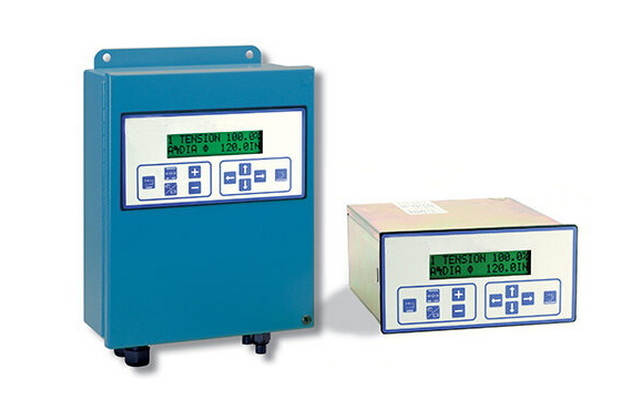

MAGPOWR tension controllers are designed for ease of use and flexibility, offering a range of features to optimize tension control[1]:
- Cygnus Tension Control: Compact with advanced, user-friendly functions and on-screen prompts[1][2].
- VERSATEC Versatile Tension Control: Multi-function automatic tension controller with selectable operating modes and an ultrasonic sensor to measure distance and roll diameter[1][2].
- Spyder Tension Control: Cost-effective, capable of controlling web tension in various applications, and can be viewed on a web browser for remote access[1][2].
MAGPOWR tension amplifiers ensure accurate tension measurement in any moving web, wire, or strand[2]:
- TSA and LCA Load Cell Amplifiers: Designed for optimal performance, especially in drift and linear performance[2].
- DLCA and DLCA-NET Digital Load Cell Amplifiers: Powerful and versatile amplification in a compact enclosure, easy to use, and offer weightless load cell calibration[9].
MAGPOWR offers a wide range of accessories and meters to keep your system running smoothly[9]:
- Digital tension meters for monitoring tension output[5].
- Ultrasonic sensors for increased accuracy and control[9].
- Power supplies for clutches and brakes to give you more control over your clutches and brakes[5].
Integrating MAGPOWR tension sensors into your web processing system is a straightforward process, especially when working with compatible MAGPOWR controllers and accessories.
1. Assess Your Needs: Evaluate your web processing application to determine the appropriate tension range, material properties, and control requirements.
2. Select the Right Sensor: Choose a MAGPOWR tension sensor model that matches your application needs in terms of accuracy, load capacity, and environmental conditions.
3. Install the Sensor: Mount the tension sensor according to MAGPOWR's guidelines, ensuring proper alignment and mechanical support.
4. Connect to the Controller: Connect the sensor to a compatible MAGPOWR tension controller, following the wiring diagrams and configuration instructions.
5. Calibrate the System: Perform a calibration procedure to ensure accurate tension readings and proper system response.
6. Tune the Control Loop: Optimize the control loop parameters to achieve stable and responsive tension control.
MAGPOWR tension sensors are used in a wide range of web processing applications, including[5]:
- Printing: Maintaining consistent tension is critical for accurate registration and preventing web breaks[4].
- Converting: In applications such as slitting, rewinding, and laminating, precise tension control ensures quality and minimizes waste[4].
- Coating: Consistent tension ensures uniform coating thickness and prevents defects[4].
- Textiles: Tension control is essential for handling delicate fabrics and preventing stretching or tearing.
- Paper Manufacturing: Ensuring consistent paper quality and preventing web breaks during production.
Investing in MAGPOWR tension sensors offers a multitude of benefits for your web processing system[5]:
- Improved Product Quality: Consistent tension control leads to fewer defects and higher-quality products[4].
- Reduced Waste: Minimizing web breaks, registration errors, and other tension-related problems reduces material waste[4].
- Increased Efficiency: Optimized tension control allows for higher processing speeds and reduced downtime.
- Enhanced Productivity: Consistent and reliable operation leads to increased overall productivity.
- Cost Savings: Reduced waste, increased efficiency, and improved productivity translate into significant cost savings.
- A printing company reduced registration errors by 30% after implementing MAGPOWR tension sensors on their printing presses.
- A converting plant decreased web breaks by 50% after installing MAGPOWR tension control systems on their slitting machines.
- A coating facility improved coating uniformity by 20% after integrating MAGPOWR tension sensors into their coating line.
In conclusion, MAGPOWR tension sensors are an indispensable component for any web processing system that demands precision, efficiency, and reliability. By providing accurate tension measurement and enabling closed-loop control, MAGPOWR tension sensors empower manufacturers to optimize their processes, reduce waste, improve product quality, and achieve significant cost savings. Investing in MAGPOWR tension sensors is an investment in the future of your web processing operation.
A tension sensor, also known as a load cell, is a device that measures the force exerted by a web material. MAGPOWR tension sensors use foil strain gauges to provide precise tension measurement[2]. The sensor outputs a signal proportional to the measured force, which is then used by a tension controller to adjust the braking or driving force on the unwind and rewind stands[1].
MAGPOWR offers a variety of tension sensor models to suit different applications, including TS Load Cells, GTS Global Load Cells, CL Cantilevered Load Cells, and TSU Under Pillow Block Load Cells[2][9]. Each type offers unique features and benefits to meet specific needs.
Choosing the right MAGPOWR tension sensor depends on several factors, including the tension range, material properties, web width, and environmental conditions. It is important to consult with a MAGPOWR representative or tension control specialist to determine the most suitable sensor for your specific application.
While MAGPOWR tension sensors are designed to work seamlessly with MAGPOWR controllers, they can also be used with other brands of tension controllers. However, compatibility may vary, and it is essential to ensure that the sensor output signal matches the controller input requirements.
MAGPOWR tension sensors are designed for long-term reliability and require minimal maintenance. However, it is important to periodically inspect the sensor for any signs of damage or wear. Regular calibration is also recommended to ensure continued accuracy.
