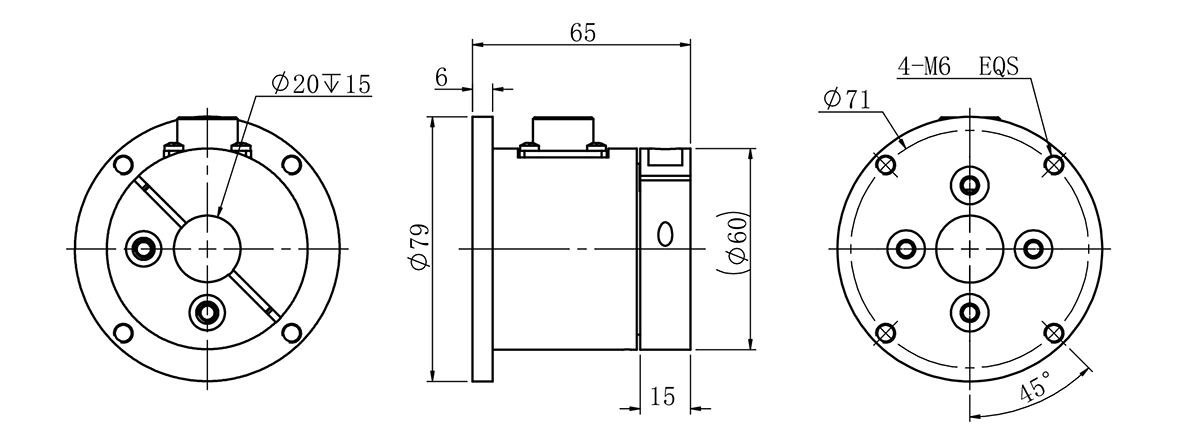

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

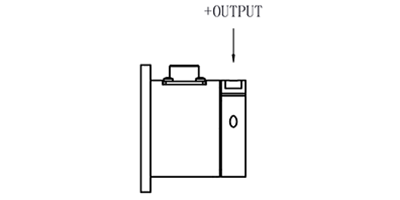

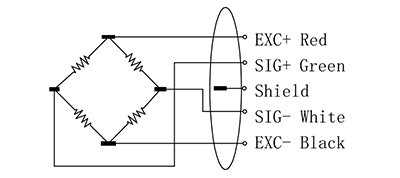

| Load Direction | Wiring |
 |  |
| Specifications |
Specification | Technique |
Capacity | 10~500N |
Sensitivity | 2.0±1.0mV/V |
Zero balance | ±0.04mV/V |
Creep(30min) | ≤0.5%F.S. |
Non-linearity | ≤0.5%F.S. |
Hysteresis | ≤0.5%F.S. |
Repeatability | ≤0.05%F.S. |
Input impedance | 380±30Ω |
Output impedance | 350±10Ω |
Temp. effect on output | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Insulation resistance | ≥2000MΩ/100V(DC) |
Recommended excitation | 5~10V |
Maximum excitation | 15V |
Operating temp. range | -20~+60℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
| Cable Size | Φ5mmX3000mm |
| Material | Aluminium Alloy |
| Function Feature |
▶ Capable of accurately measuring material tension and providing accurate data.
▶ Capable of responding quickly to changes in tension and monitoring the state of material tension in real time.
▶ The sensor structure is designed to be stable and able to maintain accurate measurement results for a long time.
▶ Adopting wear-resistant materials and corrosion-resistant design, it has a long service life.
▶ Can be flexibly installed on different equipment, applicable to a variety of processes.
| Delivery Configurations |
