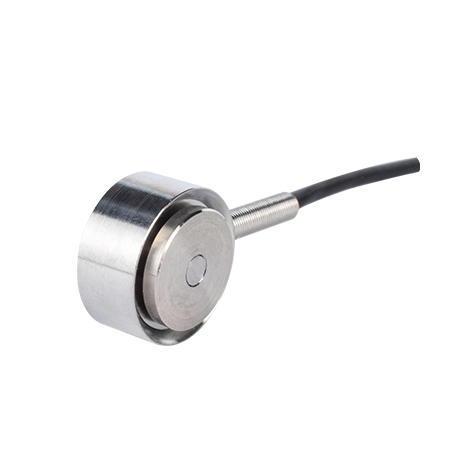

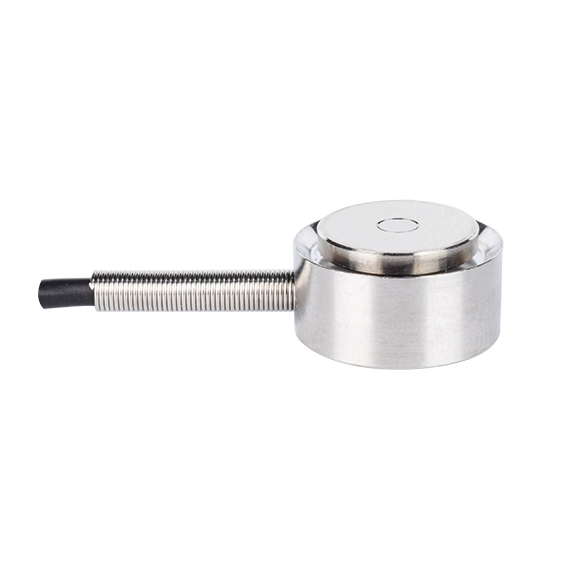

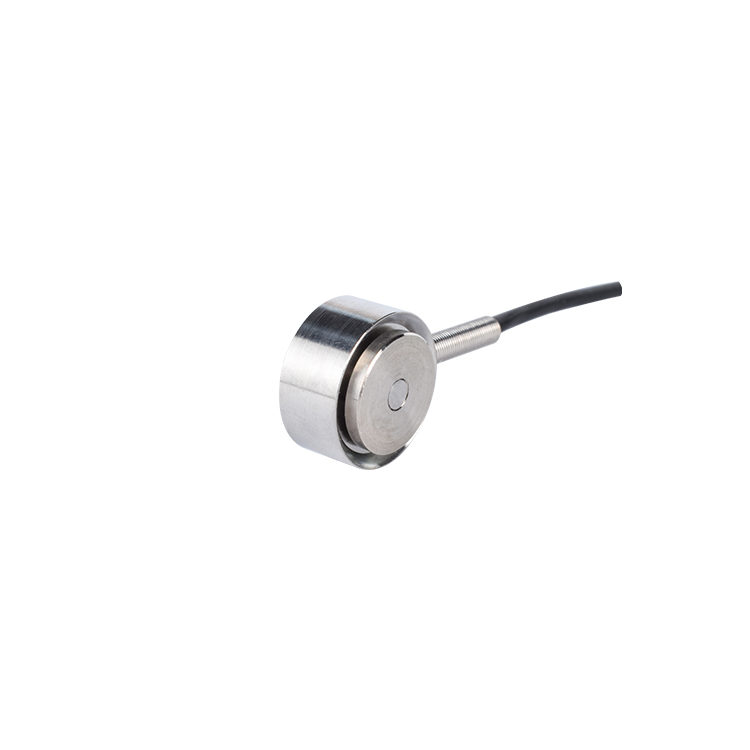

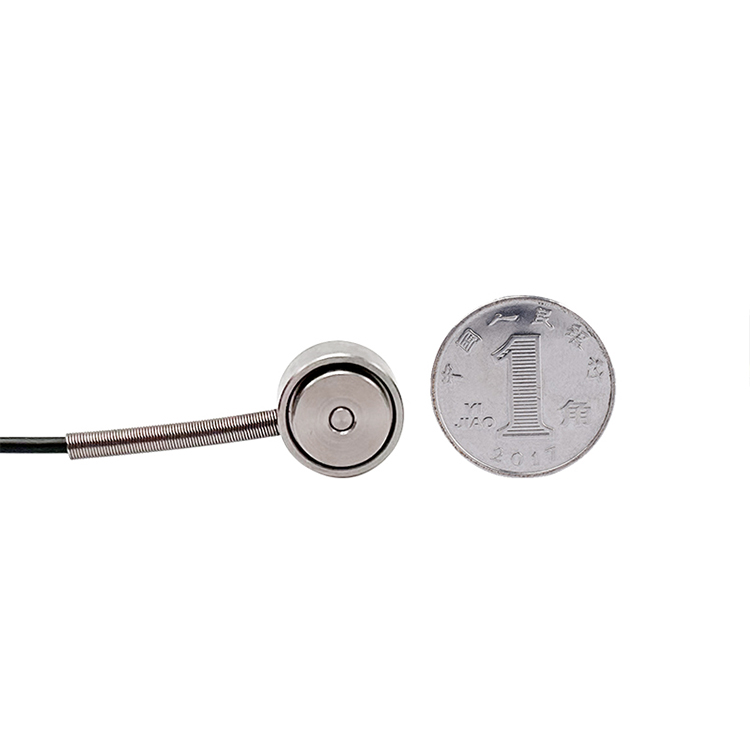

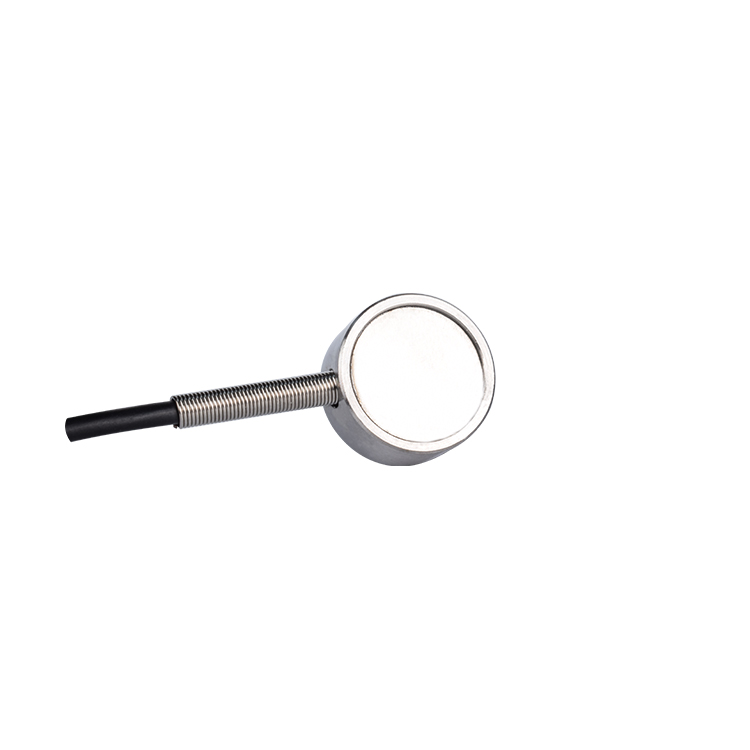

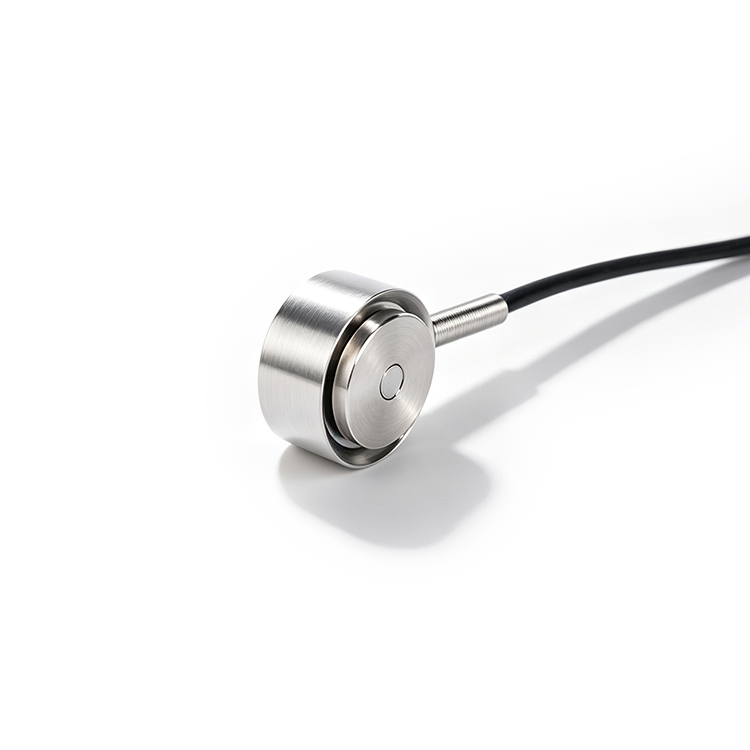

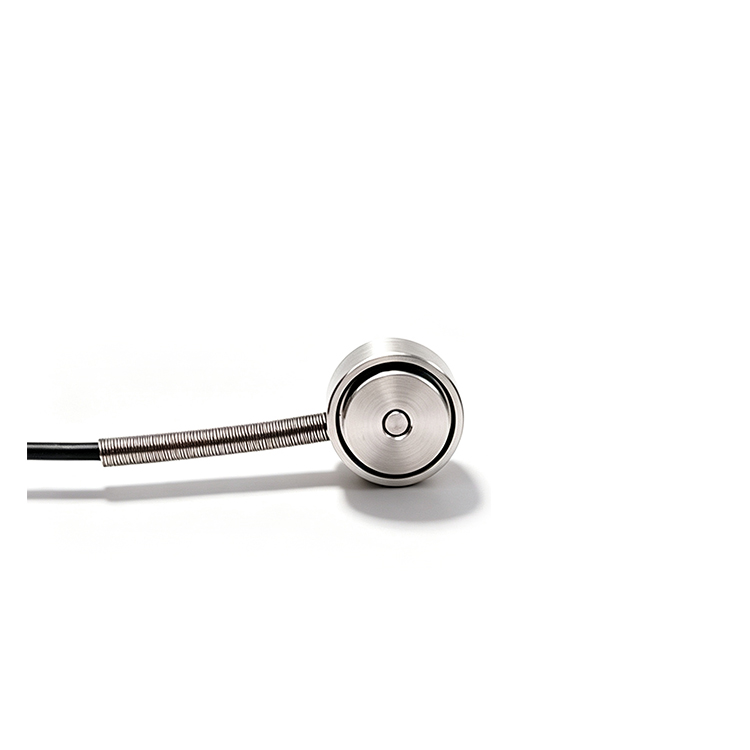

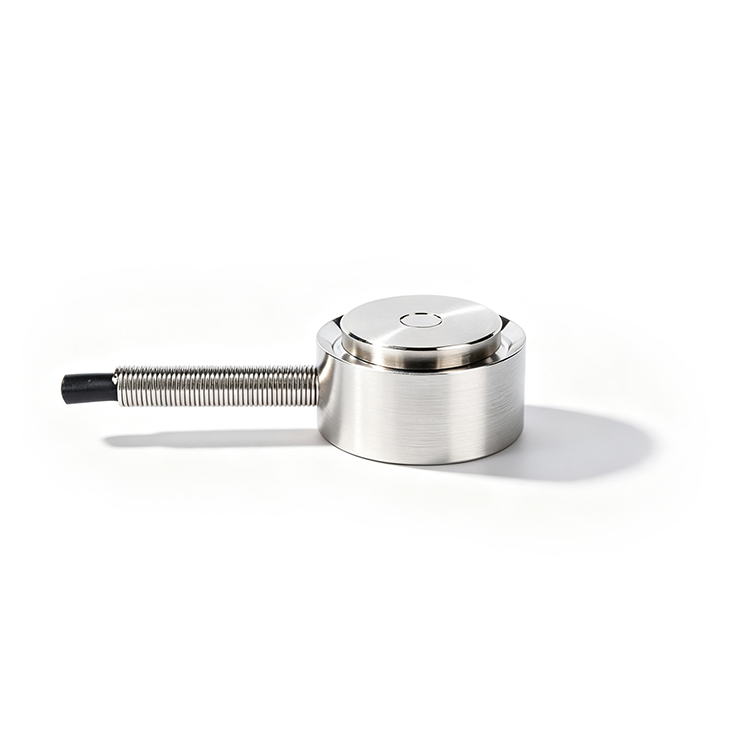

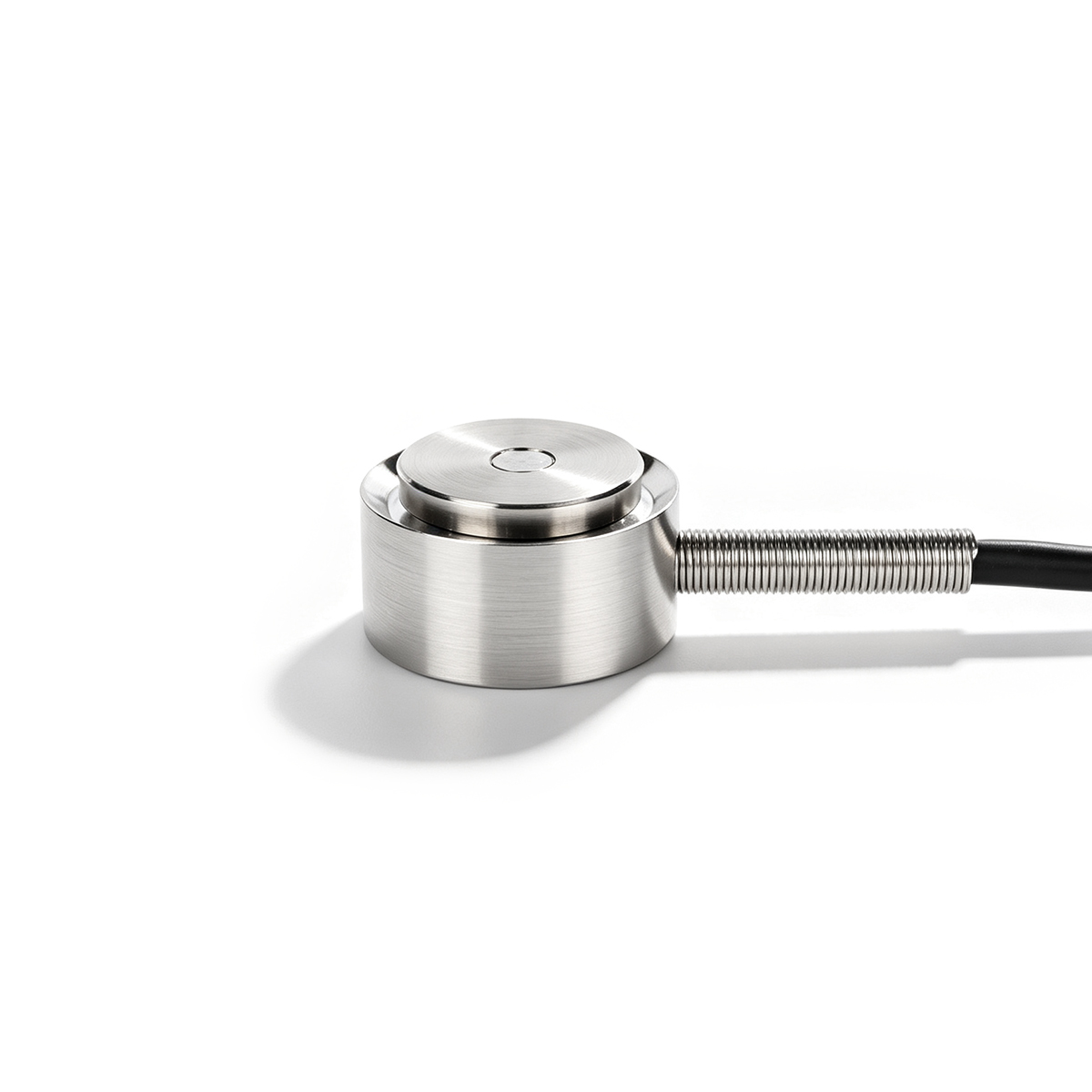

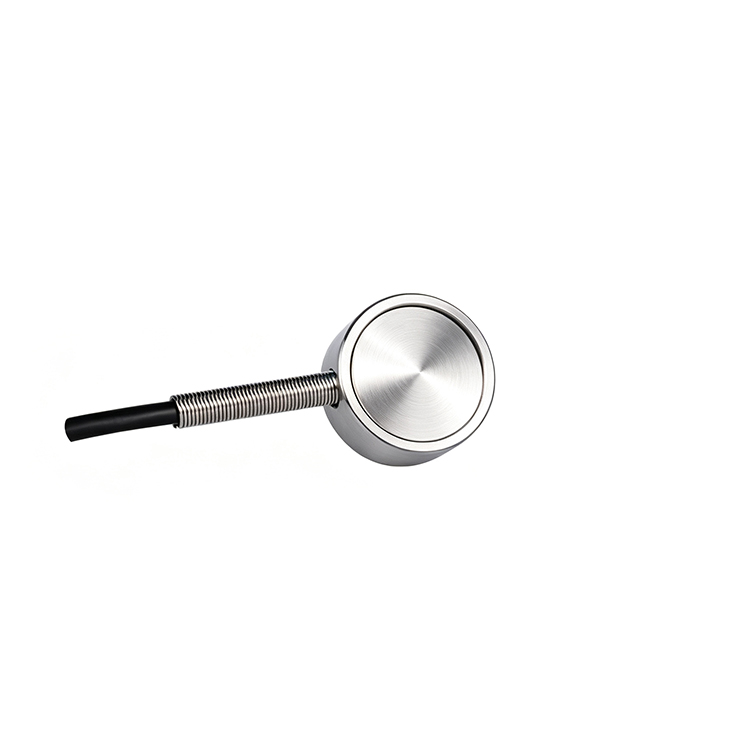

Flat Press-fit Load Cell

Capacity

20,50,70kg

Sensitivity

1.5±30%mV/V

Zero balance

±2%mV/V

Creep

≤0.1%F.S.

Non-linearity

≤0.5%F.S.

Hysteresis

≤0.5%F.S.

Repeatability

≤0.3%F.S.

Input impedance

800~1100Ω

Output impedance

800~1100Ω

Temp. effect on output

0.1%F.S./10℃

Temp. effect on zero

0.1%F.S./10℃

Insulation resistance

≥5000MΩ/100V(DC)

Recommended excitation

5~12V

Maximum excitation

15V

Compensated temp. range

-10~60℃

Operating temp. range

-20~80℃

Safe overload

150%F.S.

Ultimate overload

200%F.S.

Cable size

Φ2x3m

Weight

0.1kg

Material

Stainless steel
