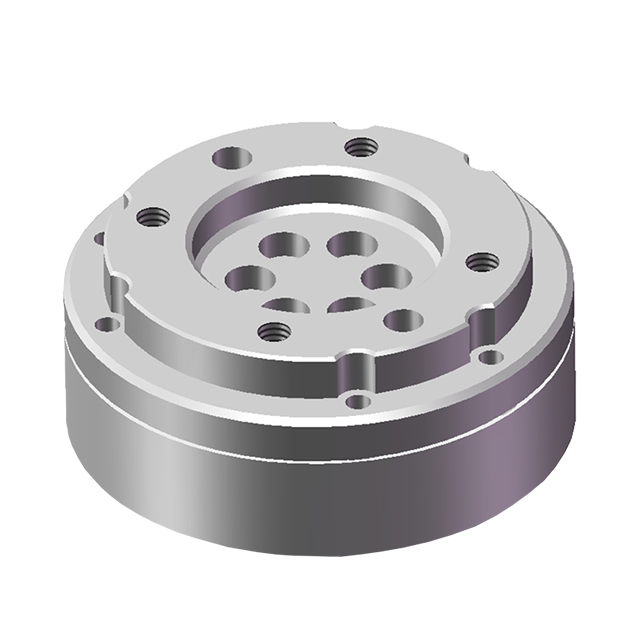

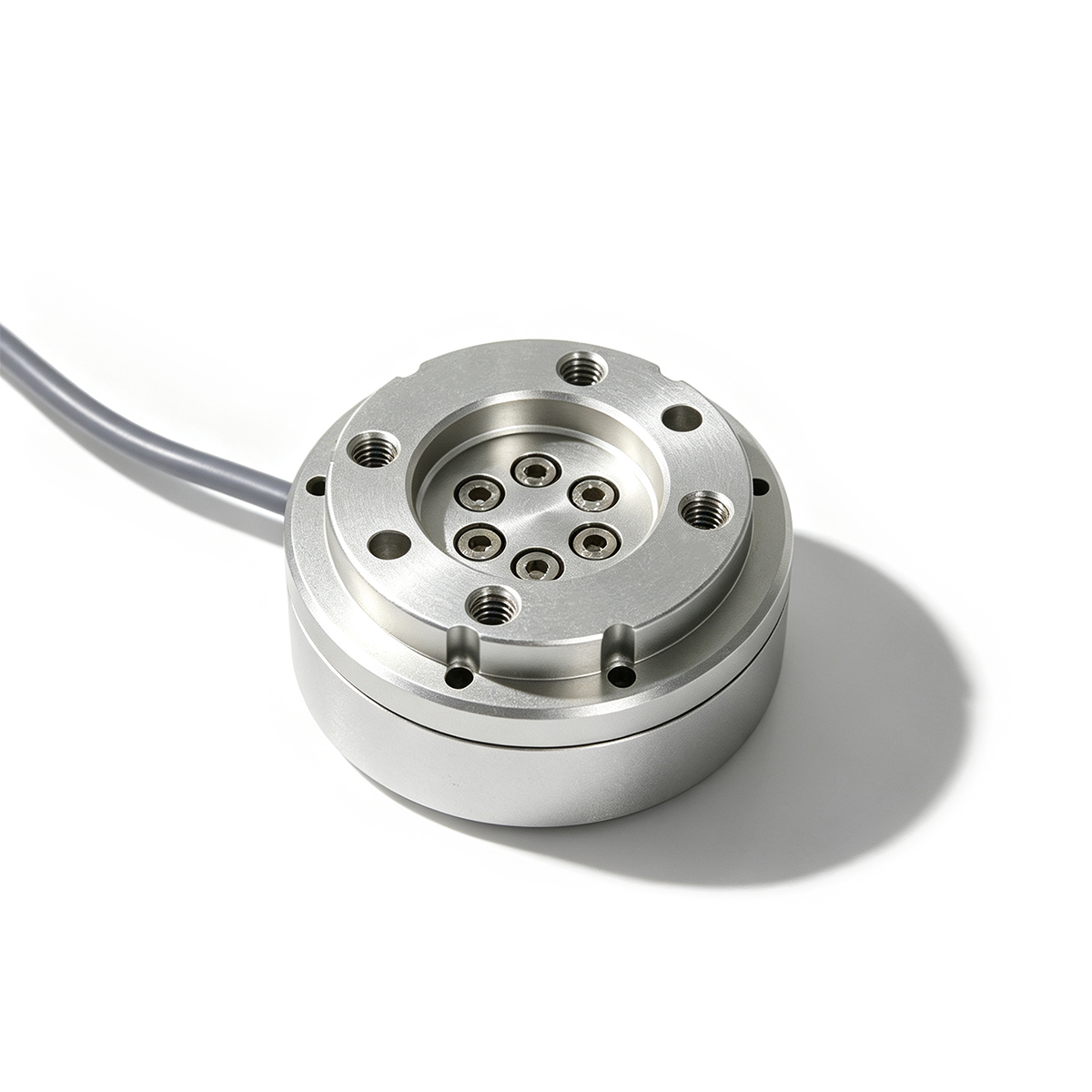

FA7155 Series
FIBOS

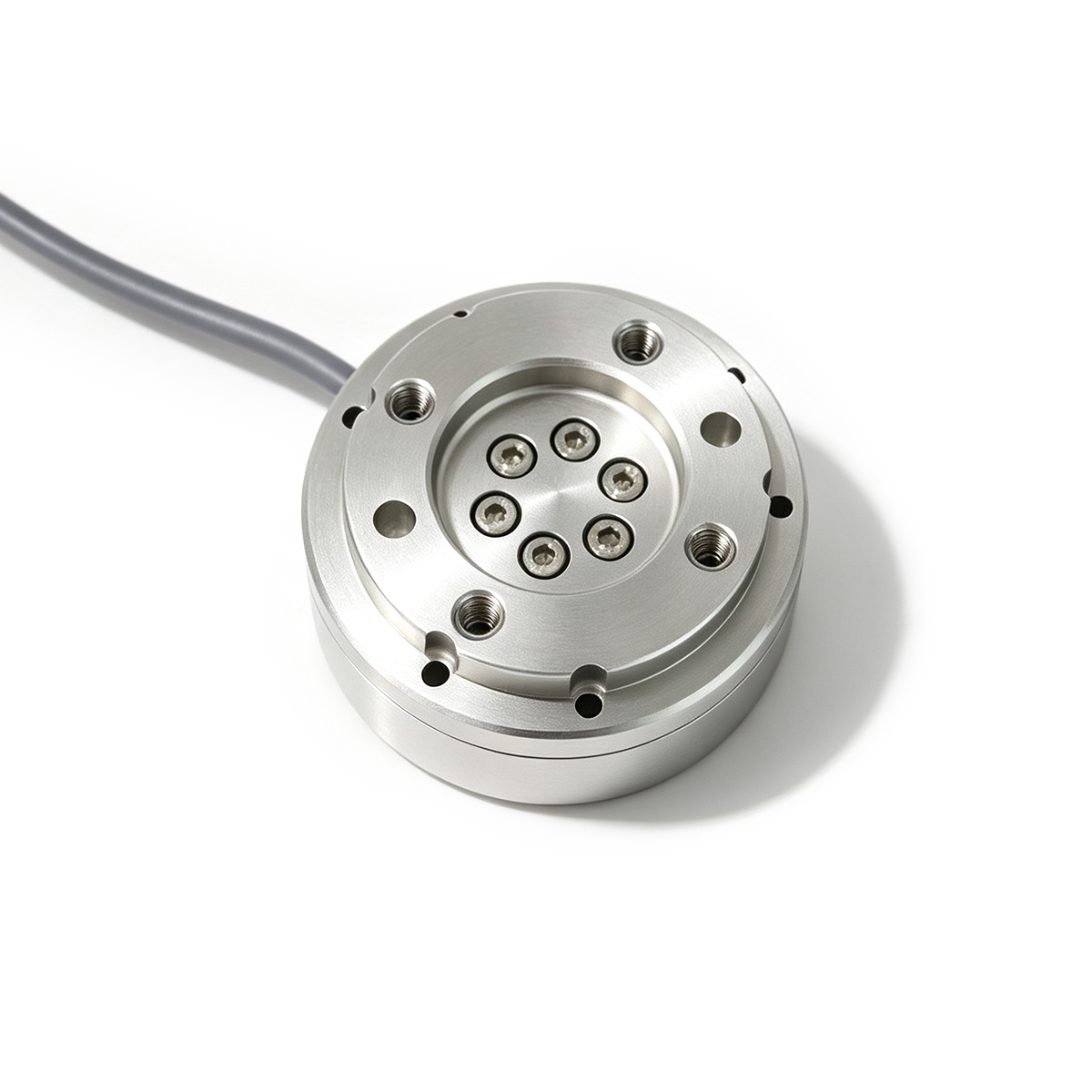

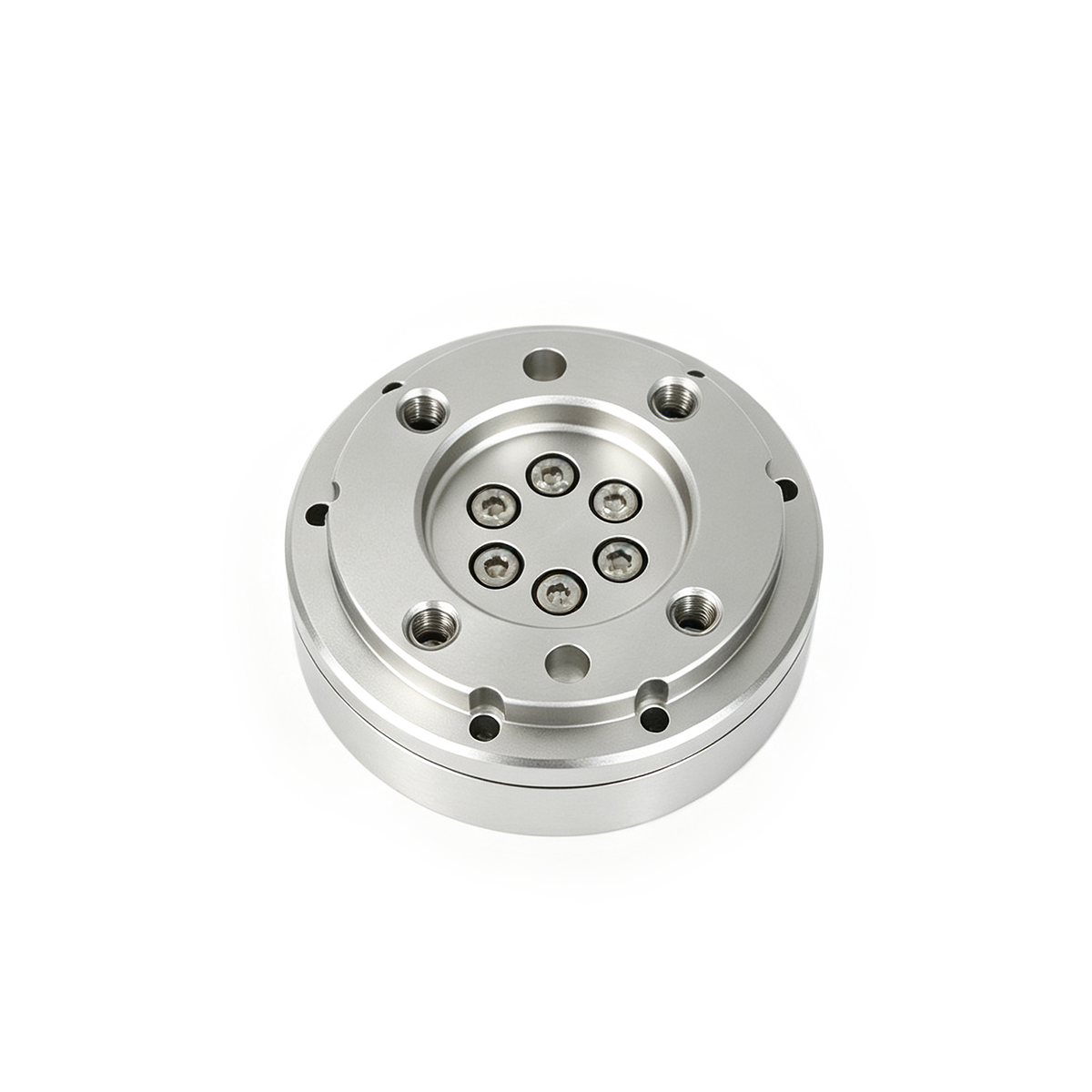

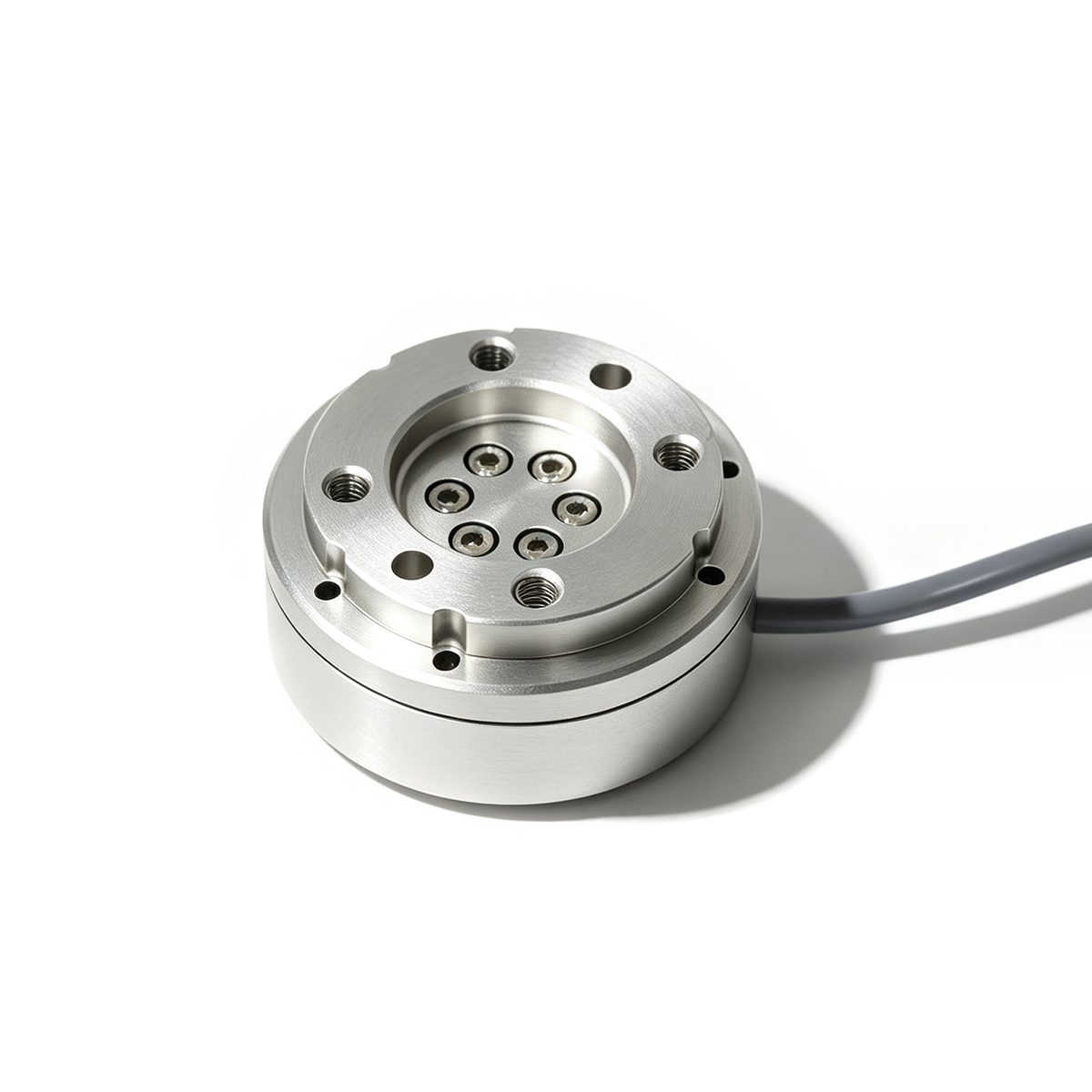

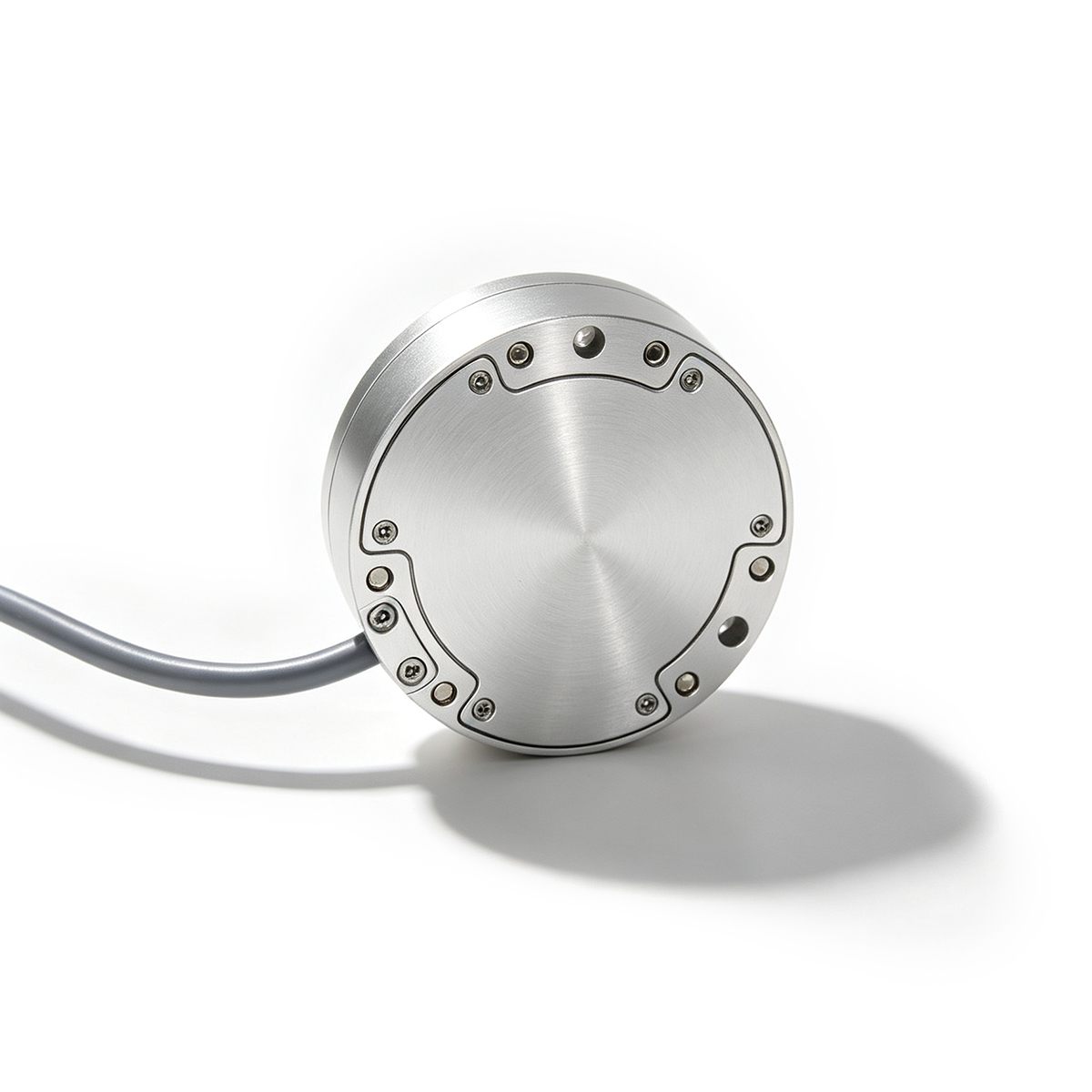

Six-axis force sensor Product Description |
High signal-to-noise ratio data acquisition system
Robust construction with excellent durability
Wide range of interfaces for versatile applications, including software
Wide measurement range and ultra-high strength

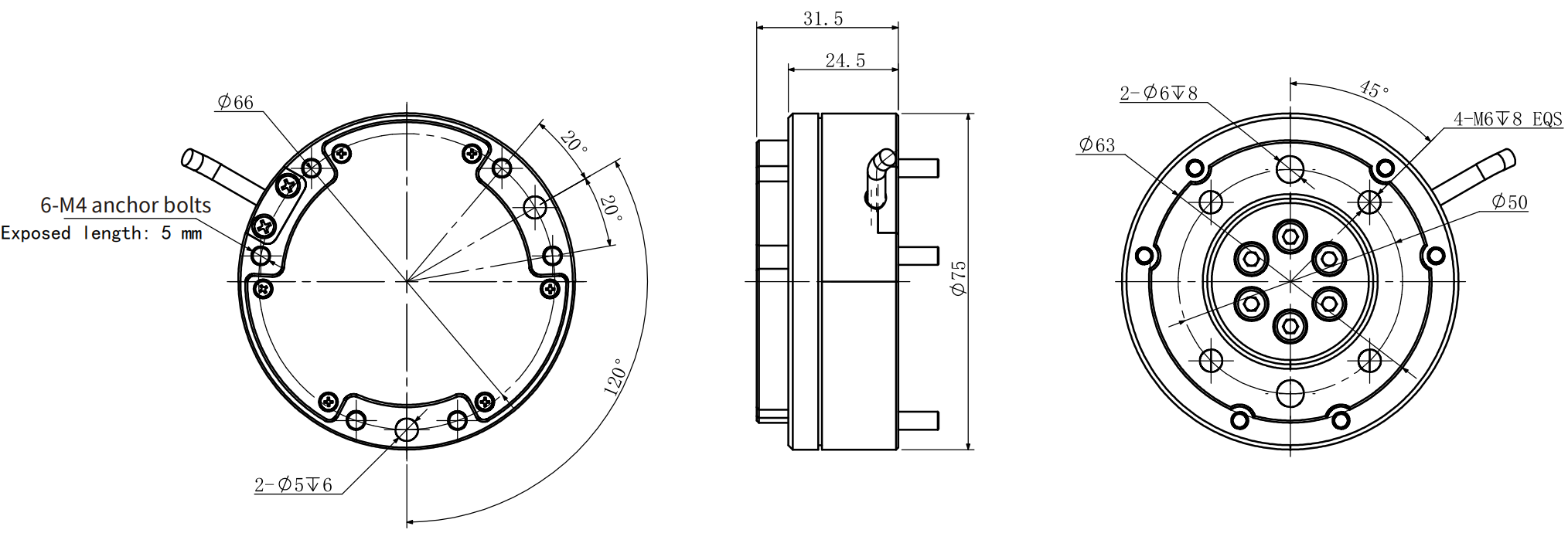

Six-axis force sensor Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Six-axis force sensor Specifications |
Model | FA7155A | FA7155B | FA7155C | FA7155D | |
| Fx range | N | 150 | 200 | 300 | 400 |
| Fy range | N | 150 | 200 | 300 | 400 |
| Fz range | N | 150 | 200 | 300 | 400 |
| Mx range | Nm | 5.5 | 7.5 | 13 | 20 |
| My range | Nm | 5.5 | 7.5 | 13 | 20 |
| Mz range | Nm | 5.5 | 7.5 | 13 | 20 |
| Diameter | mm | 75 | 75 | 75 | 75 |
| Height | mm | 31.5 | |||
| Weight | kg | ≤0.3 | |||
| Material | Aluminium alloy | ||||
| Overload capacity | %FS | 300 | |||
| Resolution | %FS | 0.03 | |||
| Accuracy | %FS | 0.5 | |||
| Repeatability | %FS | 0.1 | |||
| Sampling frequency | Hz | 500–1000 (customisable) | |||
| Supply voltage | VDC | 12–48 (customisable) | |||
| Communication interface | RS485/CAN-FD/EtherCAT (customisable) | ||||
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |

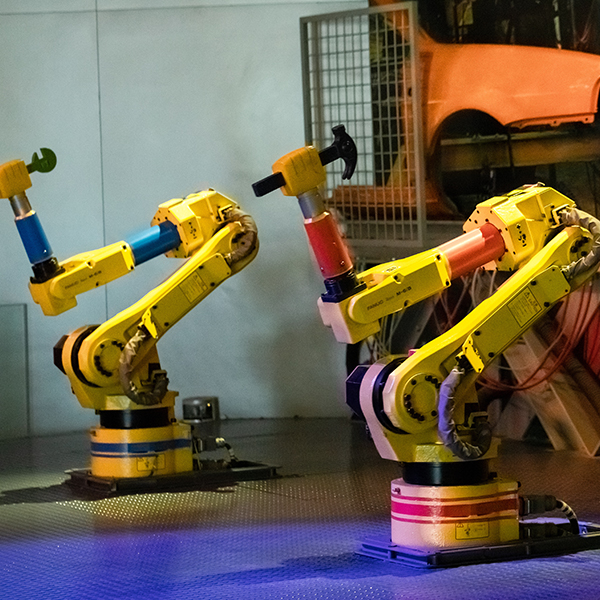

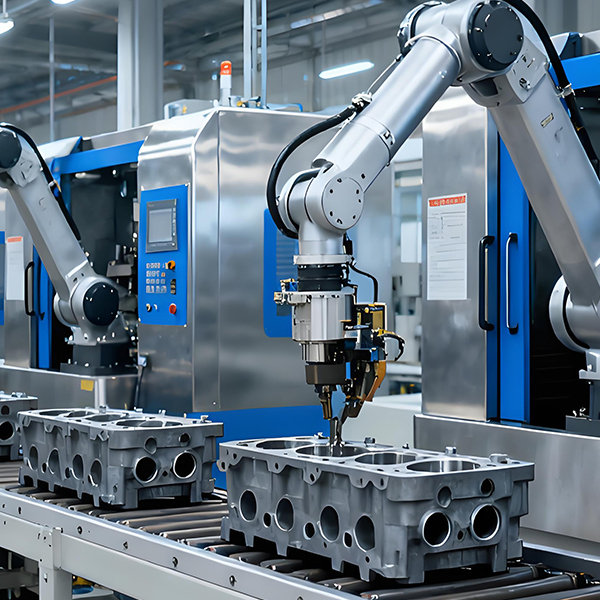

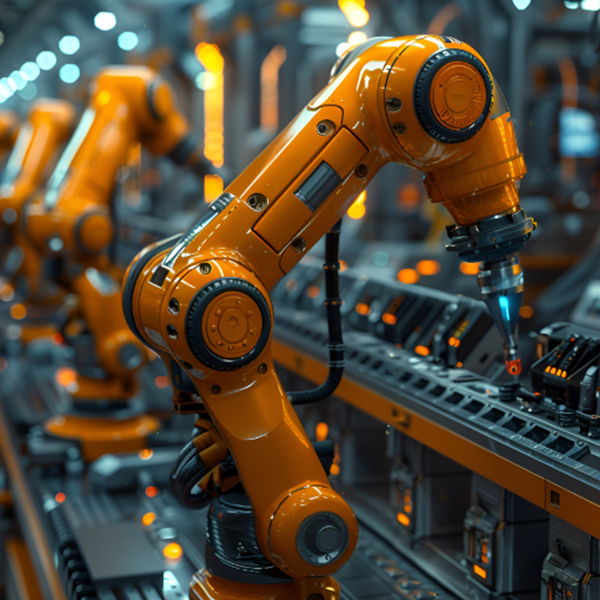

Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: It is a 6-axis multi-dimensional force/torque sensor that simultaneously measures 3-axis forces (Fx, Fy, Fz) and 3-axis torques (Mx, My, Mz).
A: Ultra-high precision with ≤0.03%FS resolution, ≤0.5%FS accuracy, and ≤0.1%FS repeatability for reliable dynamic measurements.
A: 4 standard models with force ranges from 150N to 400N and torque ranges from 5.5Nm to 20Nm, customizable for special needs.
A: Yes. It supports multiple industrial protocols (RS485, CAN-FD, EtherCAT) and comes with dedicated software for real-time data visualization.
A: Ultra-compact (75mm diameter, 31.5mm height) and lightweight (≤0.3kg), ideal for robot end-effectors and space-limited applications.
A: Yes. High-strength aluminum alloy body with 300%FS overload protection, ensuring long-term reliability in harsh industrial environments.
A: Wide 12~48VDC power input, adjustable sampling rate from 500~1000Hz (customizable) for dynamic testing.
