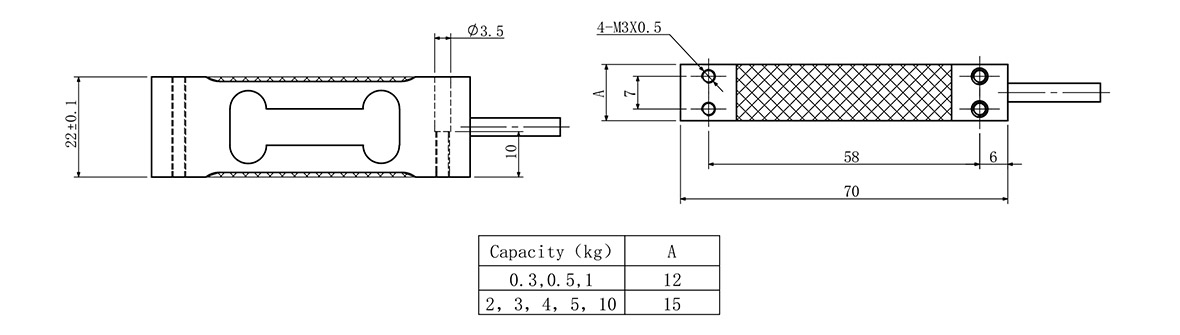

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

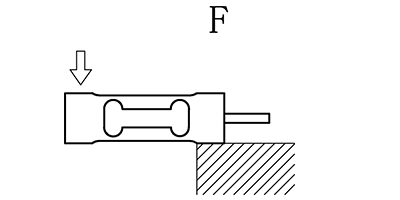

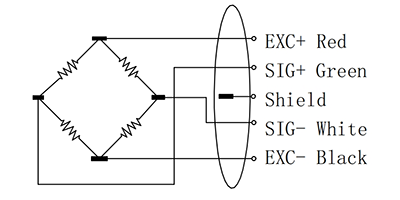

| Load Direction | Wiring |
 |  |
| Specifications |
Specifications | Technique |
Capacity | 0.3,0.5,1,2,3,5,10kg |
Sensitivity | 1.0±10%mV/V 2.0±10%mV/V |
Zero balance | ±0.02%mV/V |
| Creep | 0.02%F.S. |
Non-linearity | 0.02%F.S. |
Hysteresis | 0.02%F.S. |
Repeatability | 0.02%F.S. |
Input impedance | 410±15Ω |
Output impedance | 350±5Ω |
Temp. effect on output | 0.02%F.S./10℃ |
Temp. effect on zero | 0.03%F.S./10℃ |
Insulation resistance | ≥5000MΩ/50V(DC) |
Recommended excitation | 5~12VDC |
Maximum excitation | 15VDC |
Compensated temp. range | -10~40℃ |
Operating temp. range | -20~60℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ3X0.3m |
| Material | Aluminium Alloy |

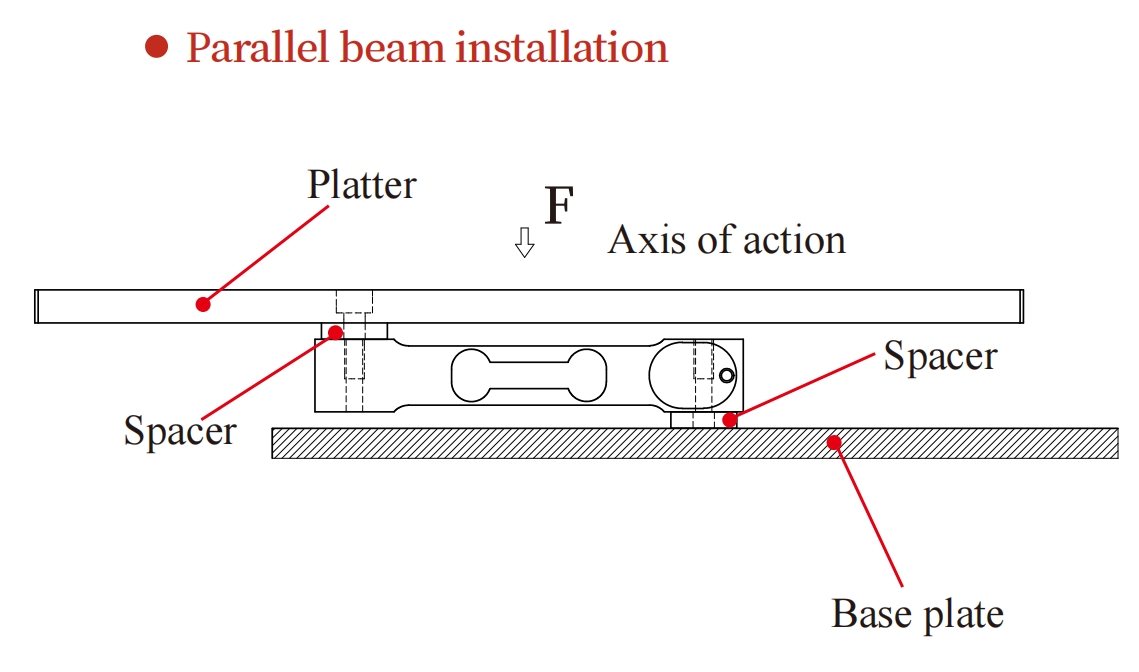

| Installation |
| Delivery Configurations |
