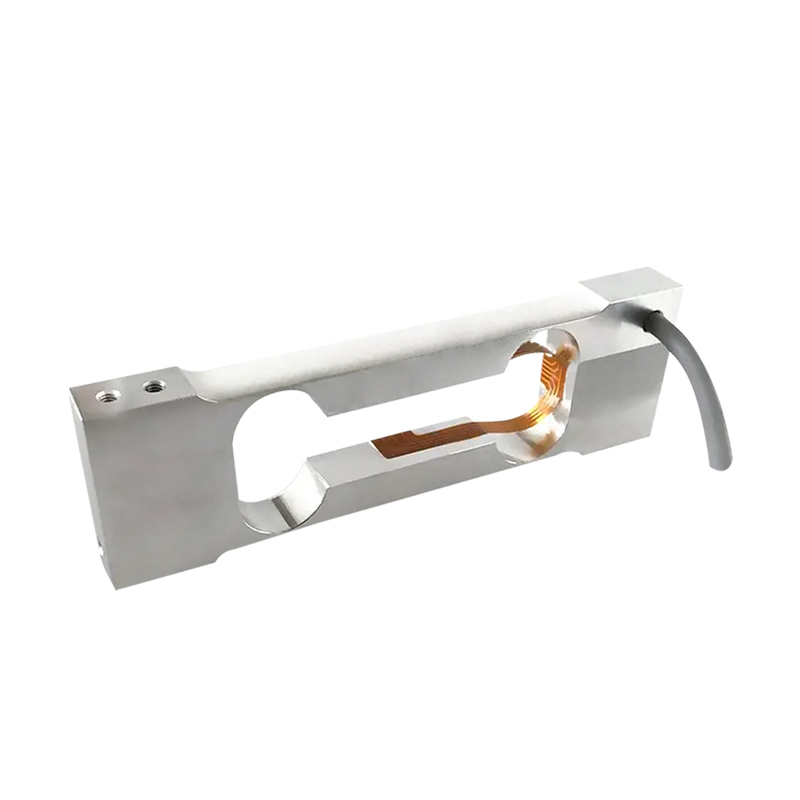

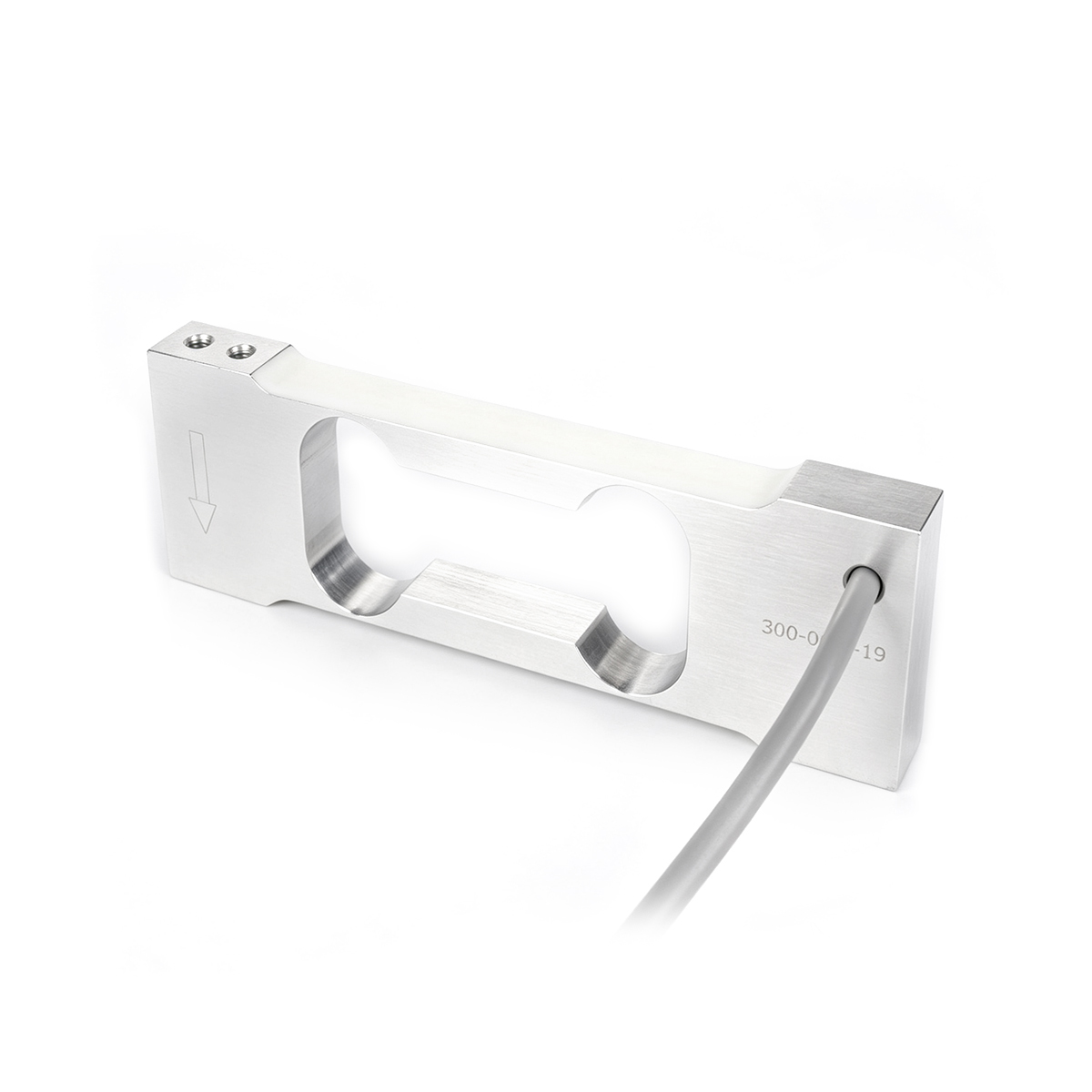

Platform Load Cell Sensor

Suitable for electronic scale, counting scale, electronic balance and industrial weighing system

Model:
FA502
Brand:
FIBOS
Capacity:
200,300,600g;1,1.2,1.5,3kg
Accuracy:
0.02%F.S.
Dimensions:
L:110mm;H:33mm；W：10mm
Maximum size of the scale:
200x200mm
Material:
Aluminium alloy


Availability:



Inquire

Product Description

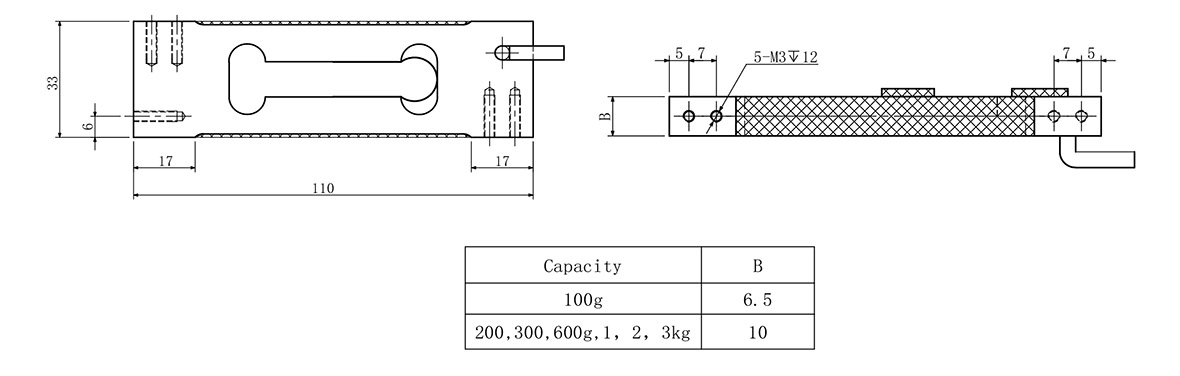

Dimensions（Unit：mm）

Platform Load Cell Sensor

We provide 3D model files of our products.

Support to facilitate your design of workpiece.

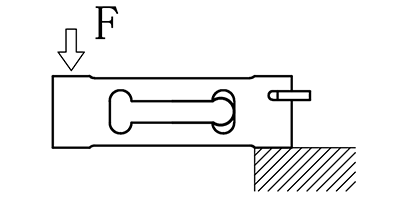

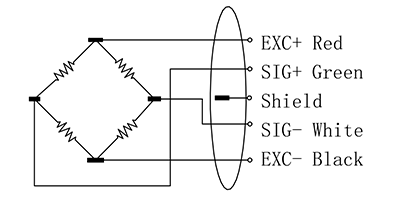

Load Direction	Wiring

Specifications

Specifications	Technique
Capacity	80,150,200,300,600g 1,2,3kg
Sensitivity	0.8±15%mV/V 2.0±20%mV/V
Zero balance	±0.02%mV/V
Creep	0.02%F.S.
Non-linearity	0.02%F.S.
Hysteresis	0.02%F.S.
Repeatability	0.02%F.S.
Input impedance	410±15Ω
Output impedance	350±5Ω
Temp. effect on output	0.02%F.S./10℃
Temp. effect on zero	0.03%F.S./10℃
Insulation resistance	≥5000MΩ/50V(DC)
Recommended excitation	5~12VDC
Maximum excitation	15VDC
Compensated temp. range	-10~40℃
Operating temp. range	-20~60℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	Φ3X0.25m
Material	Aluminium Alloy
Maximum size of the scale	100x100mm

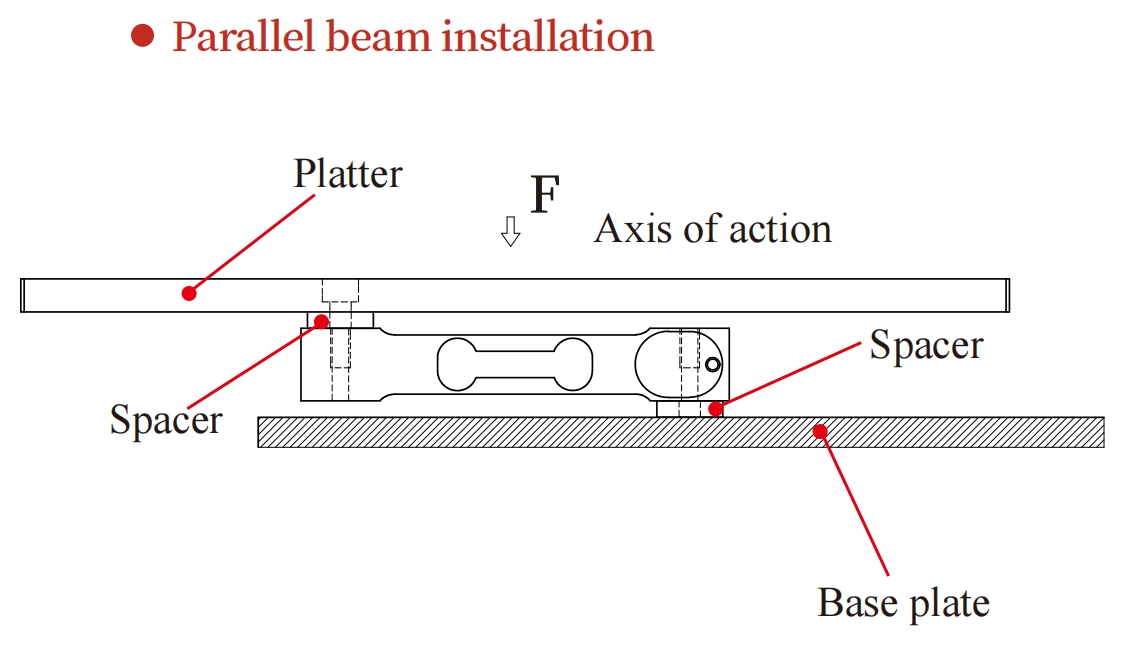

Installation

Delivery Configurations
