Compression load cells represent a crucial technology in modern industrial measurement systems, particularly when dealing with fluid-based applications. These sophisticated devices have revolutionized the way we measure and monitor forces in liquid environments, offering unprecedented accuracy and reliability in various industrial processes.

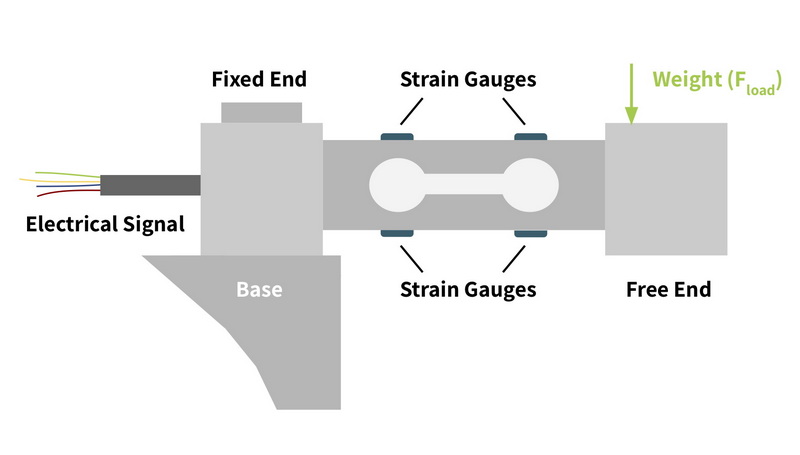

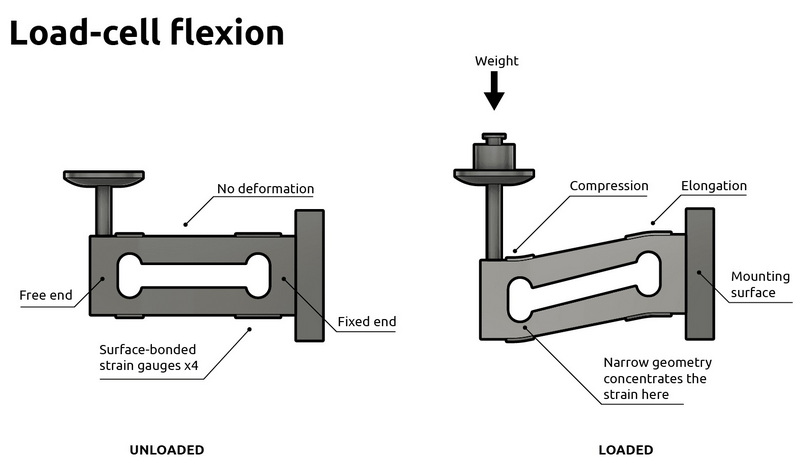

Compression load cells are specialized force measurement devices designed to measure compressive forces along a single axis. These devices utilize strain gauge technology to convert mechanical force into electrical signals, providing precise measurements for various applications. In fluid environments, these sensors must be specially designed and protected to maintain their accuracy and reliability.
The implementation of compression load cells in fluid environments spans numerous industries and applications. In the chemical processing industry, these devices are essential for monitoring tank levels and ensuring precise material measurements. The marine industry utilizes these sensors for underwater force measurements and structural monitoring. Additionally, the food and beverage sector relies on these devices for accurate liquid ingredient measurements and process control.
When implementing compression load cells in fluid environments, several critical factors must be considered. The design must incorporate proper sealing and protection against moisture ingress, typically achieving IP66/IP68/IP69K ratings for complete submersion protection. Material selection is crucial, with stainless steel being the preferred choice for its corrosion resistance and durability in harsh environments.
Proper installation of compression load cells in fluid environments requires careful attention to detail. The mounting surface must be perfectly level and clean to ensure accurate measurements. Regular maintenance protocols should include inspection for corrosion, verification of sealing integrity, and calibration checks to maintain measurement accuracy.
Modern compression load cells incorporate advanced features specifically designed for fluid applications. These include temperature compensation systems, built-in overload protection, and digital signal processing capabilities. Some models also feature wireless communication capabilities, enabling remote monitoring and data collection in challenging environments.
Optimizing the performance of compression load cells in fluid environments requires careful attention to environmental factors. Temperature fluctuations, pressure variations, and chemical exposure can all impact measurement accuracy. Regular calibration and monitoring of environmental conditions are essential for maintaining optimal performance.
The field of compression load cell technology continues to evolve, with new developments focusing on improved accuracy, durability, and integration capabilities. Emerging trends include the implementation of smart sensors, IoT connectivity, and advanced data analytics capabilities for predictive maintenance and performance optimization.
A: Yes, specially designed compression load cells with appropriate IP ratings (IP68/IP69K) can be used in fully submerged applications. These load cells feature hermetically sealed housings and specialized materials to prevent water ingress and ensure reliable operation underwater.
A: High-quality compression load cells can maintain accuracy levels of 0.1% to 0.25% of full scale in fluid environments, provided they are properly installed and maintained. However, environmental factors can influence this accuracy.
A: The calibration frequency depends on the application's criticality and environmental conditions. Generally, a minimum of annual calibration is recommended, with more frequent calibrations for critical applications or harsh environments.
A: Stainless steel, particularly 17-4 PH or 316L grades, is the preferred material for fluid applications due to its excellent corrosion resistance and mechanical properties. Some specialized applications may use titanium or other corrosion-resistant alloys.
A: Temperature variations can affect load cell accuracy through thermal expansion and changes in material properties. Modern load cells incorporate temperature compensation systems to minimize these effects, typically maintaining accuracy within specified ranges from -40°C to +80°C.
This comprehensive article provides a thorough understanding of compression load cells in fluid applications, covering everything from basic principles to advanced applications and future trends. The inclusion of relevant images and videos helps illustrate key concepts and practical implementations.
