In the realm of measurement and data collection, load cells play a pivotal role, especially when integrated with Data Acquisition (DAQ) systems. This article delves into the functionality of load cells, their connection to DAQ systems, and the various applications that benefit from this integration.

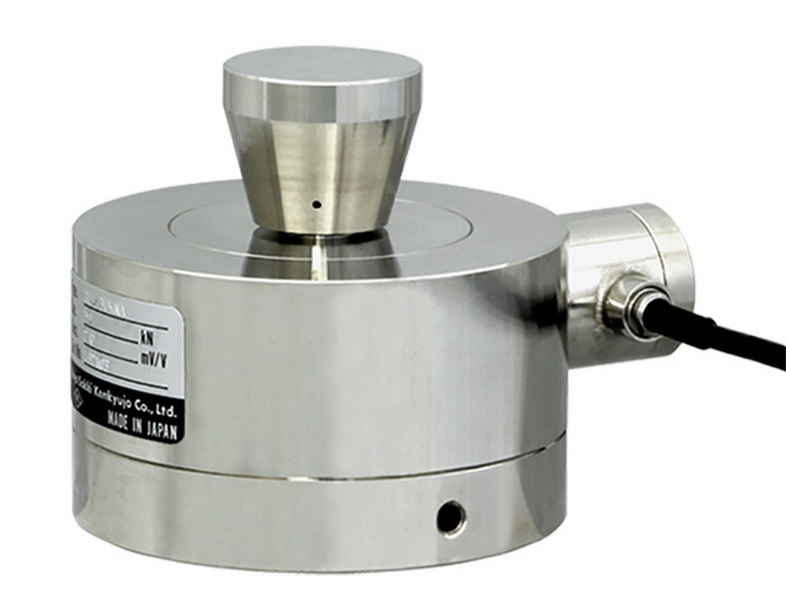

A load cell is a transducer that converts a force or load into an electrical signal. This signal can be measured and recorded, making load cells essential in various applications, including industrial weighing, material testing, and structural monitoring. Load cells come in different types, such as strain gauge, hydraulic, and pneumatic, each suited for specific applications.

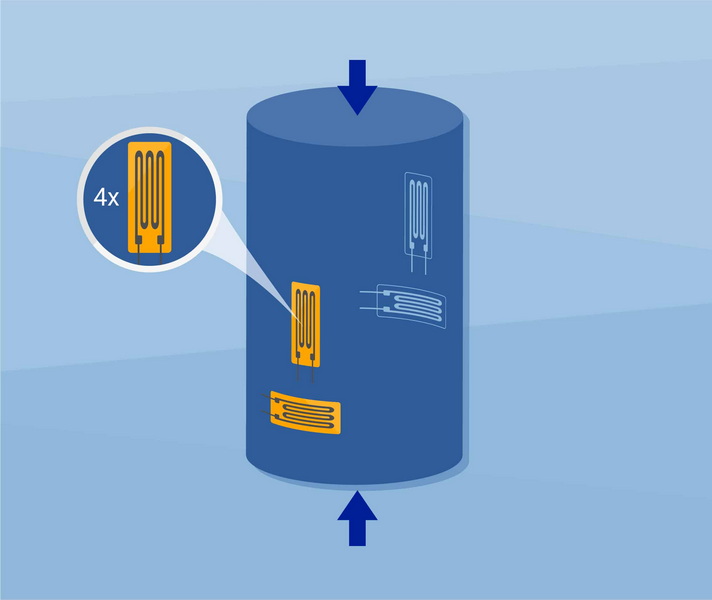

Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied, the load cell deforms slightly, causing a change in resistance in the strain gauges attached to it. This change in resistance is then converted into an electrical signal, which can be processed by a DAQ system.
Connecting a load cell to a DAQ system involves several steps:

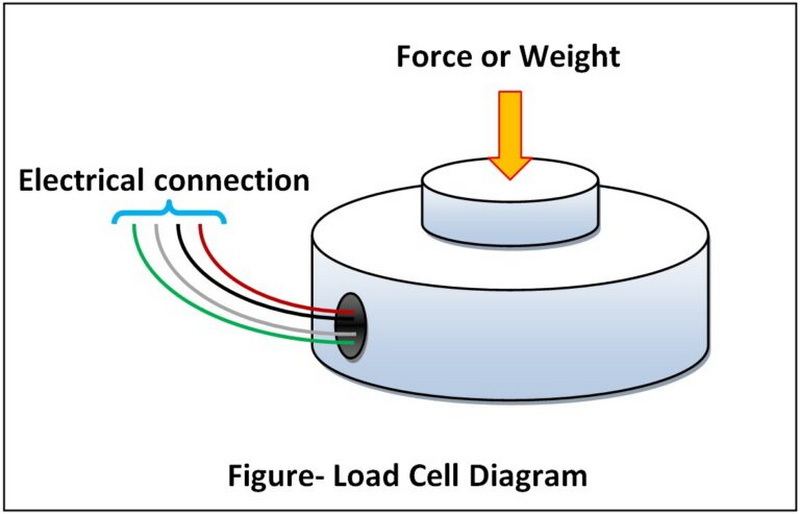

1. Wiring the Load Cell: Load cells typically have four wires: two for the signal output and two for excitation. Proper wiring is crucial for accurate measurements. The excitation wires provide the necessary voltage to the load cell, while the signal wires carry the output signal.
2. Choosing the Right DAQ Device: Not all DAQ devices are compatible with every load cell. It is essential to select a DAQ system that can handle the low voltage signals produced by load cells. Many DAQ systems come with built-in amplifiers to boost these signals for better accuracy.
3. Configuring the DAQ System: Once the load cell is connected, the DAQ system must be configured to interpret the signals correctly. This involves setting up the software to recognize the load cell's characteristics and calibrating it to ensure accurate readings.
Load cells integrated with DAQ systems are used in various applications, including:
◆ Industrial Weighing: Load cells are widely used in scales and balances to measure weight accurately.
◆ Material Testing: In laboratories, load cells are used to test the strength and durability of materials by measuring the force applied until failure.
◆ Structural Monitoring: Load cells can monitor the load on structures such as bridges and buildings, providing critical data for safety assessments.
1. High Accuracy: Load cells provide precise measurements, which are crucial in applications where accuracy is paramount.
2. Real-Time Data Collection: DAQ systems allow for real-time monitoring and data collection, enabling immediate analysis and decision-making.
3. Versatility: Load cells can be used in various environments and applications, making them a flexible choice for many industries.
While integrating load cells with DAQ systems offers numerous benefits, there are challenges to consider:
◆ Signal Noise: Load cell signals can be susceptible to electrical noise, which can affect measurement accuracy. Proper shielding and grounding techniques are essential to mitigate this issue.
◆ Calibration: Regular calibration of load cells is necessary to maintain accuracy over time. This process can be time-consuming and requires specialized equipment.
◆ Compatibility Issues: Ensuring that the load cell and DAQ system are compatible in terms of signal type and voltage levels is crucial for successful integration.
The integration of load cells with DAQ systems is a powerful combination that enhances measurement capabilities across various industries. By understanding the principles of load cells, their connection to DAQ systems, and the applications they serve, professionals can leverage this technology for improved data collection and analysis.
Load cells come in various types, including strain gauge, hydraulic, and pneumatic, each suited for different applications.
Connect the load cell's signal and excitation wires to the DAQ system, ensuring proper configuration in the software for accurate readings.
Calibration ensures that the load cell provides accurate measurements over time, which is critical for reliable data collection.
No, it is essential to choose a DAQ system that is compatible with the load cell's output signal and voltage requirements.
Applications include industrial weighing, material testing, and structural monitoring, among others.
This article provides a comprehensive overview of load cells and their integration with DAQ systems, highlighting their importance in various applications. By understanding these concepts, professionals can effectively utilize this technology for enhanced measurement and data collection.
