Load cells are crucial instruments in various industries for measuring force, weight, and load. Their ability to provide precise measurements makes them indispensable in applications ranging from industrial weighing to material testing. This article explores whether load cells can accurately measure both compression and tension forces, delving into their design, functionality, and applications.

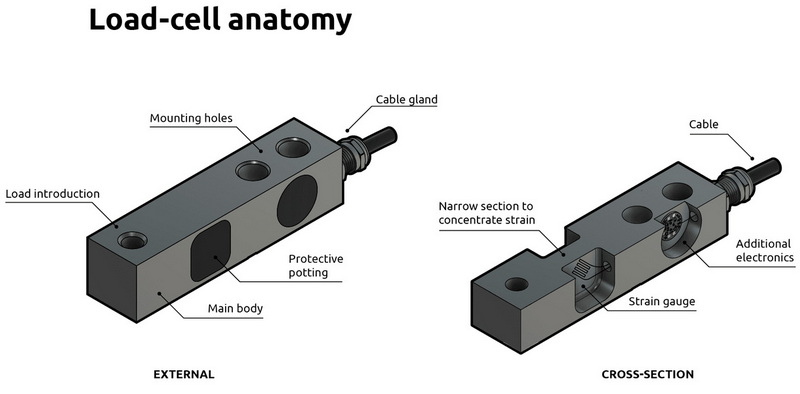

Load cells are transducers that convert mechanical force into an electrical signal. They typically consist of a metal body that deforms under load, with strain gauges bonded to this body to measure the deformation. The most common types of load cells include:
- Compression Load Cells: Designed to measure pushing forces.
- Tension Load Cells: Designed primarily for measuring pulling forces.
- Universal Load Cells: Capable of measuring both tension and compression forces.
The operation of load cells relies on the principle of strain gauges, which change their electrical resistance when deformed. This change is proportional to the force applied, allowing for accurate measurements. The most common configurations for strain gauge load cells include:
- Wheatstone Bridge Configuration: A circuit that balances two legs of a bridge circuit, enhancing measurement accuracy.
- Shear Beam Load Cells: Typically used in applications requiring high precision.
- S-Type Load Cells: Often used in tension applications due to their design.

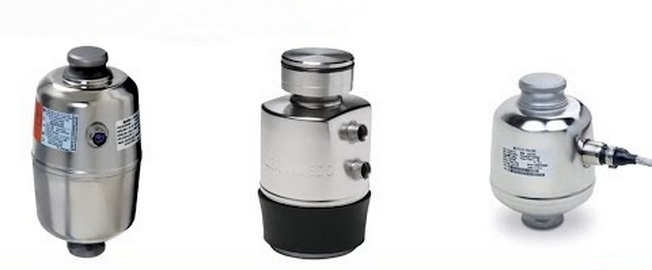

The primary distinction between compression and tension load cells lies in the direction of the force they measure:
| Type | Measurement Direction | Key Characteristics |
|---|---|---|
| Compression Load Cell | Measures pushing forces | Unidirectional; typically placed beneath the load |
| Tension Load Cell | Measures pulling forces | Can measure both tension and compression; often S-shaped |
Compression load cells are designed to handle downward forces, while tension load cells can be calibrated to handle both directions. This versatility is particularly beneficial in applications where loads may shift between tension and compression.
Load cells find use in a wide array of applications across different sectors:
- Industrial Weighing: Used in scales for weighing heavy materials and products.
- Material Testing: Employed in laboratories to test the tensile strength of materials.
- Medical Equipment: Utilized in devices that require precise weight measurements, such as patient scales.
- Construction and Engineering: Used for monitoring structural loads and ensuring safety standards.

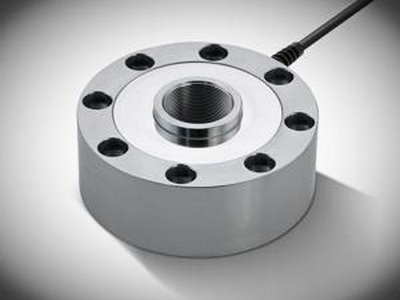

Yes, certain types of load cells can accurately measure both compression and tension forces. Universal load cells are specifically designed for this purpose. They employ advanced technology that allows them to switch between measuring tension and compression without losing accuracy.
1. Versatility: Ideal for applications that experience varying loads.
2. Cost-Effectiveness: Reduces the need for multiple types of load cells in a single application.
3. Simplified Calibration: Universal load cells can be calibrated for both types of measurements easily.
When selecting a load cell for measuring both compression and tension, several design factors must be considered:
- Material Durability: Load cells should be made from materials resistant to environmental factors such as moisture and corrosion.
- Size and Shape: Depending on the application, the size and shape may impact installation and measurement accuracy.
- Calibration Requirements: Regular calibration ensures long-term accuracy, especially in critical applications.
Load cells are essential tools for accurately measuring both compression and tension forces. While traditional compression and tension load cells serve specific purposes, universal load cells provide a flexible solution capable of handling various applications. Their design allows them to maintain high accuracy across different loading conditions, making them invaluable in industrial settings.
Compression load cells measure pushing forces, while tension load cells measure pulling forces. Some tension load cells can also measure compression.
Yes, universal load cells are designed to accurately measure both types of forces.
If you notice discrepancies in measurements or if it has been a significant amount of time since its last calibration, it may need recalibration.
Load cells are widely used in industries such as manufacturing, construction, healthcare, and research laboratories.
Ensure proper installation alignment, use appropriate mounting hardware, and perform regular calibrations to maintain accuracy.
