In the world of force measurement and load cell technology, understanding the intricacies of load cell equations is crucial for accurate data interpretation and application. This article delves into the tension load cell equation and explores its potential use for both tension and compression scenarios. We'll examine the underlying principles, practical applications, and limitations of using this equation across different force measurement contexts.
Before we dive into the specifics of the tension load cell equation, it's essential to grasp the fundamental concepts of load cells and their operation.
A load cell is a force transducer that converts mechanical force into an electrical signal. It's the heart of many weighing systems and force measurement applications. Load cells come in various types, including tension, compression, and combination cells.

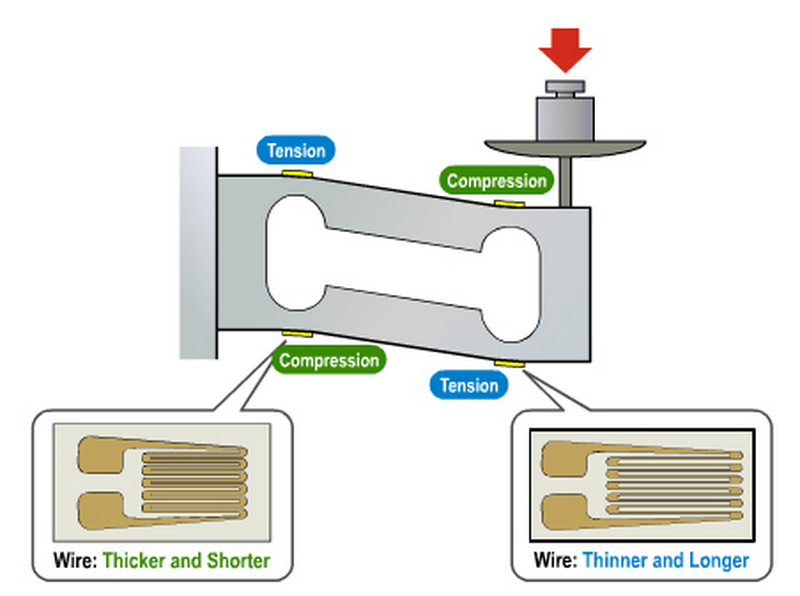

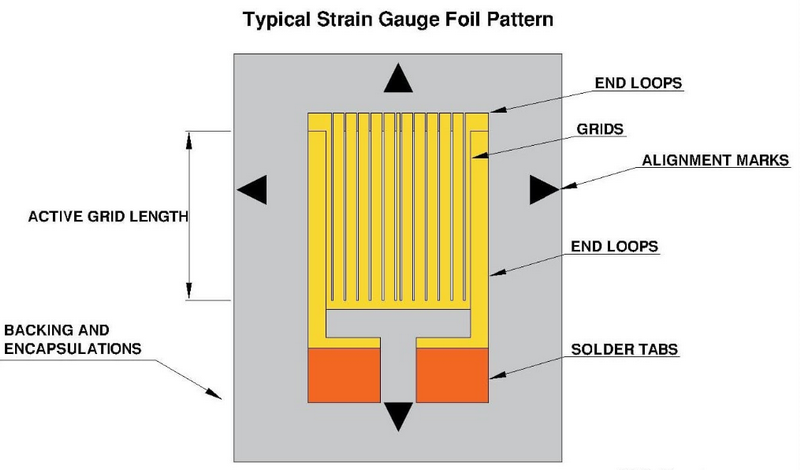

Load cells typically employ strain gauges to measure the deformation of a structural element under applied force. As the force increases, the strain gauges experience a change in electrical resistance, which is then converted into a measurable electrical signal.
The tension load cell equation is a mathematical representation of the relationship between the applied force and the electrical output of the load cell. In its simplest form, the tension load cell equation can be expressed as:
F=k×V
Where:
- F is the applied force
- k is the calibration factor or sensitivity of the load cell
- V is the output voltage
This linear equation assumes a direct proportionality between the applied force and the output signal. However, in practice, the tension load cell equation often includes additional terms to account for non-linearities and environmental factors.
A more comprehensive tension load cell equation might look like this:
F=A₀+A₁V+A₂V₂+A₃V₃
Where A₀, A₁, A₂, and A₃ are coefficients determined during calibration to account for various factors affecting the load cell's performance.
Now, let's address the central question: Can you use the tension load cell equation for both tension and compression?

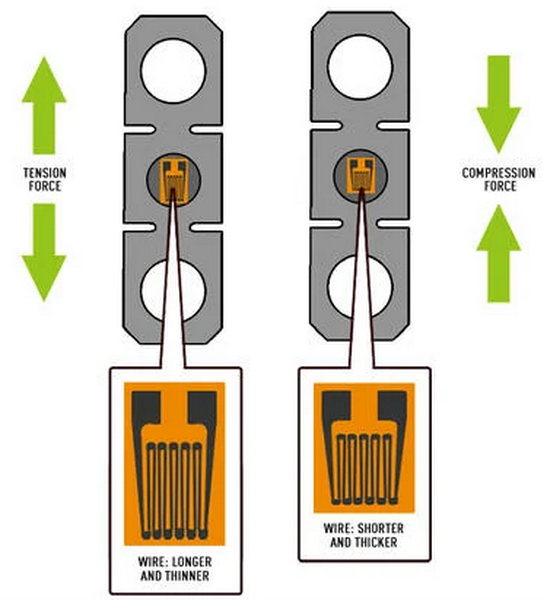

In theory, the basic principles underlying the tension load cell equation can be applied to compression scenarios. The strain gauges in a load cell respond to deformation, regardless of whether the force is pulling (tension) or pushing (compression).
While the fundamental concept remains the same, there are several practical considerations when applying the tension load cell equation to compression:
1. Load Cell Design: Tension load cells are specifically designed to handle pulling forces. Their structural elements and strain gauge placement are optimized for tension measurements.
2. Calibration: Load cells are typically calibrated for their intended use. A tension load cell calibrated for tension forces may not provide accurate readings when used in compression without proper recalibration.
3. Non-linearities: The behavior of a load cell may differ slightly between tension and compression, especially at the extremes of its range.
4. Mechanical Considerations: The mounting and force application points for tension and compression measurements are often different, which can affect the load cell's response.
To use a tension load cell equation for compression, several adjustments may be necessary:
1. Sign Convention: The equation may need to be modified to account for the opposite direction of force. This often involves changing the sign of certain terms.
2. Recalibration: The load cell should be recalibrated using known compression forces to determine new coefficients for the equation.
3. Non-linearity Compensation: Additional terms may be required in the equation to compensate for any non-linear behavior specific to compression loading.
4. Mechanical Adaptations: Proper fixtures and adapters may be needed to ensure that the compression force is applied correctly to the load cell.
Let's examine some real-world examples where tension load cells have been adapted for compression measurements:
In a manufacturing plant, a tension load cell was repurposed for a compression weighing application. The engineers recalibrated the load cell and modified the tension load cell equation to account for the new force direction. They found that with proper calibration and equation adjustment, the tension load cell performed adequately for moderate compression loads.
A research laboratory needed to conduct both tension and compression tests on material samples. Instead of purchasing separate load cells, they used a single S-type load cell capable of measuring both forces. They developed a unified equation that could handle both tension and compression by incorporating a direction factor and adjusting the calibration coefficients based on the force type.
While it is possible to adapt the tension load cell equation for compression in some cases, there are important limitations to consider:
1. Accuracy: The accuracy of compression measurements using a tension load cell may be compromised, especially at the extremes of the measurement range.
2. Overload Protection: Tension load cells may not have the same overload protection in compression, potentially leading to damage if excessive force is applied.
3. Hysteresis: The load cell may exhibit different hysteresis characteristics in compression compared to tension.
4. Legal and Regulatory Compliance: In some industries, using a load cell outside its designed purpose may not comply with regulatory standards or legal requirements.
To ensure accurate and reliable force measurements, consider the following best practices:
1. Use Purpose-Built Load Cells: Whenever possible, use load cells specifically designed for the type of force you're measuring (tension or compression).
2. Proper Calibration: Regularly calibrate your load cells using traceable standards and ensure the calibration covers the entire range of expected forces.
3. Environmental Compensation: Account for environmental factors such as temperature and humidity in your load cell equations.
4. Regular Verification: Periodically verify the accuracy of your measurements using known weights or forces.
5. Consult Experts: When in doubt, consult with load cell manufacturers or metrology experts to ensure proper application of load cell equations.
The tension load cell equation can, in some cases, be adapted for use in compression scenarios. However, this adaptation comes with several caveats and potential limitations. While the underlying principles of strain measurement apply to both tension and compression, the specific design, calibration, and application of load cells can significantly impact their performance in different force directions.
For optimal accuracy and reliability, it's generally recommended to use load cells designed specifically for the type of force being measured. If a tension load cell must be used for compression (or vice versa), thorough recalibration, equation modification, and careful consideration of the limitations are essential.
As technology advances, we may see more versatile load cells and sophisticated equations that can seamlessly handle both tension and compression forces. Until then, understanding the nuances of load cell equations and their proper application remains crucial for accurate force measurement across various industries and applications.
Tension load cells are designed to measure pulling forces, while compression load cells measure pushing forces. The primary difference lies in their structural design and the arrangement of strain gauges to optimize measurement accuracy for their respective force directions.
Not all tension load cells are suitable for compression measurements. While some S-type load cells are designed for both tension and compression, many tension load cells are optimized solely for pulling forces and may not provide accurate readings or withstand compression forces without damage.
Temperature can significantly impact load cell performance. The tension load cell equation often includes temperature compensation terms to account for thermal expansion and changes in material properties. Proper temperature compensation is crucial for maintaining accuracy across varying environmental conditions.
Hysteresis in load cells refers to the difference in output readings when the same force is applied and then removed. It can affect both tension and compression measurements. The tension load cell equation may need to account for hysteresis effects, especially when adapting for use in compression scenarios.
The frequency of load cell recalibration depends on various factors, including usage intensity, environmental conditions, and regulatory requirements. Generally, it's recommended to recalibrate load cells at least annually, or more frequently in demanding applications or when accuracy is critical.
