Load cells are essential components in various measurement systems, widely used in industries ranging from manufacturing to healthcare. They convert mechanical force into an electrical signal, allowing for precise weight measurements. Understanding the factors that influence load cell performance is crucial for ensuring accurate readings, and one such factor is the length of the wire connecting the load cell to the measurement system.
Load cells are transducers that convert force or weight into an electrical signal. They come in various types, including strain gauge, hydraulic, and pneumatic load cells, each suited for specific applications. Strain gauge load cells are the most common, utilizing the principle of strain to measure weight. These devices are used in scales, industrial weighing systems, and even in medical applications like patient monitoring.

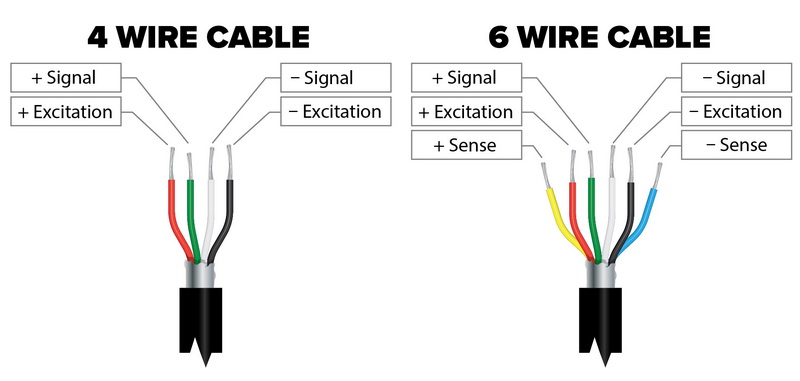

Wires play a critical role in connecting load cells to their respective measurement systems. The quality and specifications of these wires can significantly impact the performance of the load cell. Factors such as wire material, gauge, and length can affect the integrity of the signal transmitted from the load cell to the measurement device.

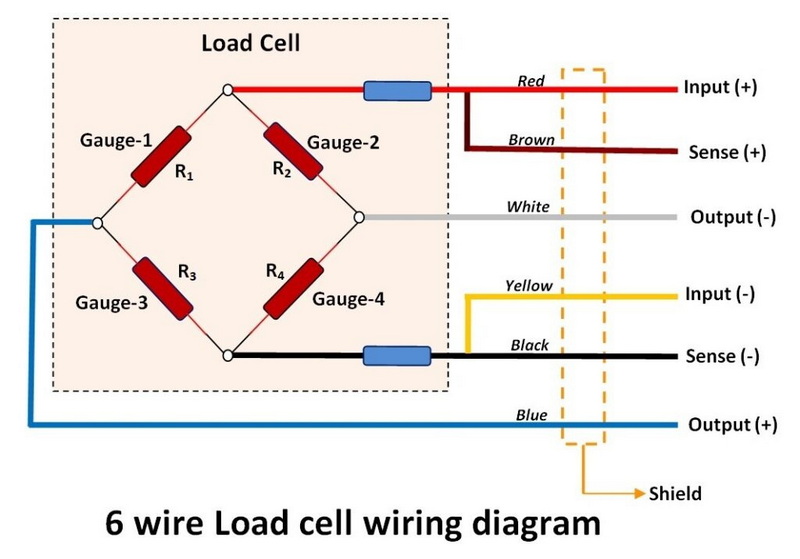

The length of the wire connecting a load cell to its measurement system can indeed affect the signal transmitted. Longer wires can introduce additional electrical resistance, which can lead to signal degradation. This degradation can result in inaccurate readings, making it essential to consider wire length when designing load cell systems.
Electrical resistance increases with wire length, which can cause a drop in voltage and, consequently, a weaker signal. This phenomenon is particularly critical in applications requiring high precision, where even minor fluctuations in signal strength can lead to significant errors in measurement.
Several factors influence the performance of load cells, including wire gauge, material, and environmental conditions. The gauge of the wire affects its resistance; thicker wires (lower gauge numbers) have less resistance and can carry signals more effectively over longer distances. Additionally, the material of the wire can impact its conductivity, with copper being a popular choice due to its excellent electrical properties.
Environmental factors, such as temperature and humidity, can also affect load cell performance. High temperatures can increase resistance, while humidity can lead to corrosion, further impacting signal integrity.

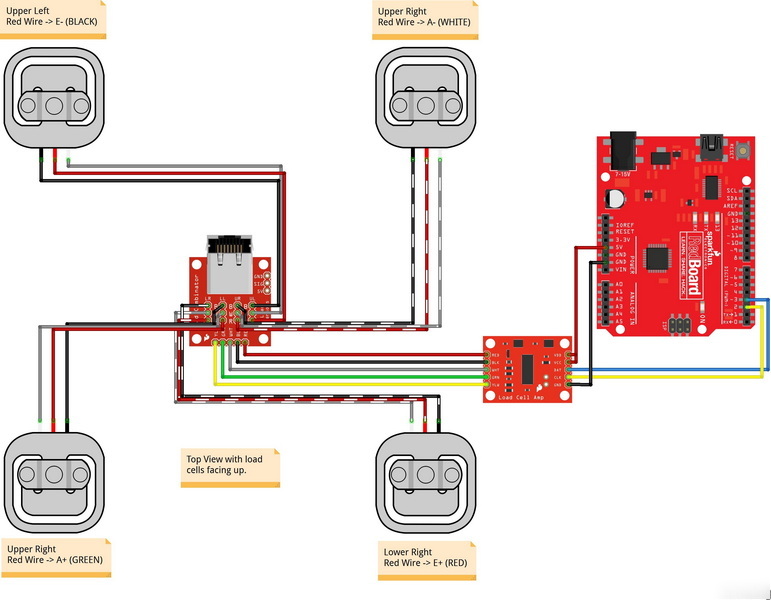

To ensure optimal performance of load cells, it is essential to follow best practices when selecting wire length and gauge. Here are some recommendations:
- Choose the Right Wire Gauge: Use a thicker wire for longer distances to minimize resistance and signal loss.
- Limit Wire Length: Keep wire lengths as short as possible to reduce resistance and potential interference.
- Use Shielded Cables: Shielded cables can help protect against electromagnetic interference, which can distort the signal.
- Regularly Inspect Wiring: Check for wear and tear, corrosion, or damage that could affect performance.
Calibration is vital for ensuring that load cells provide accurate measurements. Regular calibration helps account for any changes in the system, including those caused by wire length or environmental factors. Common calibration techniques include:
- Static Calibration: Applying known weights to the load cell and recording the output signal to create a calibration curve.
- Dynamic Calibration: Using dynamic loads to test the load cell's response and ensure accuracy under varying conditions.
In conclusion, the length of wire connecting a load cell to its measurement system can significantly impact the signal transmitted and, consequently, the accuracy of measurements. Understanding the relationship between wire length, gauge, and load cell performance is crucial for anyone working with these devices. By following best practices for wiring and regularly calibrating load cells, users can ensure reliable and accurate measurements in their applications.
Wire gauge affects the resistance of the wire; thicker wires (lower gauge) have less resistance, allowing for better signal transmission and accuracy.
Long wire lengths can introduce additional resistance, leading to signal degradation and inaccurate measurements.
To improve accuracy, use shorter wire lengths, select appropriate wire gauges, and regularly calibrate the load cell.
Copper is commonly used for load cell wiring due to its excellent conductivity and low resistance.
Load cells should be calibrated regularly, typically every six months to a year, or whenever there are significant changes in the system or environment.
