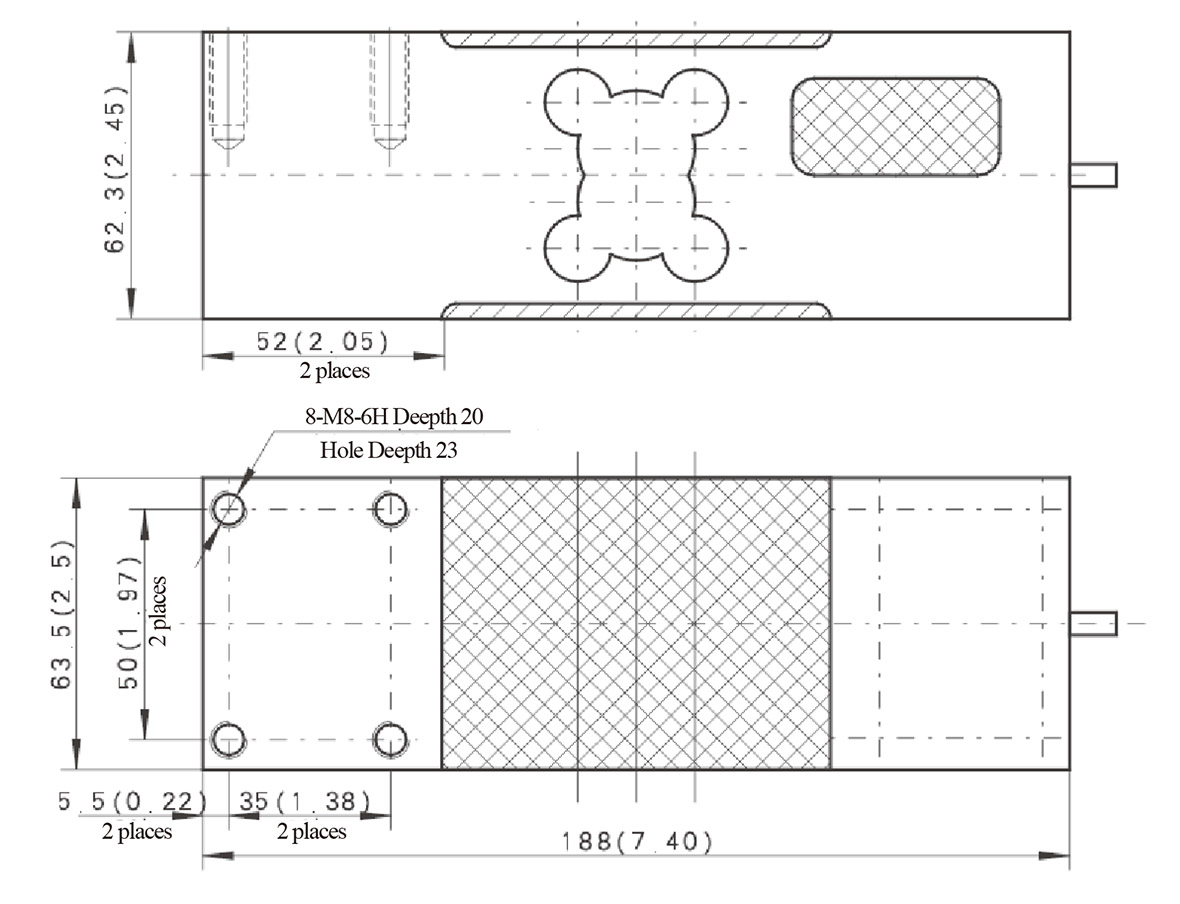

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Recommended selection model |
|
|

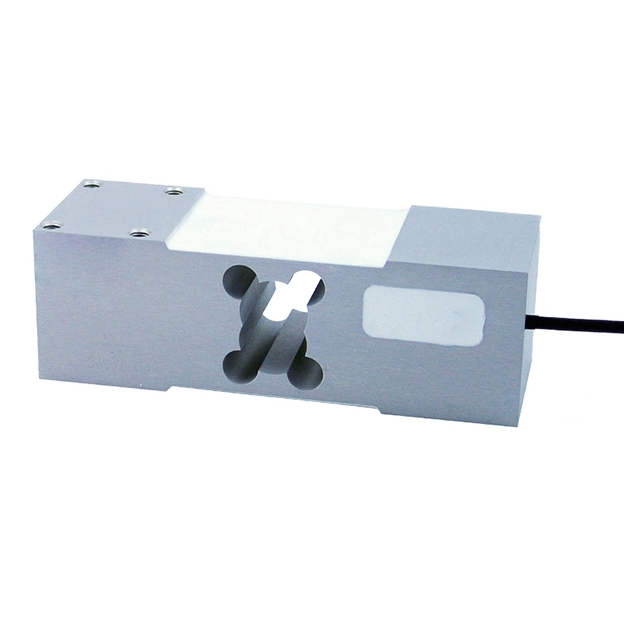

▶ Aluminium-alloy IP65 single point load cell. ▶ Colourless anodized ▶Suitable for single and double load cell structured platform scales. ▶Maximum platform size: for 50kg-200kg: 600 x 600 mm for 250kg-635kg: 600 x 800 mm |
| Specifications |
Specifications | Technique |
| Maximun Capacity (Emax) | 50/75/100/150/200/250/300/500/635kg |
| Output sensitivity (=FS) | 2.0±0.2mV/V |
Accuracy Class | C3 |
Combined error | ±0.02%F.S. |
Creep | ±0.0167%FS/30min |
Temperature effect on sensitivity | ±0.0175%FS/10℃ |
Temperature effect on zero | ±0.02%FS/10℃ |
Zero balance | ±2%FS |
| Compensated temperature | -10 ～ 40℃ |
| Operating temperature | -35 ～ 65℃ |
| Input resistance | 406±6Ω |
Output resistance | 350±3Ω |
Insulation resistance | ≥5000MΩ(50VDC) |
Excitation recommended voltage | 5 ～ 12VDC |
Excitation maximum | 18VDC |
Safe overload | 120%F.S |
Ultimate overload | 150%F.S. |
Protection Class | IP65 |
| Cable Specification | φ5.0mm |
| Cable length | 3m |
| Recommended scale size | 50kg ~ 200kg,600×600mm 250kg ～ 635kg,600×800mm |
| Corner correction | 0.02% load value /100mm |
| Recommended torque on fixation | 20N.m |

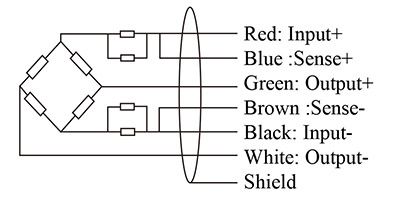

| Wiring | Red: Input+, Blue：Sense+，Green: Output+, Shield: Transparent, Black: Input-,Brown：Sense-，White: Output- |

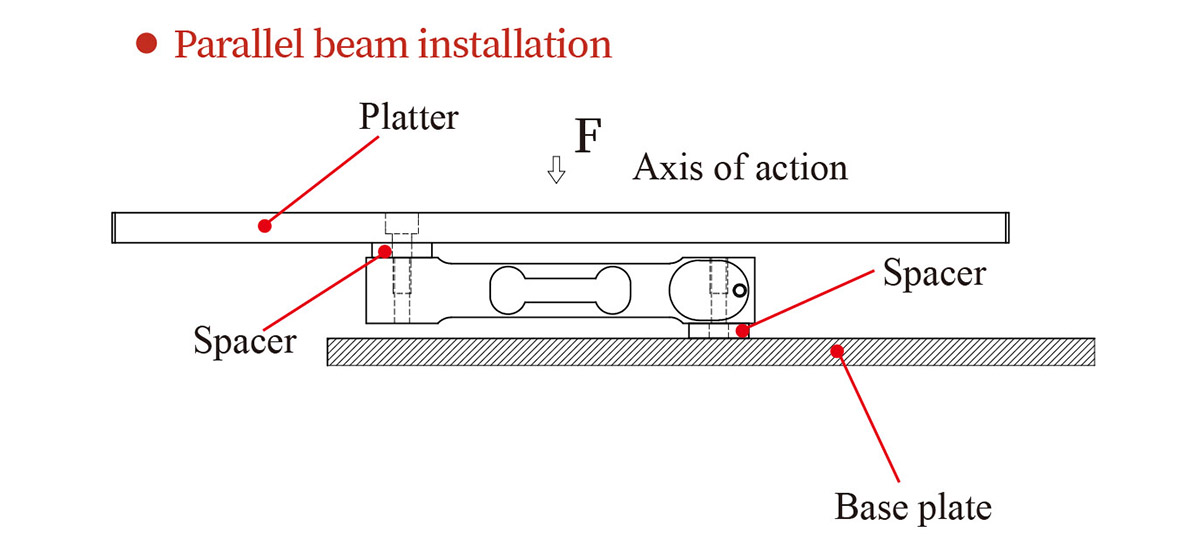

| Installation |
| Delivery Configurations |
