Load cells are essential devices used in various industries to measure force or weight. They convert mechanical force into an electrical signal, allowing for precise measurements. Understanding the relationship between load cell capacity and elongation is crucial for accurate material testing, particularly in applications where safety and performance are paramount.

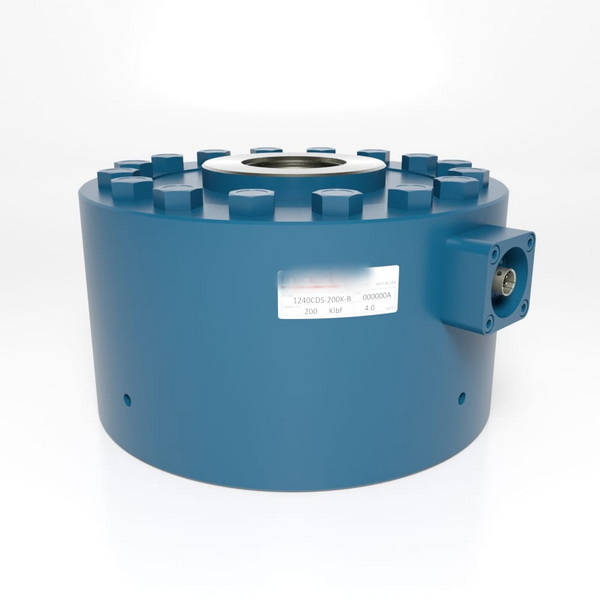

Load cells operate based on the principle of strain gauges, which detect deformation when a load is applied. There are several types of load cells, including hydraulic, pneumatic, and strain gauge load cells, each suited for different applications. The capacity of a load cell refers to the maximum load it can accurately measure. This capacity is critical because it directly influences the accuracy and reliability of the measurements obtained.
Elongation is a measure of how much a material can stretch before breaking. It is a vital parameter in tensile testing, which assesses the mechanical properties of materials. Factors such as temperature, material composition, and the rate of loading can affect elongation measurements. Understanding these factors is essential for interpreting test results accurately.
The capacity of a load cell significantly impacts elongation measurements. A load cell with insufficient capacity may not accurately capture the elongation of a material under stress, leading to erroneous results. For instance, if a load cell is rated for a lower capacity than the test sample, it may saturate, causing the readings to plateau and not reflect the true elongation.
In practical applications, engineers must select load cells that match the expected load range of the materials being tested. This ensures that elongation measurements are both accurate and reliable. For example, in a tensile test of a high-strength steel, using a load cell with a capacity that exceeds the expected load will provide a more accurate representation of the material's elongation characteristics.
Load cells are widely used in industries such as construction, manufacturing, and research. In construction, they help ensure that materials can withstand the loads they will encounter in real-world applications. In manufacturing, load cells are used to monitor the quality of materials and products, ensuring they meet safety standards.
Accurate elongation measurements are particularly critical in safety-sensitive applications, such as aerospace and automotive industries, where material failure can have catastrophic consequences. By understanding the relationship between load cell capacity and elongation, engineers can make informed decisions that enhance safety and performance.
In conclusion, the capacity of a load cell plays a vital role in the accuracy of elongation measurements. Understanding this relationship is essential for engineers and researchers involved in material testing. By selecting the appropriate load cell for their applications, they can ensure reliable and accurate results, ultimately leading to safer and more effective products.
A load cell is a transducer that converts mechanical force into an electrical signal. It typically uses strain gauges to measure deformation caused by an applied load.
Elongation measures a material's ability to stretch before breaking, providing insights into its ductility and overall mechanical properties.
If a load cell's capacity is too low for the applied load, it may not accurately measure elongation, leading to erroneous results.
Common types include strain gauge load cells, hydraulic load cells, and pneumatic load cells, each suited for specific applications.
Consider factors such as the expected load range, accuracy requirements, and the specific application to select an appropriate load cell.
This article provides a comprehensive overview of the impact of load cell capacity on elongation, emphasizing the importance of accurate measurements in various applications.
