Before delving into the calibration process, it's important to understand what force sensors are and how they work. Force sensors are devices that convert mechanical forces—such as weight, tension, compression, torque, strain, stress, or pressure—into electrical signals. These signals represent the magnitude of the force and can be used to inform operators or serve as inputs for machinery and process control.
Force sensors operate on various principles, including:
1. Strain gauge technology
2. Piezoresistive technology
3. Capacitive technology
4. Piezoelectric technology
5. Magnetic force sensing
Each type of force sensor has its unique characteristics and applications, but they all require proper calibration to function accurately.
Calibration is the process of comparing the system's actual output signal or weight indication to what it "should" be, and adjusting the system so that it outputs the correct value within an acceptable tolerance. Regular calibration is crucial for several reasons:
1. Ensuring accuracy and reliability of measurements
2. Compensating for wear and tear over time
3. Adapting to changes in environmental conditions
4. Meeting industry standards and regulatory requirements
5. Improving the overall performance of force-dependent systems

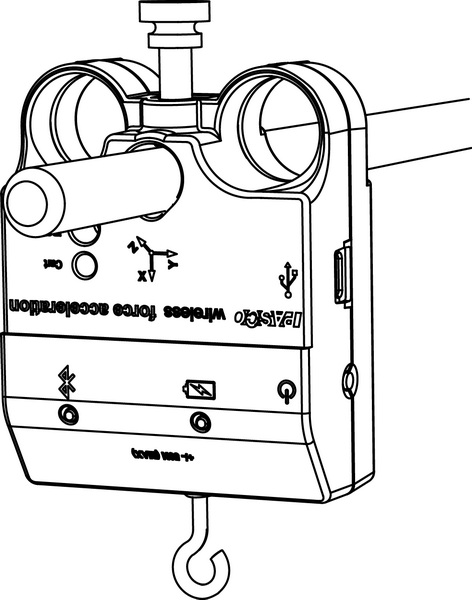

Before starting the calibration process, ensure you have the following:
- The force sensor to be calibrated
- A known weight or force standard (e.g., calibrated masses)
- A stable support structure
- Calibration software or tools specific to your sensor model
- Environmental monitoring equipment (e.g., thermometer, hygrometer)
Create a stable environment for calibration:
- Choose a location with minimal vibration and air currents
- Ensure consistent temperature and humidity
- Allow the sensor and equipment to acclimate to the environment
Securely attach the force sensor to a support structure. Ensure that it is stable and aligned properly to avoid measurement errors.
Connect the sensor to your data acquisition system or calibration software. Select the appropriate settings for your sensor model, such as measurement units and calibration type.
Zero calibration involves setting the baseline measurement when no force is applied:
- Remove any weights from the sensor
- Allow the sensor to stabilize
- Set this as your zero point in the calibration software
Systematically apply known weights to the sensor:
- Start with the lightest weight and progress to the heaviest
- Allow the sensor reading to stabilize before recording each measurement
- Record the sensor output for each known weight
Using the data collected, create a calibration curve:
- Plot the known weights against the sensor outputs
- Determine the relationship between applied force and sensor output
- This may be linear or require a more complex mathematical model
Based on the calibration curve:
- Adjust the sensor's sensitivity and offset parameters
- This may involve modifying software settings or adjusting physical components
After adjusting parameters:
- Reapply known weights
- Confirm that the sensor now provides accurate readings across its range
- If discrepancies persist, repeat the calibration process
Maintain detailed records of the calibration process:
- Date and time of calibration
- Environmental conditions
- Equipment used
- Calibration results and adjustments made
- Next scheduled calibration date
For more precise applications, consider these advanced techniques:
1. Multi-point Calibration: Use multiple known weights across the sensor's range for greater accuracy.
2. Temperature Compensation: Calibrate the sensor at different temperatures to account for thermal effects.
3. Hysteresis Correction: Calibrate the sensor for both increasing and decreasing forces to address hysteresis.

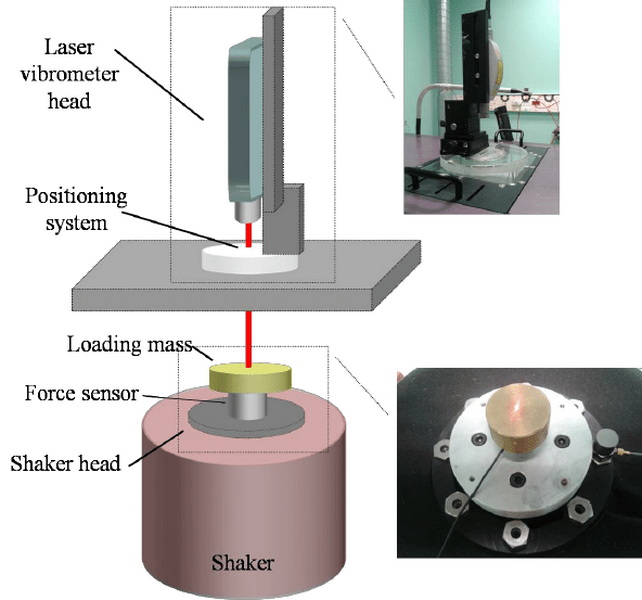

4. Dynamic Calibration: For sensors used in dynamic applications, calibrate using varying force rates.
1. Environmental Influences: Temperature fluctuations and vibrations can affect calibration accuracy.
2. Sensor Nonlinearity: Some sensors may have nonlinear responses, requiring more complex calibration models.
3. Hysteresis: The sensor may respond differently to increasing versus decreasing forces.
4. Drift: Sensor output may change over time, necessitating regular recalibration.
5. Cross-Axis Sensitivity: For multi-axis sensors, force applied in one direction may affect readings in other axes.
1. Regular Recalibration: Establish a routine calibration schedule based on usage and environmental factors.
2. Proper Handling: Handle sensors carefully to avoid physical damage that could affect calibration.
3. Environmental Control: When possible, use sensors in controlled environments to minimize external influences.
4. Quality Control: Implement quality control measures to detect calibration drift early.
5. Training: Ensure that personnel involved in sensor use and calibration are properly trained.
Properly calibrated force sensors are crucial in various fields:
1. Robotics: Enabling precise control of robotic arms and grippers.
2. Medical Devices: Ensuring accurate measurements in diagnostic and therapeutic equipment.
3. Automotive Industry: Testing vehicle components and safety systems.
4. Aerospace: Monitoring structural integrity and performance of aircraft.
5. Manufacturing: Quality control and process optimization in production lines.
6. Sports Science: Analyzing athlete performance and equipment design.
As technology advances, new trends are emerging in force sensor calibration:
1. Automated Calibration Systems: Reducing human error and increasing efficiency.
2. AI-assisted Calibration: Using machine learning to optimize calibration processes and predict drift.
3. Remote Calibration: Enabling calibration of sensors in hard-to-reach locations.
4. Integrated Self-Calibration: Sensors with built-in calibration capabilities.
5. Blockchain for Calibration Records: Ensuring the integrity and traceability of calibration data.
Calibrating a force sensor is a critical process that ensures the accuracy and reliability of force measurements across various applications. By following the steps outlined in this guide and adhering to best practices, you can maintain the performance of your force sensors and the systems that rely on them. Regular calibration, combined with proper handling and environmental control, will help you achieve consistent and trustworthy results in your force measurement applications.
The frequency of calibration depends on usage conditions and manufacturer recommendations, but generally ranges from every few months to annually. High-precision applications may require more frequent calibration.
While basic zeroing can be done manually, precise calibration often requires specialized equipment or software for accurate results. It's recommended to use proper calibration tools for best results.
Primary standards are direct measurements verified against national standards, while secondary standards are calibrated using primary standards for indirect measurement verification. Primary standards offer the highest level of accuracy.
Changes in temperature or humidity can cause materials within sensors to expand or contract, leading to inaccurate readings if not accounted for during calibration. It's important to calibrate sensors in conditions similar to their operating environment.
If a sensor fails calibration, first check for any physical damage or environmental factors that might be affecting it. If issues persist, consult the manufacturer's documentation or contact their technical support for guidance on troubleshooting or potential replacement.
