Testing a 4 wire load cell is an essential skill for anyone working with weighing systems, industrial applications, or any field that requires precise measurement of force or weight. Load cells are transducers that convert a force into an electrical signal, and understanding how to test them ensures that they function correctly and provide accurate readings.
Load cells come in various types, including compression, tension, and shear beam load cells. Each type serves a specific purpose, but 4 wire load cells are particularly popular due to their accuracy and reduced susceptibility to wiring resistance.
A load cell typically consists of a metal element that deforms under load. This deformation changes the resistance of the strain gauges attached to the element, which is then converted into an electrical signal. The output signal is proportional to the load applied, allowing for precise weight measurements.
The four wires in a 4 wire load cell configuration include two for the excitation voltage and two for the signal output. This setup helps minimize the effects of resistance in the wiring, leading to more accurate readings.
To test a 4 wire load cell, you will need the following tools:
1. Digital Multimeter: This is used to measure voltage, resistance, and current.
2. Power Supply: A stable power source is necessary to excite the load cell.
3. Wiring Diagram: A diagram showing the correct wiring configuration for the load cell.
4. Weights: Known weights to apply to the load cell for testing.
Before starting any testing, ensure that you are working in a safe environment. Disconnect any power sources and ensure that the area is clear of any hazards. Safety should always be your top priority when working with electrical equipment.

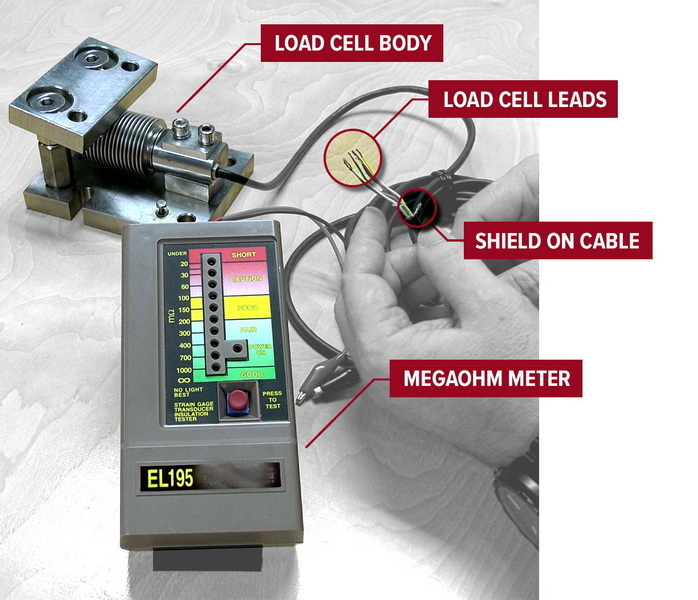

Visually inspect the load cell for any signs of damage, such as cracks, corrosion, or loose connections. Ensure that the load cell is clean and free from debris. A thorough inspection can help identify potential issues before testing begins.
Using the wiring diagram, connect the load cell to the digital multimeter and power supply. A typical 4 wire load cell will have two wires for the excitation voltage (often red and black) and two wires for the signal output (often green and white). Proper connections are crucial for accurate measurements.
Once the load cell is connected, apply power from the power supply. Ensure that the voltage matches the specifications of the load cell, typically around 5 to 10 volts. Using the correct voltage is essential to avoid damaging the load cell.
Using the digital multimeter, measure the resistance across the excitation wires. This should match the specifications provided by the manufacturer. If the resistance is significantly different, the load cell may be faulty.
With the load cell powered, apply a known weight to the load cell. Measure the output voltage across the signal wires using the multimeter. The output voltage should correspond to the weight applied, based on the load cell's specifications.
If the output voltage does not match the expected value, you may need to calibrate the load cell. This involves adjusting the output to ensure it accurately reflects the weight applied. Calibration procedures vary by manufacturer, so refer to the specific instructions for your load cell. Calibration is a critical step to ensure long-term accuracy.
To ensure accuracy, repeat the testing process with different known weights. This will help verify that the load cell is functioning correctly across its entire range. Consistency in readings is key to confirming the load cell's reliability.
Keep a record of your testing results, including the resistance measurements, output voltages, and any calibration adjustments made. This documentation can be useful for future reference and troubleshooting. Maintaining accurate records can help identify trends or recurring issues over time.
While testing a 4 wire load cell, you may encounter some common issues. Here are a few troubleshooting tips:
- No Output Voltage: If there is no output voltage, check the connections and ensure that the load cell is powered correctly. Inspect for any damaged wires. A loose connection can often be the culprit.
- Inconsistent Readings: If the readings fluctuate, it may indicate a poor connection or interference from external sources. Ensure that the load cell is properly grounded. Environmental factors can also affect readings, so consider the testing environment.
- Output Voltage Does Not Match Weight: If the output voltage does not correspond to the weight applied, recalibrate the load cell. If issues persist, the load cell may be damaged. In such cases, consulting the manufacturer or a professional may be necessary.
For those looking to delve deeper into load cell testing, consider the following advanced techniques:
A load cell simulator can be used to test the load cell without applying physical weights. This device generates a known output signal that mimics the response of a load cell under load. This method is particularly useful for troubleshooting and calibration.
For more complex applications, integrating a data acquisition system can provide real-time monitoring and logging of load cell data. This allows for more detailed analysis and can help identify trends or anomalies in the load cell's performance.
Testing the load cell under various environmental conditions (temperature, humidity, etc.) can help assess its performance in real-world applications. Understanding how environmental factors affect load cell readings is crucial for applications in extreme conditions.
Testing a 4 wire load cell is a straightforward process that requires careful attention to detail and the right tools. By following the steps outlined in this article, you can ensure that your load cell is functioning correctly and providing accurate measurements. Regular testing and maintenance of load cells are crucial for any application that relies on precise weight measurements.
A 4 wire load cell has two wires for excitation and two for signal output, while a 6 wire load cell includes additional wires for better compensation of lead resistance. The 6 wire configuration can provide more accurate readings, especially over long distances.
It is recommended to test your load cell at least once a year, or more frequently if it is used in critical applications or subjected to harsh conditions. Regular testing helps ensure accuracy and reliability.
No, a 4 wire load cell requires a compatible 4 wire system to function correctly. Using it with a 2 wire system will result in inaccurate readings and potential damage to the load cell.
If your load cell is not providing accurate readings, first check the connections and ensure it is calibrated correctly. If issues persist, consider consulting the manufacturer or a professional for further assistance.
Yes, environmental conditions such as temperature, humidity, and vibration can affect load cell performance. It is important to consider these factors when selecting and testing load cells for specific applications.
