Load cells are essential devices used to measure force or weight in various applications across multiple industries. They convert mechanical force into an electrical signal, allowing for precise measurements. Understanding how load cells work is crucial for engineers, technicians, and anyone involved in fields that require accurate weight measurement.
At its core, a load cell operates on the principle of converting force into an electrical signal. When a load is applied to the load cell, it deforms slightly. This deformation is measured and converted into an electrical signal that can be interpreted by a digital display or control system.
A typical load cell consists of several key components:
- Strain Gauges: These are the primary sensors that detect deformation. They are bonded to the load cell's structure and change resistance when the load is applied.
- Elastic Element: This is the part of the load cell that deforms under load. It can be made from various materials, including aluminum or stainless steel.
- Wheatstone Bridge Circuit: This circuit configuration is used to convert the resistance change from the strain gauges into a measurable voltage output.

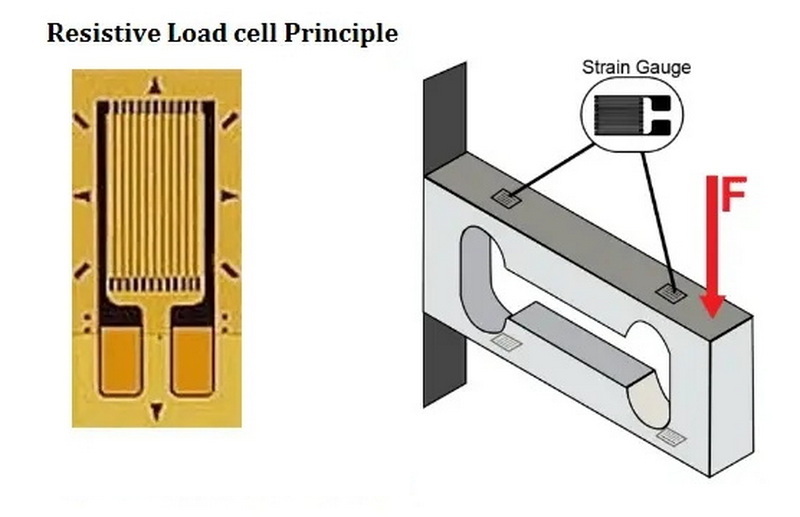

Strain gauges are critical to the operation of load cells. When a load is applied, the strain gauges experience tension or compression, leading to a change in their electrical resistance. This change is proportional to the amount of force applied, allowing for accurate weight measurement.
These are the most common type of load cells, widely used in industrial applications. They measure weight by detecting the deformation of a conductive material.
Hydraulic load cells use fluid pressure to measure weight. They are known for their robustness and are often used in heavy-duty applications.
These load cells operate using air pressure and are suitable for environments where electrical components may pose a risk.
Capacitive load cells measure changes in capacitance caused by the deformation of the load cell under weight.
These load cells generate an electrical charge in response to mechanical stress, making them suitable for dynamic measurements.
Load cells are extensively used in industrial scales for weighing products, materials, and equipment.
In the medical field, load cells are used in devices such as hospital beds and scales to monitor patient weight accurately.
Load cells play a crucial role in testing and measuring forces in aerospace and automotive applications, ensuring safety and performance.
Load cells are used to monitor structural loads in construction projects, helping to ensure safety and compliance with regulations.
Calibration is essential to ensure that load cells provide accurate measurements. Regular calibration helps maintain the integrity of the measurement system.
Calibration can be performed using known weights or through electronic calibration methods. It is crucial to follow manufacturer guidelines for accurate results.
Various standards exist for load cell calibration, including ISO and ASTM standards, which provide guidelines for ensuring measurement accuracy.
Proper installation is critical for accurate measurements. Load cells should be mounted securely, and alignment should be checked to avoid misreadings.
Common issues include misalignment, environmental factors affecting performance, and electrical interference. Regular maintenance and checks can help mitigate these problems.
Advancements in materials and technology are leading to more robust and sensitive load cells, capable of measuring smaller forces with greater accuracy.
The future of load cells includes integration with IoT devices, allowing for real-time monitoring and data analysis, enhancing operational efficiency.
Load cells are vital components in various industries, providing accurate measurements of force and weight. Understanding their operation, types, applications, and maintenance is essential for anyone involved in fields that rely on precise measurements. As technology advances, load cells will continue to evolve, offering even greater accuracy and functionality.
Load cells can last many years, often exceeding a decade, depending on usage and environmental conditions.
Calibration involves applying known weights to the load cell and adjusting the output to match the expected values.
Common types include strain gauge, hydraulic, pneumatic, capacitive, and piezoelectric load cells.
Yes, many load cells are designed to withstand harsh conditions, including extreme temperatures and moisture.
Load cells can achieve accuracy levels within 0.25% of full scale or better, making them suitable for most applications.
This comprehensive overview of load cells highlights their importance, functionality, and future potential in various industries.
