Beam load cells are essential devices used across various industries to measure weight and force with high precision. Understanding their accuracy is crucial for applications ranging from industrial manufacturing to scientific research. This article explores the accuracy of beam load cells, the factors influencing their performance, and best practices for ensuring reliable measurements.
Beam load cells, often referred to as bending beam load cells or shear beam load cells, are transducers that convert mechanical force into an electrical signal. They are commonly used in both tension and compression applications. The design typically consists of a beam that bends when a load is applied, and strain gauges attached to the beam measure the deformation.

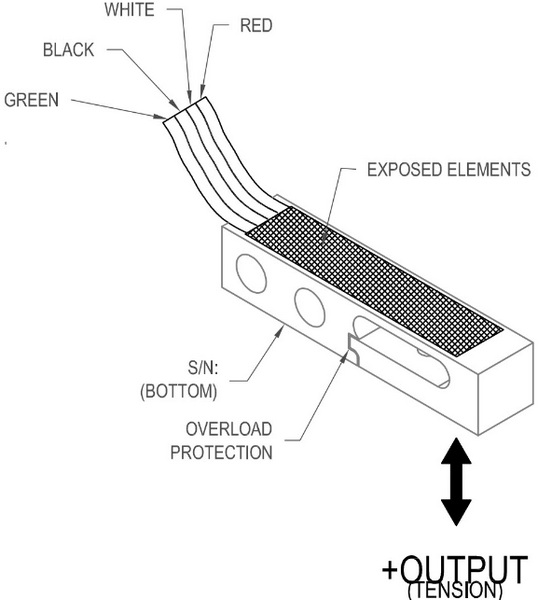

1. Shear Beam Load Cells: These are designed to handle high capacities and are ideal for industrial applications. They can withstand harsh environments and provide accurate measurements despite side loading.
2. Bending Beam Load Cells: Known for their compact size, these load cells are suitable for applications requiring precise measurements in limited spaces.
3. S-Beam Load Cells: These versatile load cells can measure forces in both tension and compression, making them suitable for a wide range of applications.
4. Double-Ended Beam Load Cells: These load cells have two load application points and can measure loads from both ends, making them ideal for applications requiring balanced loading conditions.
5. Compression Load Cells: Specifically designed to measure compressive forces, these load cells are often used in weighbridges and industrial scales.
Beam load cells operate based on the principle of strain measurement. When a force is applied to the beam, it experiences deformation (bending or shear). Strain gauges bonded to the surface of the beam detect this deformation by changing their electrical resistance. The change in resistance is proportional to the amount of force applied, allowing for accurate measurement.
The output from the strain gauges is then processed by an amplifier and converted into a readable signal, typically in volts or millivolts. This signal can be displayed on digital readouts or integrated into larger systems for data analysis.
The accuracy of beam load cells is influenced by several factors:
- Linearity: This refers to how closely the output signal corresponds to the applied load across the entire range. A highly linear load cell will produce readings that closely match expected values.
- Hysteresis: Hysteresis error occurs when the output signal differs depending on whether the load is increasing or decreasing. This can lead to discrepancies in measurements if not accounted for.
- Repeatability: This measures how consistently a load cell produces the same output under identical conditions. High repeatability is essential for reliable measurements.
- Environmental Conditions: Factors such as temperature fluctuations, humidity, and electromagnetic interference can affect performance. Load cells designed for specific environments often include protective features to mitigate these effects.
- Calibration: Regular calibration is essential to maintain accuracy. Over time, load cells may drift from their calibrated settings due to wear or environmental changes.
The accuracy of beam load cells varies based on their design and application. Generally, high-quality beam load cells can achieve accuracies within ±0.03% to ±0.1% of full-scale output (FSO). For example:
- Industrial Applications: Many industrial-grade beam load cells offer accuracies around ±0.1%, making them suitable for manufacturing processes where precision is critical.
- High Precision Applications: In laboratory settings or specialized industries like aerospace, some beam load cells can achieve accuracies as fine as ±0.025%, ensuring that even minute changes in force are detected.
Beam load cells are widely used in various fields:
- Manufacturing: Used for quality control and monitoring production processes, ensuring that products meet specifications and standards.
- Research Laboratories: Essential for experiments requiring precise force measurements, such as material testing or biomechanics studies.
- Medical Devices: Used in equipment like scales and testing machines where accurate weight measurement is crucial for patient care and diagnostics.
- Aerospace Testing: Critical for measuring forces during testing of aircraft components to ensure safety and performance standards are met.
- Food Industry: Employed in packaging processes where precise weight measurements are necessary to comply with regulations and maintain product quality.
- High Accuracy: Capable of providing precise measurements essential for quality control and research, ensuring that processes remain efficient and effective.
- Versatility: Suitable for a wide range of applications due to their ability to measure both tension and compression, making them adaptable to various industrial needs.
- Durability: Designed to withstand harsh environmental conditions, making them reliable in industrial settings where other types might fail.
- Cost-Effectiveness: While initial costs may be higher than some alternatives, their reliability and low maintenance needs often result in lower long-term operational costs.
Despite their advantages, there are challenges associated with using beam load cells:
- Installation Sensitivity: Improper installation can lead to inaccurate readings due to misalignment or mechanical stress on the cell itself.
- Environmental Sensitivity: Exposure to extreme temperatures or corrosive substances can affect performance unless appropriate protective measures are taken.
- Calibration Needs: Regular calibration is necessary but can be time-consuming; neglecting this can lead to significant inaccuracies over time.
To maximize the accuracy of beam load cells, consider the following best practices:
- Proper Installation: Ensure that the load cell is installed correctly on a stable surface to prevent mechanical stress that could lead to inaccurate readings. Use alignment tools as needed during installation.
- Regular Calibration: Schedule routine calibration checks at least once a year or more frequently if used in critical applications or harsh environments. Utilize certified calibration services when possible.
- Environmental Controls: Minimize exposure to extreme temperature variations and vibrations during operation by using protective casings or installing them in controlled environments when feasible.
- Use Quality Equipment: Invest in high-quality beam load cells from reputable manufacturers known for their precision and reliability; this ensures better performance over time.
As technology advances, we can expect several trends in beam load cell development:
- Smart Load Cells: Integration with IoT technology allows real-time monitoring and data analysis, improving operational efficiency by enabling predictive maintenance and reducing downtime.
- Enhanced Materials: The use of advanced materials will improve durability and sensitivity, leading to better performance in challenging environments such as extreme temperatures or corrosive atmospheres.
- Miniaturization: Smaller, more compact designs will allow for greater flexibility in applications where space is limited while maintaining high levels of accuracy.
- Wireless Technology: Wireless communication capabilities will facilitate easier integration into automated systems without the need for extensive wiring setups, simplifying installation processes.
Beam load cells are critical components in many industries due to their high accuracy and versatility. Understanding their operational principles and factors affecting their performance allows users to select appropriate models for specific applications. With proper installation, regular calibration, and attention to environmental conditions, users can ensure accurate measurements that meet industry standards while maximizing efficiency across various operations.
In summary, while beam load cells present certain challenges related to installation sensitivity and environmental factors, adhering to best practices significantly enhances their reliability. As technology continues to evolve with smart features and advanced materials, we anticipate even greater accuracy and functionality from these essential devices in the future.
A beam load cell is a device that measures force or weight by converting mechanical stress into an electrical signal through strain gauges attached to a bending or shear beam.
Temperature fluctuations can cause changes in resistance within the strain gauges, leading to measurement errors. It's crucial to maintain a stable temperature during operation for accurate readings.
Beam load cells are used in manufacturing for quality control, research laboratories for precise measurements, medical devices like scales, aerospace testing among others.
Calibration frequency depends on usage; however, it's generally recommended to calibrate at least once a year or more frequently if used in critical applications or harsh environments.
High-quality beam load cells provide improved accuracy, better durability under harsh conditions, greater repeatability in measurements, and overall reliability which is essential for maintaining operational standards.
