Bending beam load cells are a vital component in various industries, providing precise measurements of force and weight. Their design and functionality make them particularly useful in applications requiring high accuracy and reliability. In this article, we will explore the accuracy of bending beam load cells compared to other types of load cells, their advantages, limitations, and best practices for ensuring optimal performance.

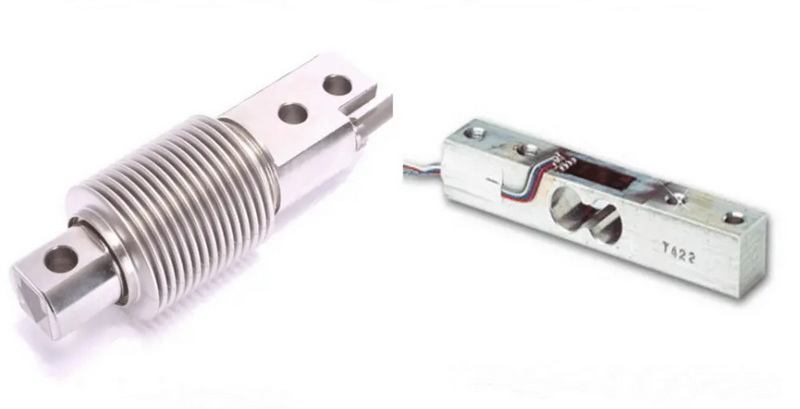

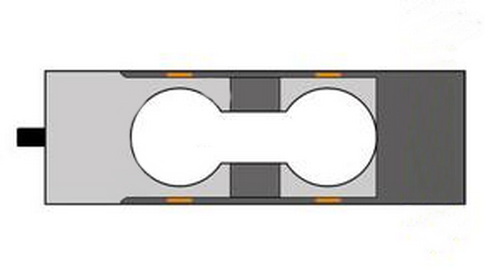

Bending beam load cells operate on the principle of strain measurement. When a force is applied to the beam, it bends, causing a change in electrical resistance in the strain gauges attached to it. This change is proportional to the applied force, allowing for accurate measurement.
- High Accuracy: Bending beam load cells can achieve accuracies within ±0.03% to ±0.1% of full-scale output (FSO), making them suitable for both industrial and laboratory applications.
- Versatility: They can measure both tension and compression forces, making them applicable in a wide range of settings from manufacturing to medical devices.
- Durability: Constructed from high-quality materials like stainless steel, these load cells are resistant to corrosion and can withstand harsh environments.
- Compact Design: Their small size allows for easy integration into various systems where space is limited.
To understand how bending beam load cells stack up against other types, we can compare them with shear beam load cells and single point load cells.
| Feature | Bending Beam Load Cells | Shear Beam Load Cells | Single Point Load Cells |
|---|---|---|---|
| Accuracy | ±0.03% to ±0.1% FSO | ±0.02% to ±0.1% FSO | ±0.1% to ±0.5% FSO |
| Capacity Range | Wide (from grams to tons) | High (up to several tons) | Limited (typically under 1000 kg) |
| Measurement Type | Tension & Compression | Primarily Compression | Primarily Compression |
| Installation Complexity | Moderate | Moderate | Simple |
| Environmental Resistance | High | Moderate | Low |
The accuracy of bending beam load cells can be influenced by several factors:
- Linearity: This refers to how closely the output signal corresponds to the applied load across the entire range. High linearity ensures reliable readings.
- Hysteresis: Hysteresis error occurs when the output signal differs based on whether the load is increasing or decreasing, leading to discrepancies if not managed properly.
- Repeatability: This measures how consistently a load cell produces the same output under identical conditions; high repeatability is essential for reliable measurements.
- Environmental Conditions: Temperature fluctuations, humidity, and electromagnetic interference can affect performance. Load cells designed for specific environments often include protective features.
- Calibration: Regular calibration is essential for maintaining accuracy over time. Drift from calibrated settings can lead to significant inaccuracies if not addressed.

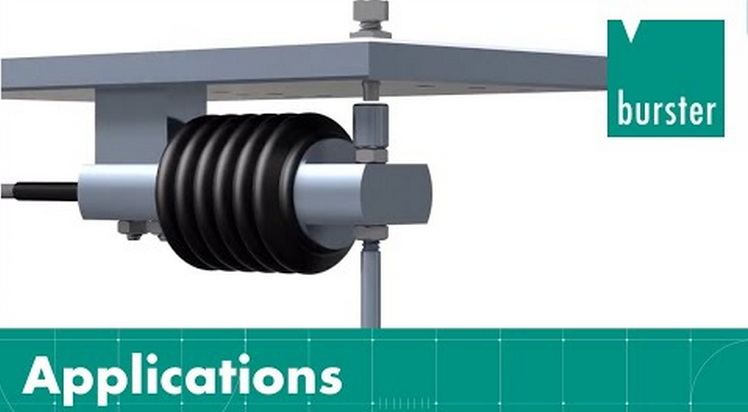

Bending beam load cells are widely used across various industries due to their versatility and accuracy. Common applications include:
- Industrial Manufacturing: Used in quality control processes where precise measurements are critical.
- Food Processing: Employed in weighing systems that require strict hygiene standards.
- Pharmaceuticals: Used for precise dosing and formulation processes.
- Automotive Testing: Applied in testing components for strength and durability.
In addition to these common uses, bending beam load cells find applications in:
- Aerospace Testing: Used in testing aircraft components under various loads during development phases.
- Construction Industry: Employed in monitoring structural loads during construction projects, ensuring safety and compliance with regulations.
- Medical Devices: Utilized in devices that require accurate weight measurements, such as patient scales or infusion pumps.
- Research Laboratories: Essential for experiments that require precise force measurements, such as tensile testing or material analysis.
Bending beam load cells offer numerous advantages over other types:
- Cost-Effectiveness: While initial costs may be higher than some alternatives, their reliability and low maintenance needs often result in lower long-term operational costs.
- High Sensitivity: They are capable of detecting minute changes in force, making them ideal for sensitive applications.
- Robust Construction: Designed to withstand harsh conditions, they are less likely to fail under extreme environmental factors compared to other types of load cells.
Many modern bending beam load cells come equipped with advanced features that enhance their performance:
- Digital Output Options: Some models provide digital outputs that simplify integration with modern control systems and data acquisition devices.
- Temperature Compensation: Advanced designs include temperature compensation features that help maintain accuracy across varying environmental conditions.
- Modular Designs: Certain bending beam load cells are modular, allowing users to replace components easily rather than replacing the entire unit when repairs are needed.
Despite their advantages, there are challenges associated with using bending beam load cells:
- Installation Sensitivity: Improper installation can lead to inaccurate readings due to misalignment or mechanical stress on the cell itself.
- Calibration Needs: Regular calibration is necessary but can be time-consuming; neglecting this can lead to significant inaccuracies over time.
While bending beam load cells are generally robust, they may face limitations in extreme environments:
- Extreme Temperatures: While many models are designed to operate within a specific temperature range, extreme temperatures outside this range can affect performance and accuracy.
- Vibration Sensitivity: In environments with high levels of vibration (such as manufacturing floors), bending beam load cells may experience interference that affects measurement accuracy unless properly isolated.
To enhance the accuracy and reliability of bending beam load cells, consider the following best practices:
1. Proper Installation: Ensure that the load cell is installed correctly to avoid misalignment or undue stress.
2. Regular Calibration: Schedule regular calibration checks based on usage frequency and environmental conditions.
3. Environmental Controls: Implement measures to mitigate temperature fluctuations and humidity effects on performance.
4. Use Quality Equipment: Invest in high-quality bending beam load cells from reputable manufacturers.
5. Monitor Performance Metrics: Regularly check performance metrics such as linearity and hysteresis during operation.
6. Employ Isolation Techniques: Use vibration isolation mounts or other techniques if operating in high-vibration environments to maintain measurement integrity.
7. Training Personnel: Ensure that personnel involved in installation and maintenance are well-trained on best practices for handling and calibrating bending beam load cells.
As technology advances, we see several trends emerging in the field of load cell technology:
- Smart Sensors Integration: The integration of IoT technology allows bending beam load cells to communicate data wirelessly, providing real-time monitoring capabilities that enhance operational efficiency.
- Artificial Intelligence (AI): AI algorithms can analyze data from bending beam load cells for predictive maintenance purposes, identifying potential failures before they occur based on historical performance data.
- Enhanced Materials Science: Ongoing research into new materials may lead to even more robust designs capable of functioning under extreme conditions while maintaining high levels of accuracy.
Bending beam load cells are an excellent choice for applications requiring high accuracy and reliability. Their ability to measure both tension and compression forces, combined with their robust construction and compact design, makes them suitable for a wide range of industries. While they present certain challenges related to installation sensitivity and environmental factors, adhering to best practices significantly enhances their reliability and performance over time. As technology continues to evolve, we can expect further improvements in their functionality and integration into modern systems.
A bending beam load cell is a device that measures force by converting mechanical stress into an electrical signal through strain gauges attached to a bending beam.
Bending beam load cells typically achieve accuracies within ±0.03% to ±0.1% of full-scale output (FSO), depending on design quality and application conditions.
They are used in industrial manufacturing, food processing, pharmaceuticals, automotive testing, aerospace testing, construction monitoring, medical devices, and research laboratories where precise weight measurements are crucial.
It is generally recommended to calibrate bending beam load cells at least once a year or more frequently if used in critical applications or harsh environments.
Factors include linearity, hysteresis, repeatability, environmental conditions (like temperature and humidity), installation quality, calibration frequency, and external vibrations affecting performance.
