Beam load cells are essential components in various industrial and commercial applications, providing accurate measurements of weight and force. These devices convert mechanical force into an electrical signal, allowing for precise monitoring and control in processes ranging from manufacturing to logistics. Understanding how beam load cells work is crucial for anyone involved in industries that rely on weight measurement.
Beam load cells operate on the principle of strain gauges, which are devices that measure the amount of deformation (strain) experienced by an object when a force is applied. When a load is placed on a beam load cell, the beam bends slightly, and this deformation is detected by the strain gauges attached to the beam.
The basic operation of a beam load cell involves the following steps:
1. Application of Load: When a weight is applied to the load cell, it causes the beam to flex.
2. Deformation: This flexing results in a change in the length of the beam, creating tension on one side and compression on the other.
3. Strain Measurement: Strain gauges, which are bonded to the beam, detect this deformation. They change their electrical resistance in response to the strain.
4. Signal Conversion: The change in resistance is converted into an electrical signal, which is proportional to the amount of weight applied.
Strain gauges are critical to the functionality of beam load cells. They are typically made of a thin wire or foil arranged in a grid pattern. When the beam deforms, the strain gauges experience a change in length and width, altering their resistance. This change is measured and processed to provide an accurate weight reading.
The conversion process involves several components:
- Wheatstone Bridge Circuit: The strain gauges are often arranged in a Wheatstone bridge configuration, which enhances sensitivity and accuracy. This circuit allows for the precise measurement of small changes in resistance.
- Signal Conditioning: The raw electrical signal from the strain gauges is usually weak and requires amplification and filtering to produce a usable output.
- Output Signal: The final output is typically in the form of a voltage signal that can be read by a digital display or integrated into a larger control system.
There are two primary types of beam load cells: shear beam load cells and bending beam load cells. Each type has its unique characteristics and applications.

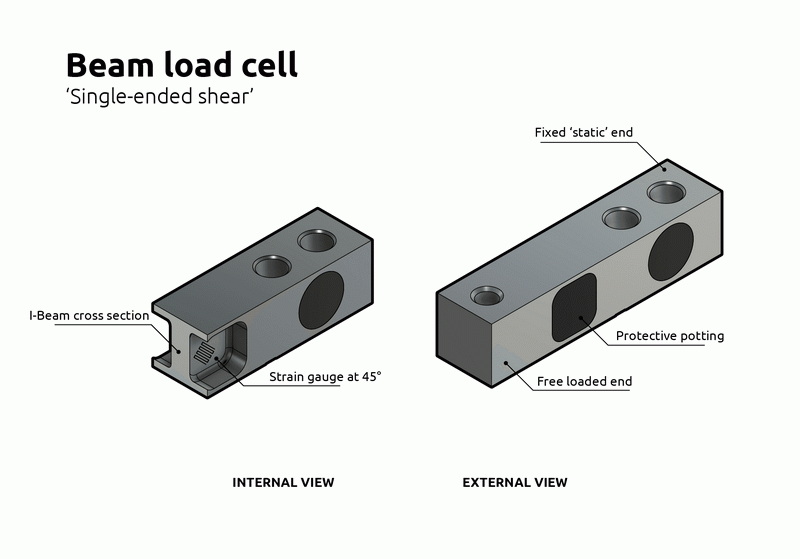

Shear beam load cells are designed to measure shear forces. They are commonly used in industrial weighing systems, such as tank and hopper scales. These load cells are known for their robustness and ability to handle high capacities.

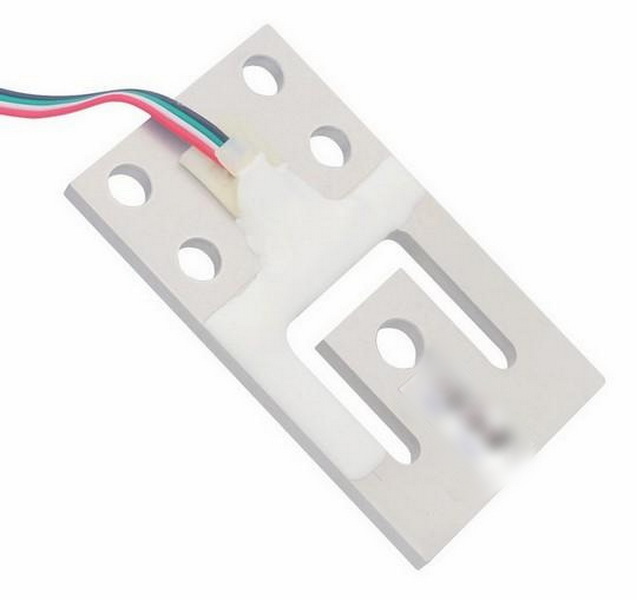

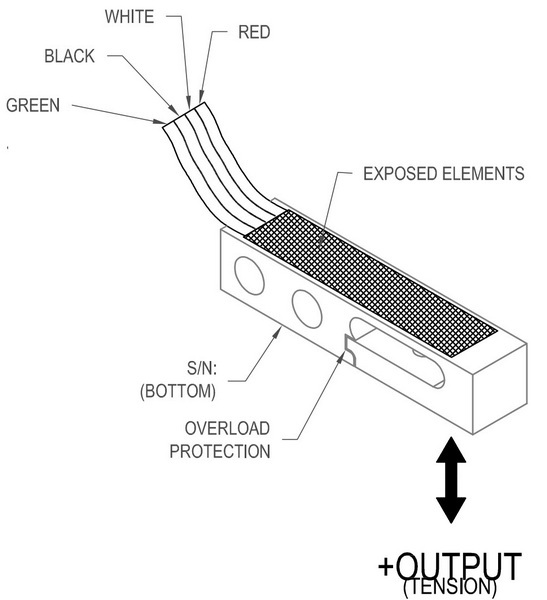

Bending beam load cells measure bending forces and are often used in applications where space is limited. They are versatile and can be found in various settings, from laboratory scales to industrial machinery.
While both shear and bending beam load cells serve similar purposes, they differ in design and application. Shear beam load cells are typically more robust and suitable for heavy-duty applications, whereas bending beam load cells are more compact and ideal for lighter loads.
Beam load cells are utilized in a wide range of applications across various industries.
In industrial settings, beam load cells are used for:
- Weighing raw materials and finished products
- Monitoring production processes
- Quality control in manufacturing
In commercial environments, these load cells are found in:
- Retail scales for weighing products
- Shipping and logistics for accurate weight measurement
- Food processing for portion control
Beam load cells are also essential in research and development, where precise measurements are critical for experiments and product testing.
Proper installation and calibration of beam load cells are vital for accurate measurements.

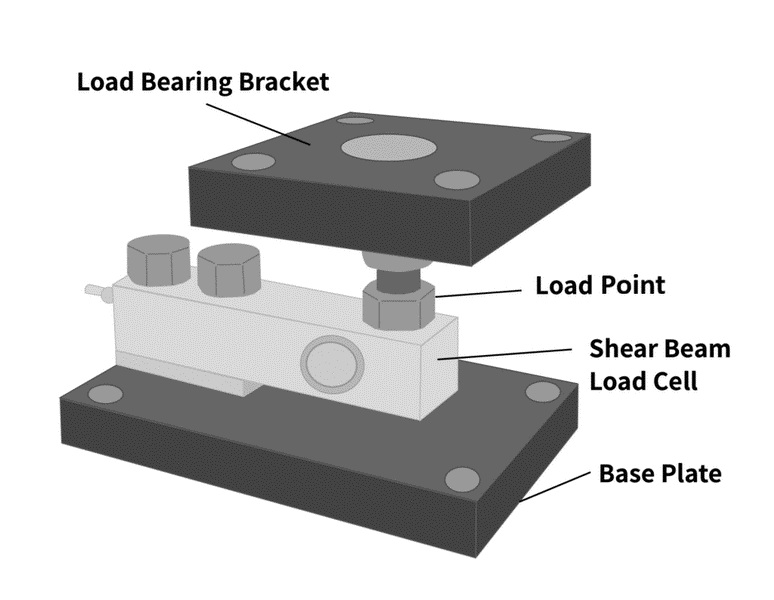

1. Mounting: Ensure the load cell is mounted securely and aligned correctly to avoid misreadings.
2. Wiring: Connect the load cell to the appropriate signal conditioning equipment, following the manufacturer's guidelines.
3. Testing: Perform initial tests to verify that the load cell is functioning correctly.
Calibration is necessary to ensure that the load cell provides accurate readings. This process involves comparing the load cell's output against known weights and adjusting the system accordingly.
Common issues with beam load cells include:
- Drift in readings over time
- Environmental factors affecting performance
- Mechanical damage from excessive loads
Regular maintenance and recalibration can help mitigate these issues.
Beam load cells offer several advantages that make them a popular choice in various applications.
Beam load cells are known for their high accuracy and reliability, making them suitable for critical measurements in industrial processes.
These load cells can be used in a wide range of applications, from simple weighing scales to complex industrial systems.
Compared to other types of load cells, beam load cells are often more cost-effective, providing excellent performance without a high price tag.
Beam load cells play a crucial role in modern weighing systems, providing accurate and reliable measurements across various industries. Understanding their operation, types, applications, and installation processes is essential for anyone involved in weight measurement. As technology advances, the future of beam load cells looks promising, with potential improvements in accuracy, durability, and integration with digital systems.
Shear beam load cells measure shear forces and are typically used in heavy-duty applications, while bending beam load cells measure bending forces and are more compact, suitable for lighter loads.
Calibration involves comparing the load cell's output against known weights and adjusting the system to ensure accurate readings.
Common applications include industrial weighing, retail scales, shipping and logistics, and research and development.
Environmental factors such as temperature, humidity, and vibration can impact the accuracy and reliability of load cell measurements.
Regular maintenance includes checking for mechanical damage, recalibrating periodically, and ensuring proper installation to maintain accuracy.
