In today's precision-driven industrial landscape, accurate measurement is not just a luxury – it's a necessity. The 100 lb load cell represents a pinnacle of weighing technology, offering unprecedented accuracy and reliability in force measurement applications. This sophisticated instrument has revolutionized how we approach weight measurement across various industries, from manufacturing to research and development.
Load cells are transducers that convert mechanical force into measurable electrical signals. The 100 lb load cell, specifically designed for precision measurements up to 100 pounds, utilizes strain gauge technology to achieve highly accurate results. These devices work on the principle of electrical resistance change when force is applied, providing reliable and repeatable measurements.

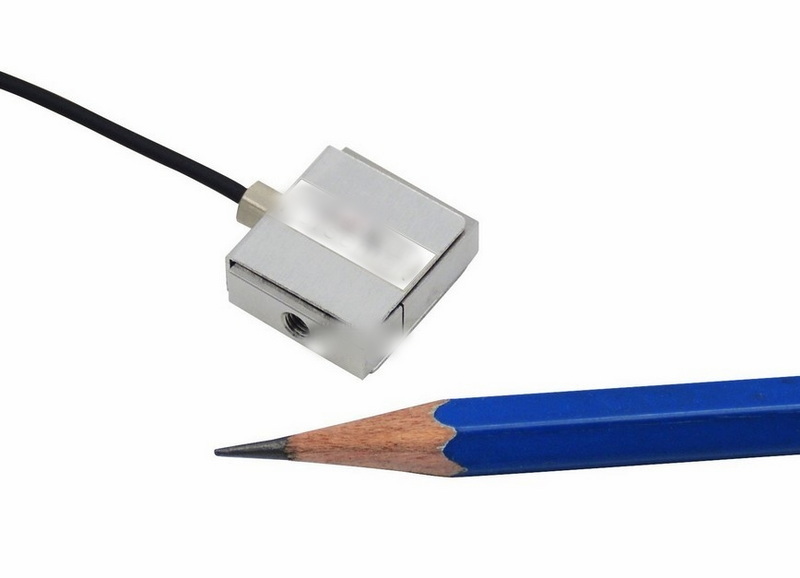

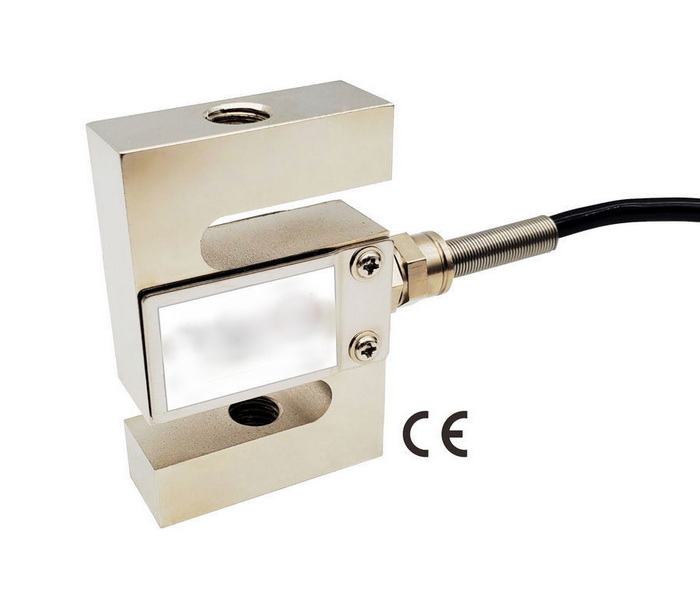

1. S-Beam Load Cells
- Ideal for both tension and compression applications
- Excellent side load rejection
- Compact design for space-restricted installations
2. Compression Load Cells
- Designed specifically for compression force measurement
- Robust construction for industrial environments
- High accuracy in vertical force applications
3. Tension Load Cells
- Specialized for pulling force measurements
- Enhanced stability for dynamic loads
- Versatile mounting options
The 100 lb load cell finds extensive use in various industrial applications:
- Process control and automation systems
- Quality control checkweighing stations
- Material testing and verification procedures
- Production line integration for continuous monitoring
In research settings, these load cells are crucial for:
- Product testing and validation processes
- Material strength analysis
- Prototype evaluation procedures
- Scientific experiments requiring precise force measurements
Quality assurance teams rely on 100 lb load cells for:
- Component testing and verification
- Product compliance testing
- Performance validation
- Durability testing
The precision offered by 100 lb load cells includes:
- High-resolution measurements
- Repeatable results for consistent operation
- Temperature-compensated readings
- Minimal hysteresis effect
These load cells are built to last:
- Robust construction for industrial environments
- Protection against environmental factors
- Long-term stability
- Minimal maintenance requirements
Implementing 100 lb load cells provides:
- Reduced waste through precise measurements
- Lower operational costs
- Improved product quality
- Extended equipment lifespan
Proper calibration ensures optimal performance:
1. Zero balance adjustment
2. Span calibration
3. Linearity verification
4. Temperature compensation
5. Documentation and certification
To maintain optimal performance:
- Regular cleaning and inspection
- Protection from environmental factors
- Proper mounting and installation
- Periodic performance verification
Watch this detailed calibration tutorial:
The 100 lb load cell stands as a cornerstone of modern precision measurement technology. Its implementation can significantly improve weighing accuracy, leading to enhanced product quality, reduced waste, and improved operational efficiency. By understanding its capabilities and maintaining proper calibration, organizations can maximize the benefits of this essential measurement tool.
A 100 lb load cell typically offers accuracy within ±0.1% to ±0.25% of full scale, depending on the quality and class of the load cell. This translates to precise measurements within 0.1 to 0.25 pounds at full capacity.
Load cells should be calibrated at least annually, but more frequent calibration may be necessary depending on usage, environmental conditions, and industry requirements. Some applications may require quarterly or even monthly calibration.
Key factors include:
- Temperature variations
- Humidity levels
- Mechanical alignment
- Electrical interference
- Physical damage or wear
- Installation quality
Yes, but the accuracy might be compromised at very low weights. It's recommended to use a load cell rated closer to the target weight range for optimal accuracy. Generally, measurements between 10% and 100% of the rated capacity provide the best results.
Most 100 lb load cells operate on excitation voltages between 5-15 VDC, with 10 VDC being the most common. Power consumption is typically low, making them suitable for both portable and fixed installations.
