In the rapidly evolving world of automotive engineering, the quest for precision and performance is relentless. As vehicles become more sophisticated, the methods used to test and optimize their performance must also advance. One of the most significant innovations in this field is the use of load cells, particularly in dynamometer (dyno) setups. Load cells are essential devices that measure force or weight, and their application in engine performance testing can fundamentally change how we understand and enhance vehicle performance. This article delves into the fundamental principles of load cells, their applications in engine performance testing, and the future of this technology.
Load cells operate on a straightforward principle: they convert a force applied to them into an electrical signal. This process typically involves a strain gauge, which is a device that measures the amount of deformation (strain) experienced by an object when a force is applied. When a load is applied to the load cell, the strain gauge deforms, causing a change in its electrical resistance. This change is then converted into a measurable electrical signal, which can be interpreted by a computer or display.

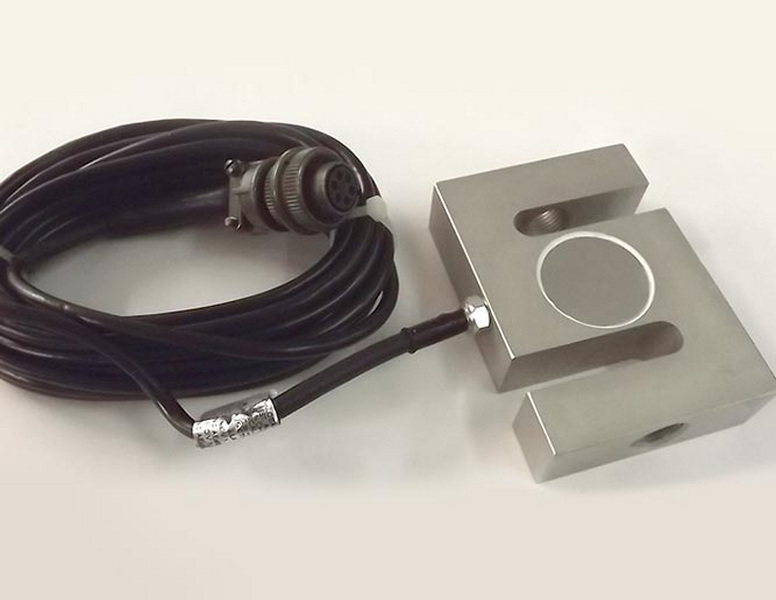

There are several types of load cells, including S-type, shear beam, and compression load cells. Each type has its unique characteristics and applications. For instance, S-type load cells are often used in applications requiring high accuracy and are commonly found in laboratory settings. In contrast, shear beam load cells are widely used in industrial applications due to their robustness and reliability.
Engine performance testing is crucial for several reasons. First, it allows manufacturers to ensure that their engines meet specific performance standards and regulatory requirements. Second, it helps in identifying areas for improvement, whether in terms of power output, fuel efficiency, or emissions. Finally, performance testing is essential for tuning and optimizing engines for specific applications, such as racing or off-road driving.
Without accurate testing methods, manufacturers and tuners would struggle to understand how changes to engine components affect overall performance. This is where load cells come into play, providing the necessary data to make informed decisions.
Load cells are integral to measuring torque and power output in engine performance testing. When an engine is tested on a dynamometer, the load cell measures the torque produced by the engine. This measurement is crucial because torque is a direct indicator of an engine's performance capabilities.

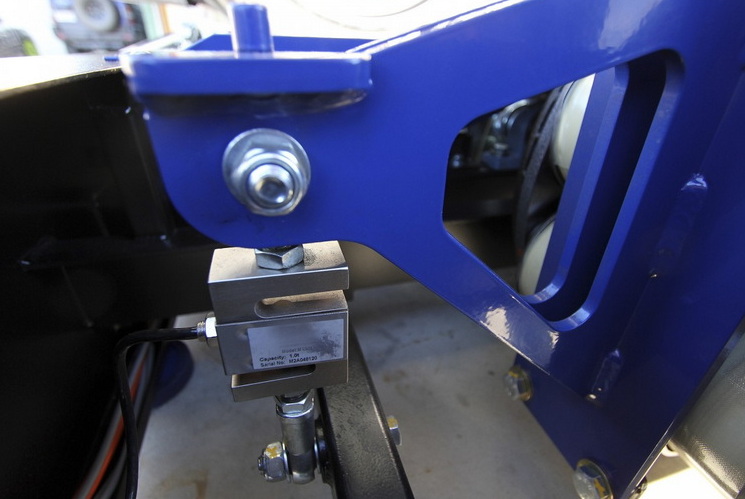

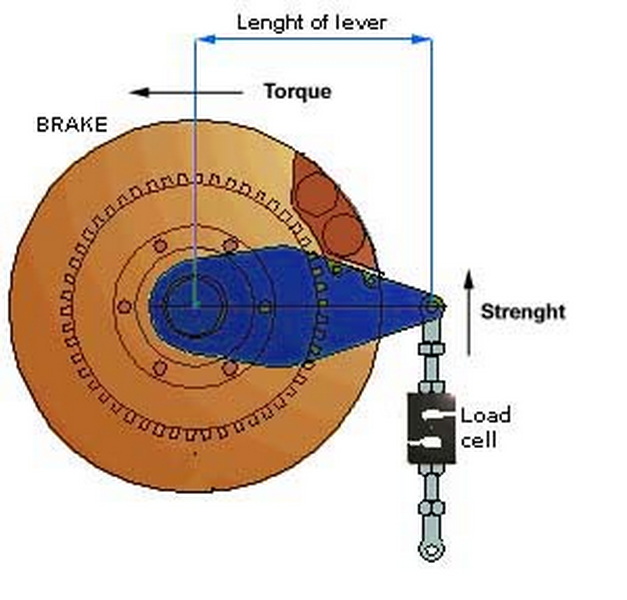

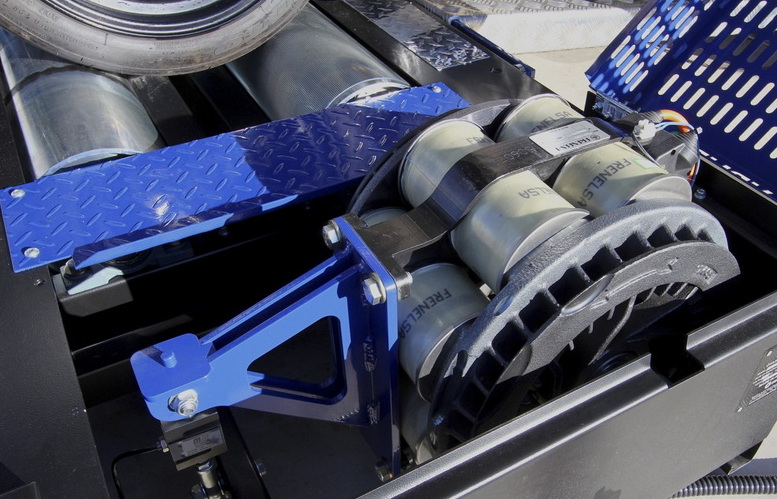

In a typical dyno setup, the engine is connected to a load cell, which is part of a larger system that includes a brake or a roller. As the engine runs, the load cell measures the force exerted on it, which is then used to calculate the torque. This torque measurement, combined with the engine's RPM (revolutions per minute), allows for the calculation of power output using the formula:
Power (HP) = (Torque (lb-ft) × RPM) / 5252
This formula highlights the relationship between torque and power, emphasizing the importance of accurate load cell measurements in performance testing.
Calibration is a critical aspect of using load cells in engine performance testing. Proper calibration ensures that the measurements obtained are accurate and reliable. The calibration process typically involves applying known weights to the load cell and recording the corresponding output signals. This data is then used to create a calibration curve, which can be applied to future measurements to ensure accuracy.
Regular calibration is essential, especially in high-stakes environments like racing or performance tuning, where even minor inaccuracies can lead to significant performance discrepancies. Best practices for calibration include using certified weights, performing calibrations at regular intervals, and documenting all calibration procedures.
Several case studies illustrate the successful application of load cells in engine performance testing. For instance, a well-known automotive manufacturer utilized load cells in their testing facilities to optimize their new line of high-performance engines. By measuring torque and power output with precision, they were able to identify inefficiencies in their designs and make necessary adjustments before the engines went into production.
Another example comes from the world of motorsports, where teams rely heavily on load cells to fine-tune their engines for maximum performance. By analyzing the data collected from load cells during testing, teams can make informed decisions about modifications to engine components, ultimately leading to improved lap times and competitive advantages.
The future of load cell technology in engine performance testing looks promising. As technology continues to advance, we can expect to see improvements in load cell accuracy, reliability, and ease of use. One significant trend is the integration of digital technology, which allows for real-time data collection and analysis. This capability enables engineers to make immediate adjustments during testing, leading to more efficient optimization processes.
Wireless load cells are also gaining popularity, eliminating the need for cumbersome cables and allowing for greater flexibility in testing setups. Additionally, advancements in software and data analysis tools will enable more sophisticated interpretations of load cell data, providing deeper insights into engine performance.
Load cells are revolutionizing engine performance testing by providing accurate and reliable measurements of torque and power output. Their application in dynamometer setups allows manufacturers and tuners to optimize engine performance, ensuring that vehicles meet the highest standards of efficiency and power. As technology continues to evolve, the role of load cells in automotive testing will only become more critical, paving the way for innovations that enhance vehicle performance and safety.
A load cell is a device that converts a force applied to it into an electrical signal. It typically uses a strain gauge to measure deformation caused by the applied force, which is then converted into a measurable output.
Engine performance testing is essential for ensuring that engines meet performance standards, identifying areas for improvement, and optimizing engines for specific applications.
Load cells measure torque by detecting the force exerted on them when an engine is running. This measurement, combined with the engine's RPM, allows for the calculation of power output.
Common types of load cells include S-type, shear beam, and compression load cells, each with unique characteristics suited for different applications.
Load cells should be calibrated regularly, especially in high-stakes environments like racing or performance tuning, to ensure accurate and reliable measurements.
