Load cells are essential components in various industries, serving as the backbone of force measurement systems. They convert mechanical force into an electrical signal, allowing for precise weight and force measurements. However, the accuracy of these measurements heavily relies on the calibration of the load cells. Calibration is the process of adjusting and verifying the accuracy of measurement instruments, ensuring that they provide reliable and consistent results. In this article, we will explore the significance of load cell calibration, the calibration process, the equipment used, and the benefits of regular calibration.
Load cell calibration is a critical process that ensures the accuracy of load cells in measuring force and weight. A load cell operates by converting the force applied to it into an electrical signal, which can then be interpreted by a digital display or control system. The calibration process involves comparing the output of the load cell against known standards to determine its accuracy.
There are various types of load cells, including strain gauge load cells, hydraulic load cells, and pneumatic load cells, each with its specific applications. For instance, strain gauge load cells are commonly used in industrial weighing applications, while hydraulic load cells are often employed in heavy-duty applications such as truck scales and industrial scales.
Calibration standards play a vital role in ensuring the accuracy of load cell measurements. Standards such as ISO 7500-1 and ASTM E4 provide guidelines for the calibration process, ensuring that load cells meet specific accuracy requirements. Adhering to these standards is crucial for industries that rely on precise measurements, such as pharmaceuticals, food and beverage, and manufacturing.
The calibration process for load cells involves several steps to ensure accurate measurements.
Before beginning the calibration process, it is essential to prepare the load cell and the calibration equipment. This includes ensuring that the load cell is clean and free from any debris that could affect its performance. The calibration equipment, such as deadweight testers or calibration weights, should also be verified for accuracy.
One of the most common methods for calibrating load cells is through deadweight calibration. This method involves applying known weights to the load cell and recording the output signal. The load cell is subjected to a series of weights, typically ranging from zero to its maximum capacity.
During this process, the output signal of the load cell is measured and compared to the known weights. Any discrepancies between the expected output and the actual output signal indicate that the load cell requires adjustment.
Once the known weights have been applied, the next step is to record the output signals from the load cell. This data is then analyzed to determine the linearity and accuracy of the load cell. If the output signals do not align with the expected values, adjustments must be made to the load cell.
Calibration adjustments can involve modifying the load cell's zero balance, sensitivity, or gain. These adjustments ensure that the load cell provides accurate measurements across its entire range.
In addition to deadweight calibration, there are several other methods used for load cell calibration. Shunt calibration is a popular method that involves applying a known resistance to the load cell's output circuit. This method allows for quick adjustments without the need for physical weights.
Zero calibration is another essential process that ensures the load cell reads zero when no load is applied. This step is crucial for maintaining accuracy, especially in applications where the load cell may be subjected to varying environmental conditions.
The accuracy of load cell calibration is heavily dependent on the equipment used in the process. Various types of calibration equipment are available, each designed to meet specific calibration needs.

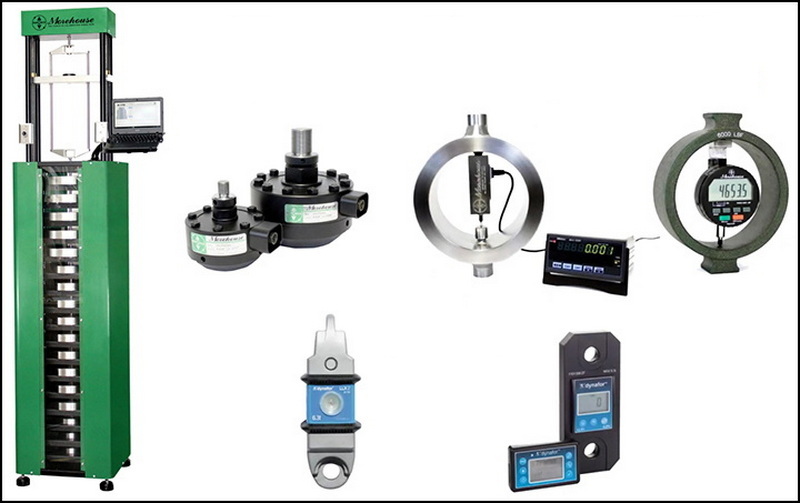

Calibration equipment includes deadweight testers, digital indicators, and calibration kits. Deadweight testers are considered the gold standard for load cell calibration, as they provide highly accurate known weights. These testers consist of a series of weights that are applied to the load cell, allowing for precise measurement comparisons.

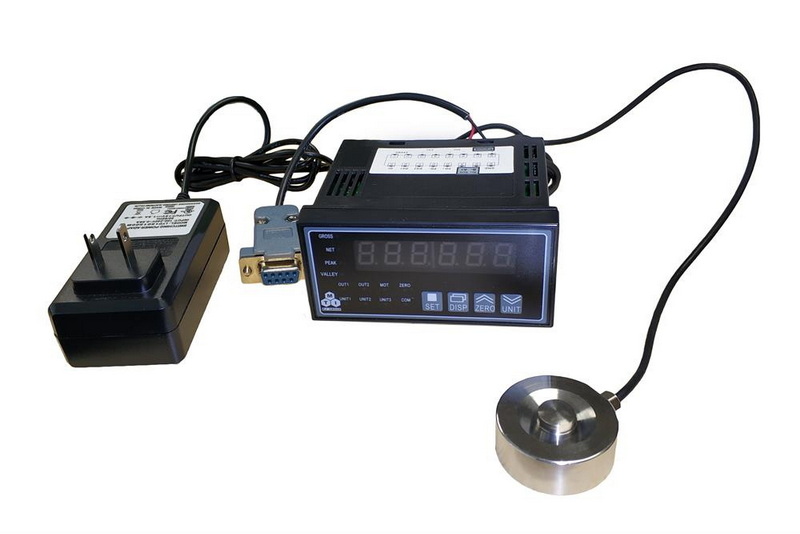

Digital indicators are used to display the output signal from the load cell during calibration. These indicators provide real-time data, making it easier to identify discrepancies and make necessary adjustments.

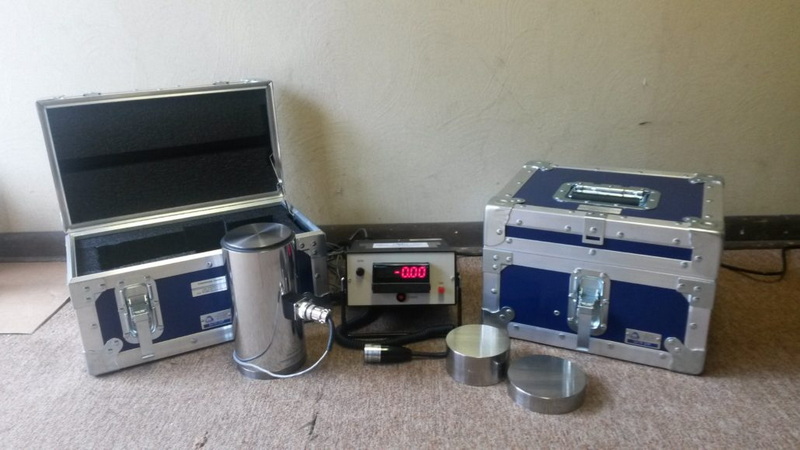

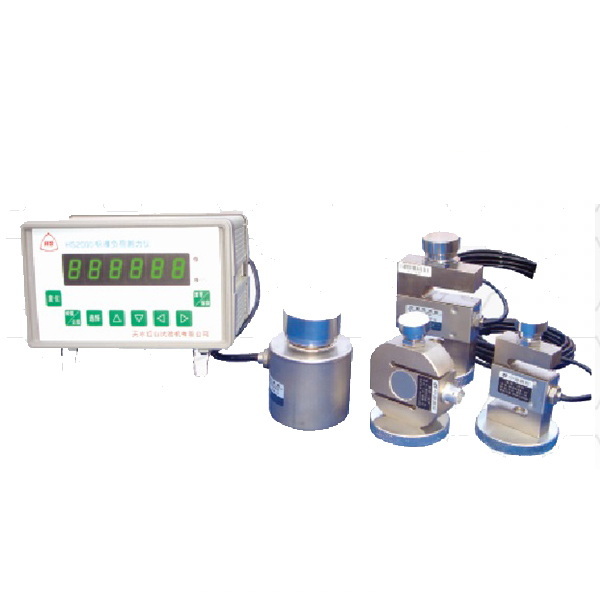

Calibration kits are also available, which typically include a combination of weights, digital indicators, and other necessary tools for load cell calibration. These kits are designed for ease of use and portability, making them ideal for field calibration.
When selecting a calibration kit, it is essential to consider the specific requirements of the application. Some kits are designed for general use, while others are tailored for specific industries or load cell types.
For example, a calibration kit for industrial load cells may include heavier weights and more robust equipment, while a kit for laboratory use may focus on precision and portability. It is crucial to choose a calibration kit that meets the accuracy and capacity requirements of the load cells being calibrated.
The precision of calibration equipment is paramount in ensuring accurate load cell measurements. Any inaccuracies in the calibration equipment can lead to erroneous measurements, compromising the integrity of the entire measurement system. Therefore, it is essential to regularly verify and maintain calibration equipment to ensure its accuracy.
Regular calibration of load cells offers numerous benefits that enhance measurement accuracy and reliability.
One of the primary benefits of regular calibration is the assurance of measurement accuracy. Load cells that are not calibrated regularly can drift over time, leading to inaccurate measurements. By calibrating load cells on a routine basis, industries can ensure that their measurements remain reliable and consistent.
Calibration helps to reduce measurement uncertainties, which can arise from various factors such as temperature fluctuations, mechanical wear, and environmental conditions. By regularly calibrating load cells, industries can minimize these uncertainties and improve the overall quality of their measurements.
In industries where precise force measurements are critical, such as pharmaceuticals and food processing, regular calibration is essential for maintaining safety standards. Inaccurate measurements can lead to product inconsistencies, safety hazards, and regulatory non-compliance. Regular calibration ensures that load cells operate within specified tolerances, enhancing safety and compliance.
Accurate load cell calibration is vital for ensuring measurement precision in various industries. By understanding the calibration process, utilizing the right equipment, and recognizing the benefits of regular calibration, industries can enhance their measurement accuracy and reliability. Investing in proper load cell calibration equipment and services is essential for maintaining the integrity of measurement systems and ensuring compliance with industry standards.
Load cell calibration ensures that the load cell provides accurate and reliable measurements by comparing its output against known standards.
The frequency of calibration depends on the application and industry standards, but it is generally recommended to calibrate load cells at least once a year or whenever there are significant changes in the environment or load conditions.
Common methods for calibrating load cells include deadweight calibration, shunt calibration, and zero calibration.
Essential equipment for load cell calibration includes deadweight testers, digital indicators, and calibration kits.
Temperature fluctuations can affect the performance of load cells, leading to measurement inaccuracies. Regular calibration helps to account for these variations and maintain measurement precision.
