Load cells are essential components in various applications, from industrial scales to medical devices, where precise weight measurement is crucial. A load cell converts a force or weight into an electrical signal, which can then be measured and interpreted. Among the different configurations of load cells, the 4-wire load cell is widely used due to its accuracy and reliability. This article will explore the wiring of a 4-wire load cell, focusing on the wiring color code, installation steps, troubleshooting tips, and more.

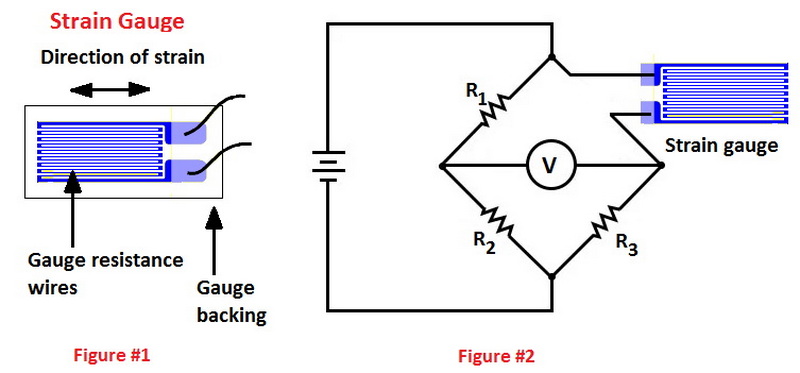

Before diving into the specifics of wiring a 4-wire load cell, it is important to understand the basic components of a load cell. A load cell typically consists of a metal body, strain gauges, and electrical connections. The strain gauges are bonded to the metal body and change their resistance when the body is deformed under load. This change in resistance is what the load cell measures and converts into an electrical signal.
Correct wiring is crucial for ensuring that the load cell functions accurately. The 4-wire configuration is preferred because it minimizes the effects of resistance in the wiring, which can lead to measurement errors. In this configuration, two wires are used for supplying power to the load cell, and two wires are used for the signal output.
The wiring color code for a 4-wire load cell is standardized, making it easier to connect the load cell correctly. Here is a breakdown of the color codes:
- Red: Excitation (+)
- Black: Excitation (-)
- Green: Signal (+)
- White: Signal (-)
Understanding these color codes is essential for proper installation. Incorrect wiring can lead to inaccurate measurements or even damage to the load cell.
Wiring a 4-wire load cell may seem daunting, but with the right tools and a clear understanding of the process, it can be accomplished with ease. Here's a step-by-step guide to help you through the installation.
Before starting, gather the following tools and materials:
- 4-wire load cell
- Wire stripper
- Soldering iron (if necessary)
- Heat shrink tubing or electrical tape
- Multimeter
- Power supply
- Load cell amplifier or indicator
Begin by stripping the ends of the wires on the load cell. Use a wire stripper to remove about 1/4 inch of insulation from each wire. Be careful not to damage the wire strands.
Next, connect the excitation wires. The red wire (Excitation +) should be connected to the positive terminal of your power supply. The black wire (Excitation -) should be connected to the negative terminal. This connection provides the necessary power for the load cell to operate.
After connecting the excitation wires, proceed to connect the signal wires. The green wire (Signal +) should be connected to the positive input of your load cell amplifier or indicator. The white wire (Signal -) should be connected to the negative input. This connection allows the load cell to send its measurement signal to the amplifier.
Once all connections are made, it is important to insulate them to prevent short circuits. Use heat shrink tubing or electrical tape to cover the exposed wire connections. This step is crucial for ensuring the longevity and reliability of your load cell installation.
Before finalizing the installation, use a multimeter to test the connections. Check for continuity in the wires and ensure that the voltage levels are correct. This step helps identify any potential issues before the load cell is put into operation.
After confirming that the wiring is correct, the load cell must be calibrated. Calibration involves applying known weights to the load cell and adjusting the output signal to match the expected values. This process ensures that the load cell provides accurate measurements.
Even with careful installation, issues can arise with load cell wiring. Here are some common problems and their solutions:
If the load cell provides inconsistent readings, check the wiring connections. Loose or corroded connections can lead to fluctuating signals. Ensure that all connections are secure and free from corrosion.
If there is no signal output from the load cell, verify that the excitation wires are connected correctly. Use a multimeter to check the voltage levels at the load cell. If the voltage is absent, there may be an issue with the power supply.
Overloading can damage the load cell and lead to inaccurate measurements. Always ensure that the load applied does not exceed the load cell's rated capacity. If overloading occurs, consider using a load cell with a higher capacity.
Electrical noise from nearby equipment can interfere with the load cell's signal. To minimize this, use shielded cables for the signal wires and ensure that the load cell is grounded properly.
Temperature changes can affect the performance of a load cell. If measurements vary significantly with temperature fluctuations, consider using a load cell with temperature compensation features.
Wiring a 4-wire load cell is a straightforward process that, when done correctly, can lead to accurate and reliable measurements. By understanding the wiring color code, following the step-by-step guide, and troubleshooting common issues, you can ensure that your load cell operates effectively. Proper installation and calibration are key to achieving the best performance from your load cell.
A 3-wire load cell uses one wire for excitation and two for the signal, while a 4-wire load cell uses two wires for excitation and two for the signal. The 4-wire configuration reduces the effects of resistance in the wiring, leading to more accurate measurements.
You can test a load cell by applying known weights and checking if the output signal matches the expected values. Additionally, using a multimeter to check the voltage levels can help identify any issues.
While it is technically possible, it is not recommended. Using a 4-wire load cell with a 3-wire amplifier can lead to inaccuracies due to the different wiring configurations. It is best to use compatible components.
If your load cell is overloaded, immediately remove the excess weight to prevent damage. Consider replacing it with a load cell that has a higher capacity for future applications.
Calibration frequency depends on the application and usage conditions. It is generally recommended to calibrate load cells at least once a year or whenever significant changes in the environment or load conditions occur.
