Load cells are essential components in various industries, providing precise measurements of force or weight. They are widely used in applications ranging from industrial scales to medical devices. The accuracy of these measurements heavily relies on the load cell readouts, which convert the electrical signals generated by the load cells into readable data. This article explores the significance of load cell readouts, how to ensure accurate measurements, and troubleshooting common issues.
Load cells are transducers that convert a force into an electrical signal. They come in various types, including strain gauge, hydraulic, and pneumatic load cells. Strain gauge load cells are the most common, utilizing the principle of strain gauge technology to measure deformation caused by applied loads.
1. Strain Gauge Load Cells: These are the most widely used load cells, known for their accuracy and reliability. They work by measuring the change in resistance of a wire or foil strain gauge as it deforms under load.
2. Hydraulic Load Cells: These load cells use fluid pressure to measure weight. They are often used in heavy-duty applications where high capacity is required.
3. Pneumatic Load Cells: Utilizing air pressure, these load cells are suitable for applications requiring high sensitivity and low weight.
Each type of load cell has its unique applications, making it crucial to select the right one for specific measurement needs.

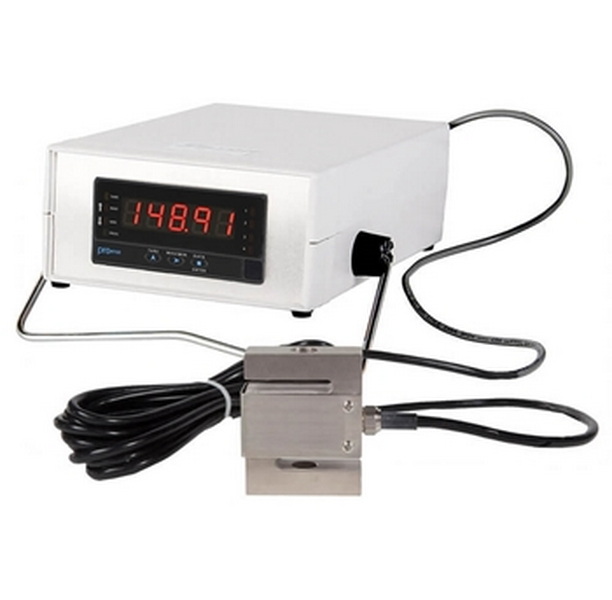

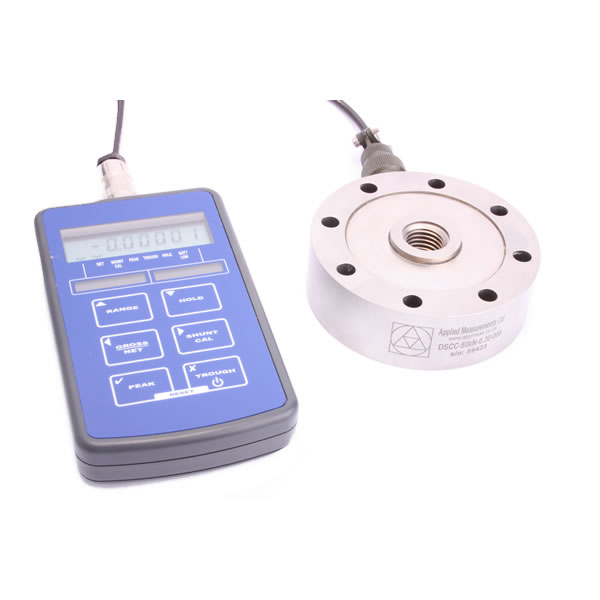

Load cell readouts are devices that interpret the electrical signals from load cells and display them in a user-friendly format. They play a critical role in ensuring that the data collected is accurate and reliable.
Load cell readouts convert the analog signals from load cells into digital data, which can be displayed on screens or transmitted to computers for further analysis. This conversion process is vital for accurate measurements, as it allows for real-time monitoring and data logging.
To achieve accurate measurements with load cell readouts, several factors must be considered:
Calibration is the process of adjusting the load cell readout to ensure that it provides accurate measurements. Regular calibration is essential, especially in environments where load cells are frequently used.
1. Initial Calibration: When a load cell is first installed, it should be calibrated using known weights to establish a baseline.
2. Periodic Calibration: Over time, load cells can drift due to environmental factors or wear and tear. Regular checks and recalibrations help maintain accuracy.
Proper installation of load cells is crucial for accurate measurements. Misalignment or improper mounting can lead to erroneous readings.
1. Alignment: Ensure that the load cell is aligned with the load application direction. Any misalignment can introduce measurement errors.
2. Mounting: Use appropriate mounting hardware and techniques to secure the load cell in place. Vibration or movement can affect the readings.
Environmental factors such as temperature, humidity, and electromagnetic interference can impact load cell performance.
1. Temperature: Load cells should be operated within their specified temperature range. Extreme temperatures can affect the material properties and lead to inaccurate readings.
2. Humidity: High humidity can cause corrosion or affect the electrical components of the load cell. Ensure that load cells are protected from moisture.
3. Electromagnetic Interference: Load cells can be sensitive to electromagnetic fields. Use shielded cables and proper grounding techniques to minimize interference.
Despite best efforts, issues can arise with load cells and their readouts. Here are some common problems and their solutions:
Inconsistent readings can be frustrating and may indicate a problem with the load cell or readout.
- Solution: Check for loose connections, ensure proper calibration, and verify that the load cell is correctly aligned.
Drift refers to a gradual change in the readings over time, even when the load remains constant.
- Solution: Regular calibration and environmental control can help mitigate drift. If drift persists, inspect the load cell for damage.
Exceeding the load cell's capacity can lead to permanent damage and inaccurate readings.
- Solution: Always adhere to the manufacturer's specified load limits. Use overload protection devices if necessary.
Electrical noise can interfere with the signals from the load cell, leading to inaccurate readings.
- Solution: Use shielded cables, proper grounding, and signal conditioning techniques to reduce noise.
Problems with the readout display can hinder data interpretation.
- Solution: Check the power supply, connections, and settings on the readout device. Resetting the device may also resolve display issues.
Modern load cell readouts come equipped with advanced features that enhance their functionality.
Digital indicators provide clear and precise readings, often with the ability to display multiple units of measurement. They may also include features such as tare functions, peak hold, and data logging capabilities.
Signal conditioning is essential for improving the quality of the signals from load cells. This process involves filtering out noise and amplifying the signals to ensure accurate readings.
Data acquisition systems allow for the collection and analysis of data from multiple load cells simultaneously. This capability is particularly useful in research and industrial applications where comprehensive data analysis is required.
Ensuring accurate measurements with load cell readouts is vital for various applications across industries. By understanding the principles of load cells, the importance of proper calibration, installation, and environmental considerations, users can achieve reliable and precise measurements. Troubleshooting common issues and utilizing advanced features of load cell readouts further enhances measurement accuracy.
The lifespan of a load cell can vary based on usage, environmental conditions, and maintenance. Generally, a well-maintained load cell can last several years, but regular checks and calibrations are essential for longevity.
Load cells should be calibrated at least once a year, but more frequent calibration may be necessary in high-use environments or when significant changes in temperature or humidity occur.
Yes, load cells can be used outdoors, but they must be properly protected from environmental factors such as moisture, dust, and extreme temperatures. Using weatherproof enclosures can help.
Signs of a failing load cell include inconsistent readings, drift in measurements, physical damage, and failure to respond to applied loads. Regular maintenance and checks can help identify issues early.
Choosing the right load cell involves considering factors such as the required load capacity, environmental conditions, accuracy requirements, and the type of measurement needed. Consulting with a load cell manufacturer or expert can provide valuable guidance.
