In the world of measurement and weighing, precision is paramount. Load cells play a crucial role in ensuring that weighing scales provide accurate readings. These devices convert a force into an electrical signal, allowing for precise weight measurements in various applications, from industrial settings to healthcare. Understanding how load cells work and how to maintain their accuracy is essential for anyone involved in weighing processes. This article will explore the intricacies of load cells, their calibration, factors affecting their accuracy, troubleshooting common issues, and best practices for ensuring reliable measurements.
Load cells are transducers that convert mechanical force into an electrical signal. They are widely used in weighing scales due to their ability to provide accurate and reliable measurements. There are several types of load cells, each designed for specific applications:
- Strain Gauge Load Cells: These are the most common type of load cell. They use strain gauges to measure the deformation of a material when a load is applied. The change in resistance of the strain gauge is proportional to the weight applied.
- Digital Load Cells: These load cells have built-in electronics that convert the mechanical signal into a digital format. They offer advantages such as easier integration with digital displays and enhanced accuracy.
- Hydraulic Load Cells: These use fluid pressure to measure weight. They are often used in heavy-duty applications where high capacities are required.
Load cells find applications in various industries, including manufacturing, logistics, and healthcare. They are used in truck scales, platform scales, and medical scales, among others. The versatility and reliability of load cells make them indispensable in modern weighing systems.
Calibration is the process of adjusting the load cell to ensure that it provides accurate measurements. It is essential for maintaining the integrity of weighing scales. Over time, load cells can drift from their calibrated state due to factors such as temperature changes, mechanical stress, or wear and tear.
To calibrate a load cell, follow these steps:
1. Prepare the Equipment: Gather the necessary tools, including calibration weights, a digital multimeter, and a calibration device.
2. Zero the Load Cell: Before applying any weight, ensure that the load cell reads zero. This step is crucial for accurate measurements.
3. Apply Known Weights: Gradually apply known weights to the load cell and record the readings. This process helps establish a relationship between the applied weight and the output signal.
4. Adjust the Calibration: If the readings do not match the known weights, adjustments must be made. This may involve modifying the load cell's settings or replacing components.
5. Document the Calibration: Keep a record of the calibration process, including the weights used and the final adjustments made. This documentation is essential for quality control and compliance with industry standards.
Regular calibration is vital for ensuring that weighing scales provide accurate measurements. It is recommended to calibrate load cells at least once a year or more frequently if they are used in critical applications.
Several factors can influence the accuracy of weighing scales equipped with load cells. Understanding these factors is essential for maintaining precise measurements.
- Environmental Factors: Temperature and humidity can significantly affect load cell performance. Extreme temperatures can cause materials to expand or contract, leading to measurement errors. It is essential to operate load cells within their specified temperature range to ensure accuracy.

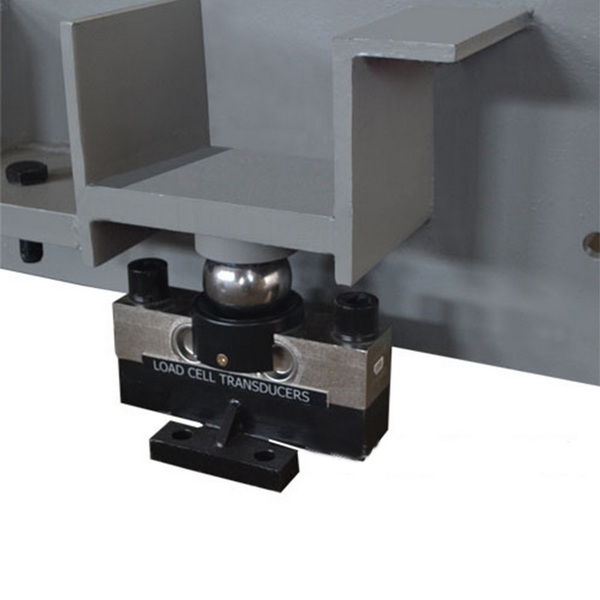

- Mechanical Factors: The installation of load cells is critical for accurate measurements. Improper alignment or positioning can lead to erroneous readings. Load cells should be installed according to the manufacturer's guidelines, ensuring that they are level and securely mounted.
- Electrical Factors: Load cells rely on electrical signals to provide measurements. Interference from nearby electrical equipment can disrupt these signals, leading to inaccurate readings. It is essential to use shielded cables and proper grounding techniques to minimize electrical noise.
- Load Cell Specifications: Each load cell has specific specifications, including capacity, sensitivity, and hysteresis. Using a load cell that is not suitable for the application can result in inaccurate measurements. It is crucial to select the right load cell based on the expected load and application requirements.
By understanding and addressing these factors, users can enhance the accuracy of their weighing scales and ensure reliable measurements.
Despite their reliability, load cells can encounter issues that affect their performance. Here are some common problems and troubleshooting steps:
- Drifting Readings: If the load cell readings fluctuate or drift over time, it may indicate a calibration issue. Recalibrate the load cell and check for any mechanical stress or environmental changes that may be affecting its performance.
- No Output Signal: If the load cell does not produce any output signal, check the wiring and connections. Ensure that the load cell is properly connected to the weighing scale and that there are no broken wires.
- Inconsistent Readings: Inconsistent readings can result from improper installation or external interference. Verify that the load cell is level and securely mounted. Additionally, check for any nearby electrical equipment that may be causing interference.
- Overloading: Exceeding the load cell's capacity can lead to permanent damage. Always ensure that the load applied does not exceed the specified capacity of the load cell.
- Temperature Effects: If the load cell is exposed to extreme temperatures, it may affect its performance. Ensure that the load cell operates within its specified temperature range and consider using temperature compensation techniques if necessary.
Regular maintenance and troubleshooting can help identify and resolve issues before they lead to significant measurement errors.
Load cells are essential components in weighing scales, providing accurate and reliable measurements across various applications. Understanding how load cells work, the importance of calibration, and the factors affecting their accuracy is crucial for anyone involved in weighing processes. By following best practices for installation, calibration, and maintenance, users can ensure that their weighing scales deliver precise measurements consistently.
In summary, load cells are vital for achieving accurate measurements in weighing scales. Regular calibration, awareness of environmental and mechanical factors, and effective troubleshooting can significantly enhance the performance of load cells. By prioritizing these practices, industries can maintain the integrity of their weighing processes and ensure compliance with quality standards.
A load cell is a transducer that converts mechanical force into an electrical signal. It works by measuring the deformation of a material when a load is applied, allowing for precise weight measurements.
Load cells should be calibrated at least once a year, or more frequently if they are used in critical applications where accuracy is essential.
The common types of load cells include strain gauge load cells, digital load cells, and hydraulic load cells, each designed for specific applications.
Factors affecting accuracy include environmental conditions (temperature and humidity), mechanical installation issues, electrical interference, and the specifications of the load cell used.
To troubleshoot inconsistent readings, check the installation for proper alignment, ensure there is no external interference, and verify that the load cell is calibrated correctly.
