Load cells are essential devices used in various industries to measure weight or force. They convert mechanical force into an electrical signal, which can then be quantified. The accuracy of these measurements is crucial, as it impacts everything from product quality to safety in industrial applications. This article explores the different types of load cells, how they affect measurement accuracy, and the factors that influence their performance.

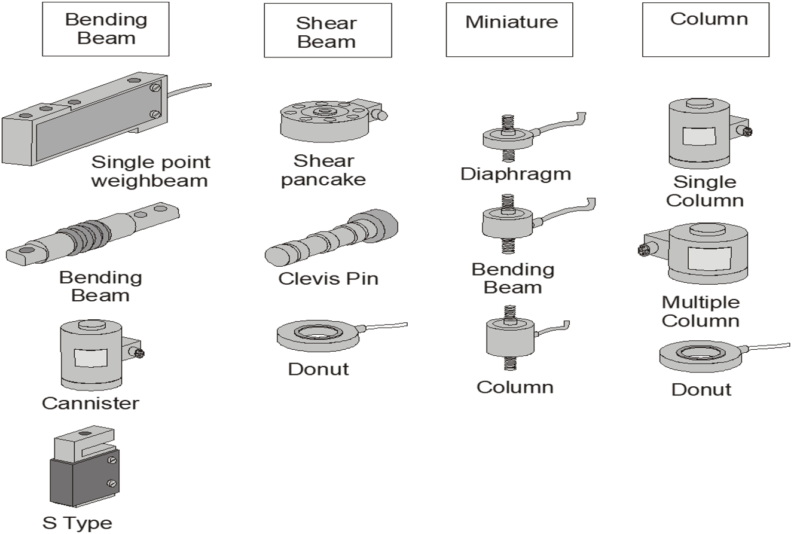

Load cells come in various types, each designed for specific applications and environments. The most common types include:
These are the most widely used load cells. They operate on the principle of strain gauges, which change resistance when stretched or compressed. Strain gauge load cells are known for their high accuracy and reliability.

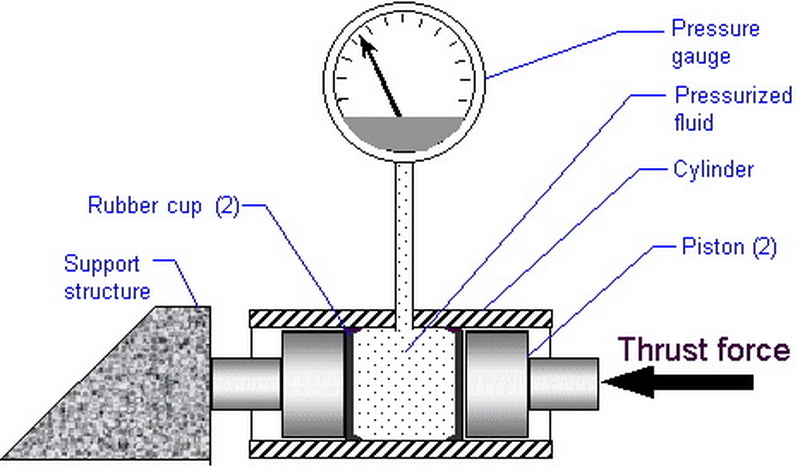

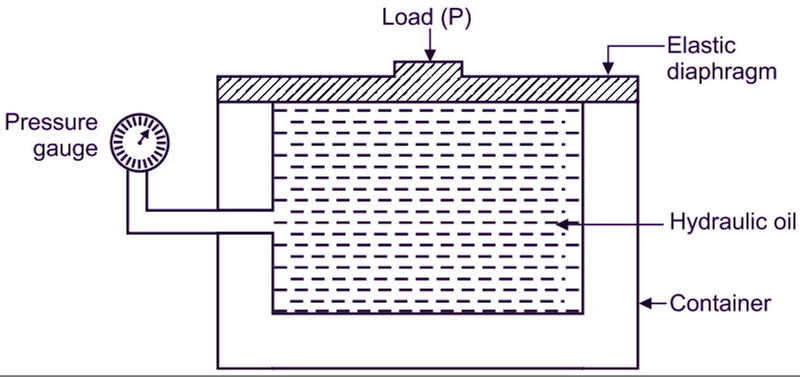

These load cells use hydraulic fluid to measure force. They are often used in heavy-duty applications, such as weighing trucks or large containers. While they can handle large loads, their accuracy can be affected by temperature changes and fluid viscosity.
Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are less common but can be useful in specific applications where electrical devices may pose a risk.

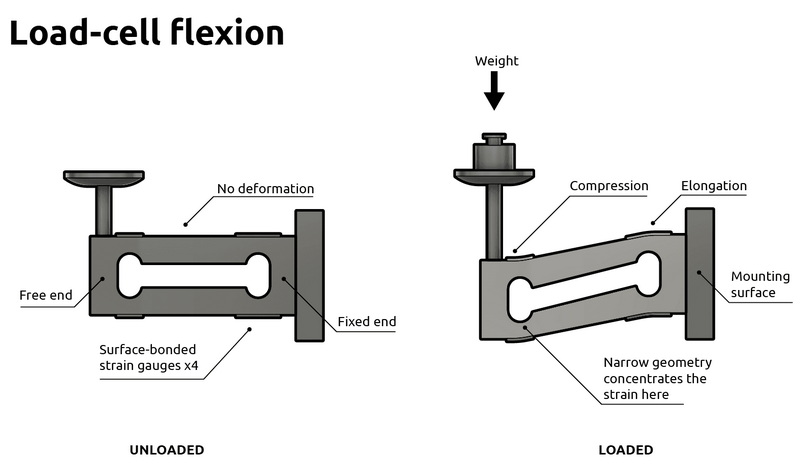

These load cells are designed to measure force through bending. They are often used in industrial scales and are known for their simplicity and cost-effectiveness.
These load cells are shaped like an "S" and are versatile for both tension and compression measurements. They are commonly used in laboratory settings and for dynamic measurements.
The accuracy of load cells can be influenced by several factors, including:
Calibration is critical for ensuring that a load cell provides accurate measurements. Regular calibration against known weights helps maintain accuracy over time. Without proper calibration, even the best load cells can produce erroneous readings.
Temperature, humidity, and pressure can all affect the performance of load cells. For instance, strain gauge load cells can experience drift in their readings if the temperature fluctuates significantly. It is essential to use load cells rated for the specific environmental conditions of their application.
The way a load cell is installed can also impact its accuracy. Misalignment, improper mounting, and excessive vibration can lead to measurement errors. Ensuring that the load cell is correctly positioned and secured is vital for accurate readings.
Different types of load cells have varying levels of accuracy. For example, strain gauge load cells typically offer higher accuracy compared to hydraulic load cells. Understanding the specific requirements of an application can help in selecting the appropriate load cell type.
The electrical signal produced by a load cell must be processed to obtain a readable output. Signal conditioning involves amplifying and filtering the signal to improve accuracy. Poor signal conditioning can lead to noise and inaccuracies in the final measurement.
The design of a load cell plays a significant role in its accuracy. Factors such as the materials used, the geometry of the load cell, and the technology employed (e.g., strain gauges vs. hydraulic systems) all contribute to how accurately a load cell can measure force.
The materials used in the construction of a load cell can affect its performance. High-quality materials that are resistant to environmental factors (like corrosion and temperature changes) will generally provide more reliable measurements.
The shape and size of a load cell can influence its sensitivity and accuracy. For example, a load cell designed with a larger surface area may distribute the load more evenly, reducing the risk of measurement errors.
Different technologies offer varying levels of precision. Strain gauge technology is often preferred for its high accuracy, while hydraulic systems may be chosen for their ability to handle larger loads, albeit with some trade-offs in precision.
Load cells are used in a wide range of applications, including:
◆ Industrial Weighing: Load cells are integral to industrial scales, ensuring accurate weight measurements for manufacturing and shipping.
◆ Medical Devices: In medical applications, load cells are used in devices like patient scales and infusion pumps, where precision is critical.
◆ Aerospace Testing: Load cells are employed in testing environments to measure forces on aircraft components, ensuring safety and performance standards are met.
◆ Automotive Testing: In the automotive industry, load cells help in crash testing and component testing, providing essential data for safety evaluations.
Understanding the different types of load cells and the factors that affect their accuracy is crucial for selecting the right load cell for any application. Whether it's a strain gauge load cell for high precision or a hydraulic load cell for heavy-duty applications, the choice can significantly impact measurement outcomes. Regular calibration, proper installation, and consideration of environmental factors are essential for maintaining accuracy.
Strain gauge load cells are generally considered the most accurate type due to their sensitivity and reliability.
Load cells should be calibrated at least once a year, or more frequently if they are used in critical applications.
Yes, temperature, humidity, and pressure can all impact the accuracy of load cells.
Signal conditioning involves amplifying and filtering the electrical signal from a load cell to improve measurement accuracy.
Proper installation ensures that the load cell is aligned and secured, reducing the risk of measurement errors caused by misalignment or vibration.
By understanding these aspects, users can make informed decisions when selecting and using load cells, ensuring accurate and reliable measurements in their applications.
