A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauges change their resistance, which can be measured and converted into a weight reading.

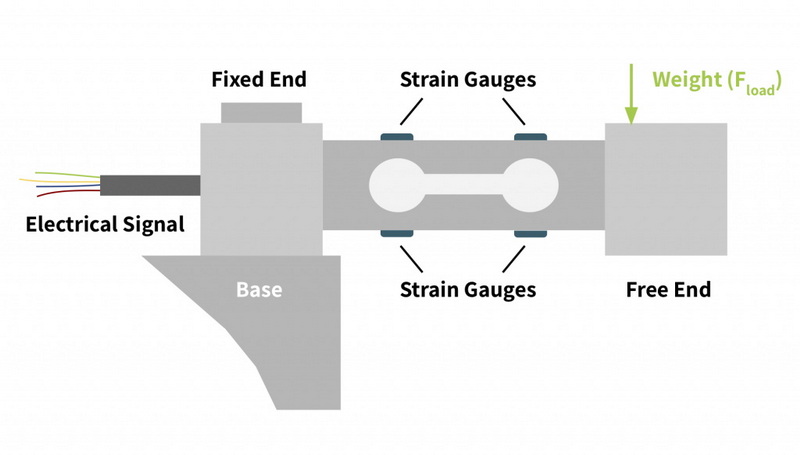

A typical load cell consists of several key components:
- Strain Gauges: These are the resistors that change resistance when deformed.
- Body: The structural part that supports the load.
- Wheatstone Bridge Circuit: A configuration of resistors that allows for precise measurement of resistance changes.
The Wheatstone bridge is a circuit used to measure unknown resistances by balancing two legs of a bridge circuit. In the context of load cells, it typically consists of four resistors arranged in a diamond shape. Two of these resistors are the strain gauges, while the other two are reference resistors.
1. Balanced State: When no load is applied, the bridge is balanced, and the voltage across the output terminals is zero.
2. Unbalanced State: When a load is applied, the strain gauges deform, changing their resistance. This causes an imbalance in the bridge, resulting in a measurable voltage output.
3. Output Voltage: The output voltage is proportional to the load applied, allowing for accurate weight measurement.

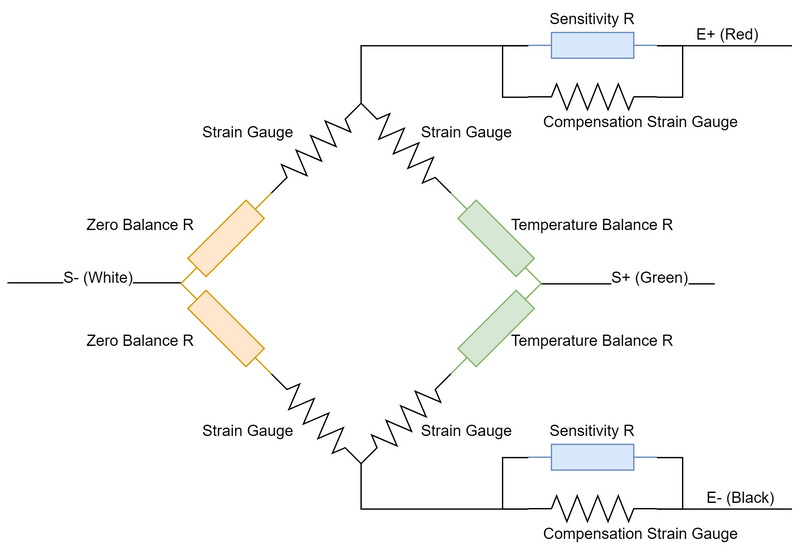

In a typical load cell setup, the four resistors in the Wheatstone bridge are configured as follows:
- R1 and R2: These are the strain gauges that experience a change in resistance when a load is applied.
- R3 and R4: These are reference resistors that help maintain the balance of the bridge.
1. Resistance Change: When a load is applied, R1 and R2 change their resistance due to strain, while R3 and R4 remain constant.
2. Voltage Measurement: The change in resistance leads to a change in voltage across the output terminals of the bridge, which can be measured and interpreted as weight.
3. Signal Conditioning: The output signal may require amplification and filtering to ensure accurate readings.
Using four resistors in a Wheatstone bridge configuration allows for high precision in measurements. The design minimizes the effects of temperature variations and other environmental factors, ensuring that the output is stable and reliable.
The arrangement of resistors can be designed to compensate for temperature changes, which is crucial in maintaining accuracy in various operating conditions. This is particularly important in industrial applications where temperature fluctuations can be significant.
The four-resistor configuration enhances the linearity of the output signal, making it easier to calibrate and interpret the readings. This linearity is vital for applications requiring high accuracy, such as in laboratory settings or high-precision manufacturing processes.
Load cells are widely used in various industries, including:
- Industrial Weighing: Used in scales for weighing goods and materials, ensuring accurate measurements in shipping and receiving.
- Medical Equipment: Employed in devices that require precise weight measurements, such as hospital beds and scales for patients.
- Automotive Testing: Used in crash testing and load testing of vehicles to ensure safety and compliance with regulations.
- Aerospace: Applied in weighing systems for aircraft components, ensuring that weight limits are adhered to for safety and performance.

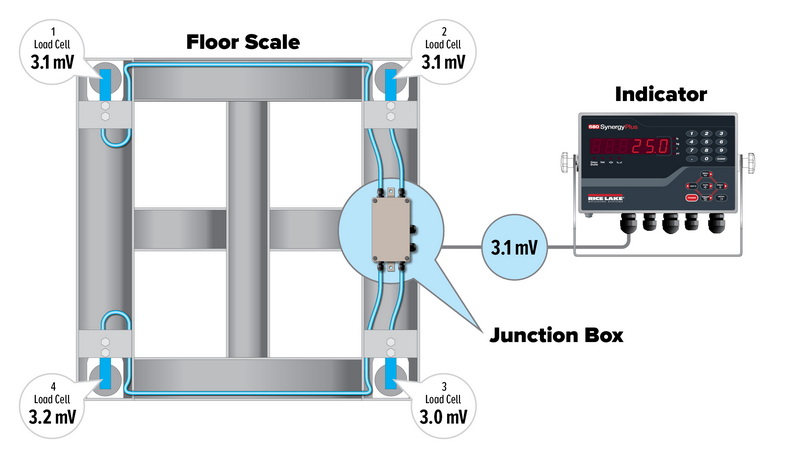

In industrial settings, load cells are often integrated into conveyor systems to monitor the weight of products as they move through the production line. For example, a food processing plant may use load cells to ensure that packages meet regulatory weight requirements. The load cells provide real-time data, allowing for immediate adjustments to the filling process, thus reducing waste and ensuring compliance.
Recent advancements in load cell technology have led to the development of digital load cells that incorporate microprocessors. These devices can perform self-calibration, temperature compensation, and even communicate wirelessly with other systems. This innovation enhances the versatility and ease of use of load cells in various applications.
The use of four resistors in a load cell system, particularly in a Wheatstone bridge configuration, is fundamental to achieving accurate and reliable weight measurements. This configuration allows for precise detection of resistance changes due to applied loads, enabling a wide range of applications across various industries. Understanding how these resistors work together not only highlights the importance of load cells in measurement technology but also underscores the intricate engineering that goes into designing these essential devices.
A load cell is a device that converts a force or weight into an electrical signal, commonly used in weighing systems.
A Wheatstone bridge measures unknown resistances by balancing two legs of a circuit, allowing for precise measurement of resistance changes.
Four resistors are used to create a balanced Wheatstone bridge, which enhances measurement precision and compensates for temperature variations.
Load cells are used in industrial weighing, medical equipment, automotive testing, and aerospace applications.
Temperature changes can affect the resistance of the strain gauges; however, the four-resistor configuration helps compensate for these variations, maintaining accuracy.
