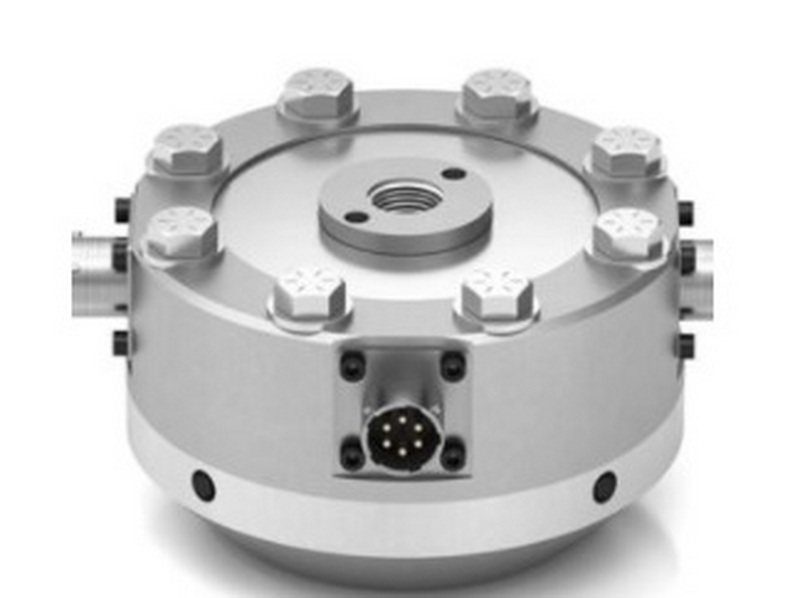

A multi-axis load cell, often referred to as a six-axis load cell, is a type of sensor that can measure forces and torques in three-dimensional space. Unlike traditional load cells that measure force in a single direction, multi-axis load cells can capture data in multiple axes, providing a comprehensive view of the forces acting on an object.
Multi-axis load cells operate based on the principles of strain gauge technology. Strain gauges are devices that measure the amount of deformation (strain) experienced by an object when a force is applied. In a multi-axis load cell, multiple strain gauges are strategically placed to measure forces in different directions.
When a load is applied, the strain gauges deform, and this deformation is converted into an electrical signal. The signals from the various gauges are then processed to determine the magnitude and direction of the applied forces and torques.
In robotics, multi-axis load cells are used to monitor the accuracy of movements and the load-bearing capacity of robotic arms. By measuring the forces exerted during operation, engineers can optimize the design and functionality of robotic systems.
Automotive engineers utilize multi-axis load cells to assess the forces acting on vehicle suspension systems during crash simulations. This data is vital for improving vehicle safety and performance.
In aerospace applications, multi-axis load cells are employed to measure the forces acting on aircraft components during testing. This information helps engineers ensure that designs can withstand the stresses encountered during flight.
In manufacturing, multi-axis load cells are used to monitor the forces applied during assembly processes. This ensures that components are assembled correctly and that the final product meets quality standards.
The new six-axis load cell design incorporates several innovative features that enhance its performance and reliability. These include:
◆ High Sensitivity: The load cell is designed to detect even the smallest changes in force, providing accurate measurements.
◆ Robust Construction: Built to withstand harsh environments, the load cell is made from durable materials that resist wear and tear.
◆ Compact Size: The new design is smaller and lighter than previous models, making it easier to integrate into various applications.
The new six-axis load cell offers several advantages over traditional load cells:
◆ Increased Accuracy: With improved sensitivity and precision, the new design provides more reliable data for critical applications.
◆ Versatility: The ability to measure forces in multiple directions makes this load cell suitable for a wide range of applications.
◆ Ease of Integration: Its compact size allows for easy installation in various systems without requiring significant modifications.
Multi-axis load measurement systems are essential tools in modern engineering and testing. The ability to measure forces and torques in multiple directions simultaneously provides valuable data that can enhance the design and performance of various systems. The new six-axis load cell design represents a significant advancement in this technology, offering improved accuracy, versatility, and ease of integration.
A multi-axis load cell measures forces and torques in multiple directions, providing comprehensive data for various applications.
Unlike traditional load cells that measure force in a single direction, multi-axis load cells can capture data in multiple axes simultaneously.
Industries such as robotics, automotive, aerospace, and industrial automation benefit significantly from multi-axis load measurement systems.
The new design offers increased accuracy, versatility, and ease of integration, making it suitable for a wide range of applications.
By accurately measuring forces during crash simulations, multi-axis load cells help engineers improve vehicle safety and performance.
This comprehensive overview of multi-axis load measurement systems highlights their importance in various fields and the advancements in technology that continue to enhance their capabilities.
