Load cells are essential components in various industrial applications, converting physical force into measurable electrical signals. They play a crucial role in ensuring accurate weight measurements in scales, force measurement systems, and other applications. Understanding how load cells work and how to detect their failures is vital for maintaining operational efficiency and safety.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell uses strain gauge technology, where the deformation of a material under load is measured. Load cells come in various forms, including S-beam, compression, and tension types, each suited for specific applications.

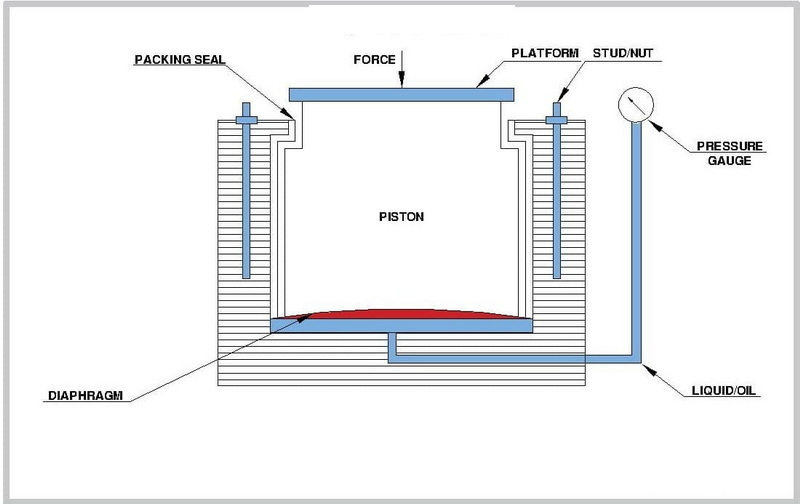

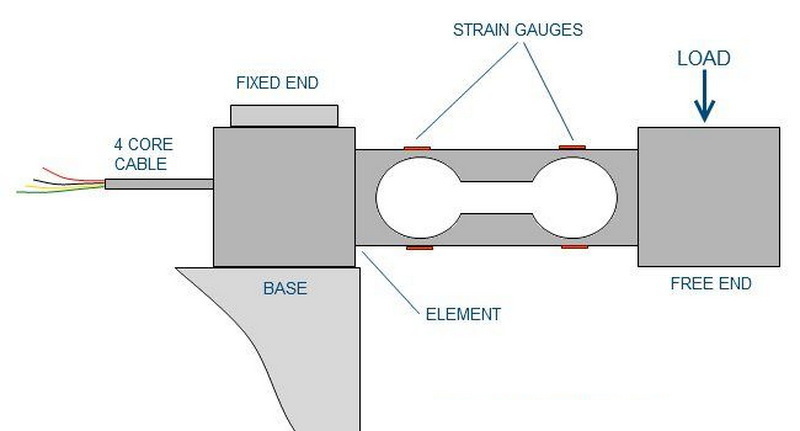

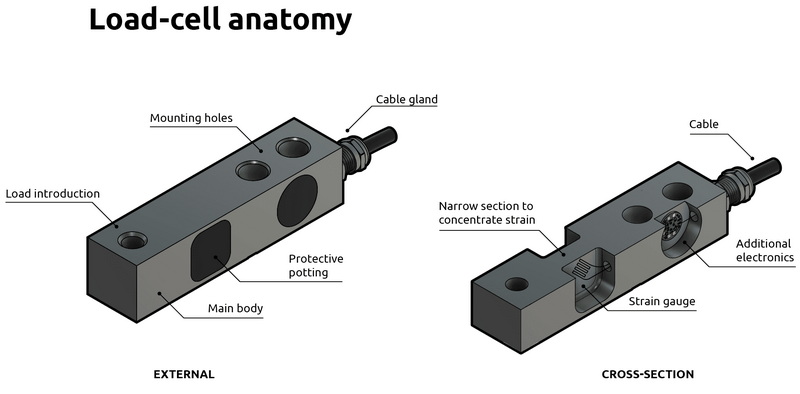

The primary components of a load cell include:
- Strain Gauges: These are bonded to the load cell's load-bearing surface and measure the deformation caused by the applied force.
- Load-Bearing Element: This is the part of the load cell that deforms under load.
- Electrical Circuit: Converts the mechanical deformation into an electrical signal.
Load cell failures can arise from various factors, including mechanical overload, environmental conditions, and electrical issues. Detecting these failures early is crucial to prevent costly downtime and ensure safety. Common causes of load cell failure include:
- Overloading beyond the rated capacity.
- Mechanical damage from impacts or excessive force.
- Electrical issues such as short circuits or insulation failures.
The detection of load cell failures primarily relies on the analysis of electrical signals generated by the strain gauges. When a load is applied, the strain gauges deform, and this deformation is converted into an electrical signal. If the load exceeds the cell's capacity, the deformation can lead to permanent damage, which can be detected through various methods.
1. Strain Gauge Monitoring: Continuous monitoring of the strain gauges can help identify overload conditions. If the output signal deviates from expected values, it may indicate a failure.
2. Electrical Signal Analysis: By analyzing the electrical signals, technicians can identify anomalies that suggest a malfunction. This includes checking for zero balance changes, which can indicate permanent deformation.
3. Insulation Resistance Testing: This test measures the resistance between the load cell body and its connected wires. A drop in insulation resistance can signal potential electrical failures.
When a load cell malfunctions, it is essential to troubleshoot the issue systematically. Here's a step-by-step guide:
1. Visual Inspection: Check for any visible signs of damage, such as cracks or deformations in the load cell body and connections.
2. Zero Balance Check: Measure the output of the load cell with no load applied. Any significant deviation from zero indicates a problem.
3. Electrical Testing: Use a multimeter to measure the input and output resistances. Compare these values with the specifications in the load cell's datasheet.
4. Signal Testing: Apply known weights and measure the output signal. Ensure that the readings correspond accurately to the applied weights.
5. Environmental Assessment: Consider environmental factors that may affect performance, such as temperature fluctuations and humidity.
To ensure the longevity and reliability of load cells, it is essential to implement preventive measures:
- Regular Calibration: Schedule regular calibration to maintain accuracy. This should be done at least once a year or more frequently in critical applications.
- Environmental Controls: Protect load cells from extreme temperatures, moisture, and corrosive substances. Use protective enclosures when necessary.
- Routine Inspections: Conduct routine inspections to identify potential issues before they lead to failures. This includes checking wiring, connections, and physical integrity.
- Training and Awareness: Ensure that personnel are trained in the proper use and maintenance of load cells to minimize the risk of damage.
Load cells are vital for accurate weight measurement in various industries. Understanding how they work and the mechanisms for detecting failures is crucial for maintaining operational efficiency. By implementing regular maintenance and troubleshooting practices, organizations can ensure the longevity and reliability of their load cells.
- Common signs include erratic readings, failure to return to zero, and physical damage to the load cell.
- Load cells should be calibrated at least once a year, or more frequently if used in critical applications.
- Strain gauges measure the deformation of the load cell under applied force, converting this mechanical change into an electrical signal.
- Yes, factors such as temperature, humidity, and exposure to chemicals can significantly impact load cell accuracy and longevity.
- Essential tools include a multimeter for electrical testing, calibration weights for signal testing, and visual inspection tools for physical assessments.
This comprehensive overview of load cells and their failure detection mechanisms provides a solid foundation for understanding their importance in industrial applications. By following best practices for maintenance and troubleshooting, organizations can enhance the reliability and accuracy of their weighing systems.
