A load cell is a type of transducer that converts a force or weight into an electrical signal. This conversion is essential for various applications, including industrial weighing systems, medical devices, and even in research laboratories. Load cells are designed to measure the weight of objects by detecting the force exerted on them and translating that force into a measurable electrical output.

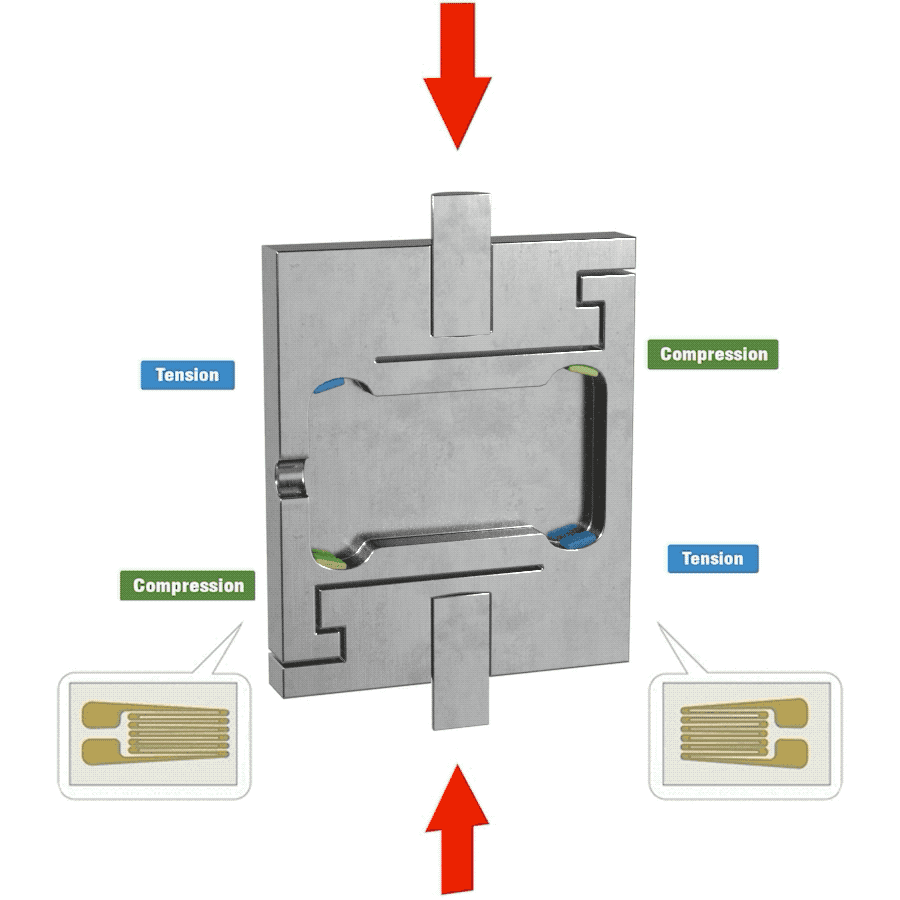

The fundamental principle behind load cells is based on the concept of strain gauges. When a load is applied to a load cell, it deforms slightly. This deformation changes the electrical resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of force applied, allowing for accurate weight measurement.

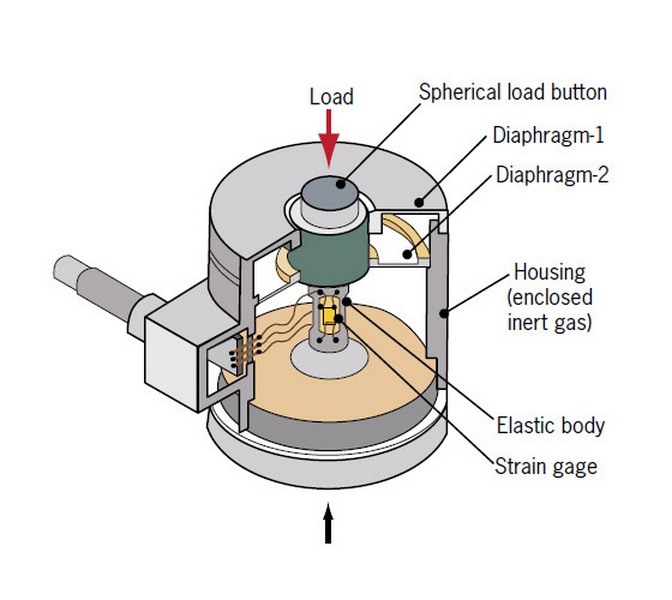

1. Strain Gauges: These are the primary sensing elements in a load cell. They are typically made of a thin wire or foil arranged in a grid pattern. When the load cell is subjected to force, the strain gauges stretch or compress, altering their electrical resistance.
2. Elastic Element: This is the part of the load cell that physically deforms under load. It can be made from various materials, including aluminum or stainless steel, depending on the application and required sensitivity.
3. Housing: The housing protects the internal components of the load cell from environmental factors such as moisture, dust, and mechanical damage. It is usually made from durable materials to ensure longevity.
4. Electrical Connections: These are the wires that connect the strain gauges to the measurement system, allowing the electrical signal generated by the load cell to be transmitted for processing.
Load cells come in various types, each designed for specific applications. The most common types include:
1. Strain Gauge Load Cells: These are the most widely used load cells. They utilize strain gauges to measure the deformation of the elastic element. Strain gauge load cells are known for their accuracy and reliability.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure force. When a load is applied, the fluid pressure changes, which is then converted into an electrical signal. Hydraulic load cells are often used in heavy-duty applications.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are less common but can be useful in specific applications where electrical components may pose a risk.
4. S-Beam Load Cells: These load cells are shaped like an "S" and can measure both tension and compression. They are versatile and commonly used in various applications, including hanging scales.

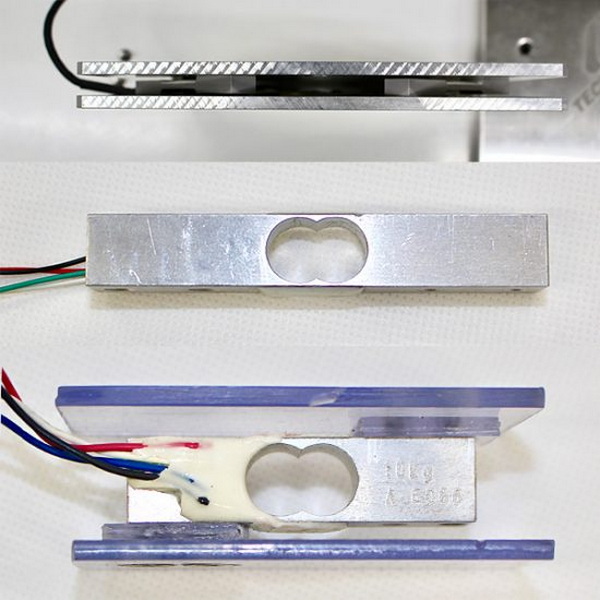

5. Bending Beam Load Cells: These load cells are designed to measure weight by bending under load. They are often used in platform scales and other weighing systems.
The operation of a load cell can be broken down into several key steps:
1. Application of Load: When an object is placed on the load cell, it exerts a force due to gravity. This force is transmitted to the elastic element of the load cell.
2. Deformation: The elastic element deforms in response to the applied load. This deformation is typically very small, often measured in micrometers.
3. Strain Gauge Response: As the elastic element deforms, the strain gauges attached to it also deform. This deformation changes the electrical resistance of the strain gauges.
4. Signal Conversion: The change in resistance is converted into an electrical signal, which is proportional to the amount of force applied. This signal is then amplified and processed by a measurement system.
5. Weight Display: Finally, the processed signal is displayed as a weight measurement on a digital readout or transmitted to a computer for further analysis.
Load cells are used in a wide range of applications across various industries, including:
1. Industrial Weighing: Load cells are commonly used in industrial scales for weighing products, materials, and equipment. They provide accurate measurements essential for inventory management and quality control.
2. Medical Devices: In the medical field, load cells are used in devices such as patient scales and infusion pumps. They ensure accurate dosing and monitoring of patient weight.
3. Automotive Testing: Load cells are employed in automotive testing to measure forces during crash tests and performance evaluations. They help ensure safety and compliance with industry standards.
4. Aerospace: In the aerospace industry, load cells are used to measure forces on aircraft components during testing. They play a critical role in ensuring the safety and reliability of aircraft.
5. Research and Development: Load cells are utilized in laboratories for various research applications, including material testing and force measurement in experiments.
Load cells offer several advantages that make them ideal for weight measurement applications:
1. High Accuracy: Load cells provide precise measurements, making them suitable for applications requiring high accuracy.
2. Durability: Load cells are designed to withstand harsh environments, ensuring long-term reliability.
3. Versatility: With various types available, load cells can be used in a wide range of applications, from light-duty to heavy-duty weighing.
4. Ease of Integration: Load cells can be easily integrated into existing systems, allowing for seamless upgrades to weighing capabilities.
5. Real-Time Monitoring: Load cells provide real-time data, enabling immediate feedback and adjustments in processes.
While load cells are highly effective, there are some challenges and considerations to keep in mind:
1. Calibration: Regular calibration is essential to maintain accuracy. Load cells can drift over time, requiring periodic checks.
2. Environmental Factors: Temperature, humidity, and other environmental factors can affect load cell performance. Proper housing and installation are crucial to mitigate these effects.
3. Installation: Correct installation is vital for accurate measurements. Misalignment or improper mounting can lead to erroneous readings.
4. Signal Interference: Electrical noise and interference can affect the signal from the load cell. Shielding and proper wiring techniques can help minimize these issues.
As technology advances, load cells are becoming more sophisticated. Innovations in materials and design are leading to lighter, more durable load cells that can operate in extreme conditions. Additionally, the integration of digital technology allows for enhanced data processing and connectivity, enabling load cells to communicate with other devices and systems seamlessly.
1. Smart Load Cells: The rise of the Internet of Things (IoT) has led to the development of smart load cells that can transmit data wirelessly. These load cells can provide real-time monitoring and analytics, making them invaluable in industrial automation and smart manufacturing.
2. Miniaturization: As industries demand more compact solutions, load cells are being designed to be smaller and lighter without sacrificing performance. This miniaturization opens up new applications in fields such as robotics and portable weighing devices.
3. Enhanced Materials: Advances in materials science are leading to the development of load cells that can withstand harsher environments, including extreme temperatures and corrosive substances. This durability expands their usability in industries like oil and gas, where conditions can be challenging.
4. Improved Accuracy: Ongoing research is focused on enhancing the accuracy of load cells. Innovations in strain gauge technology and signal processing algorithms are paving the way for load cells that can provide even more precise measurements.
5. Integration with AI: The integration of artificial intelligence (AI) with load cell technology is set to revolutionize how data is analyzed and utilized. AI algorithms can help predict maintenance needs, optimize performance, and enhance decision-making processes in real-time.
Load cells are vital sensors in the world of weight measurement, providing accurate and reliable data across various industries. Their ability to convert force into an electrical signal makes them indispensable in applications ranging from industrial weighing to medical devices. Understanding how load cells function and their various types and applications can help organizations leverage this technology for improved efficiency and accuracy.
The primary function of a load cell is to convert a force or weight into an electrical signal for measurement.
The different types of load cells include strain gauge load cells, hydraulic load cells, pneumatic load cells, S-beam load cells, and bending beam load cells.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage and environmental conditions.
Factors that can affect accuracy include temperature, humidity, installation alignment, and electrical interference.
Load cells are commonly used in industrial weighing, medical devices, automotive testing, aerospace applications, and research laboratories.
