Load cell sensors are fundamental components in modern force and weight measurement systems. These versatile devices have revolutionized various industries by providing accurate and reliable data for a wide range of applications. From industrial scales to aerospace engineering, load cells play a crucial role in ensuring precision and safety in countless operations.
At its core, a load cell is a transducer that converts a mechanical force into an electrical signal. The most common type of load cell utilizes strain gauge technology, which forms the basis for understanding how these sensors operate.

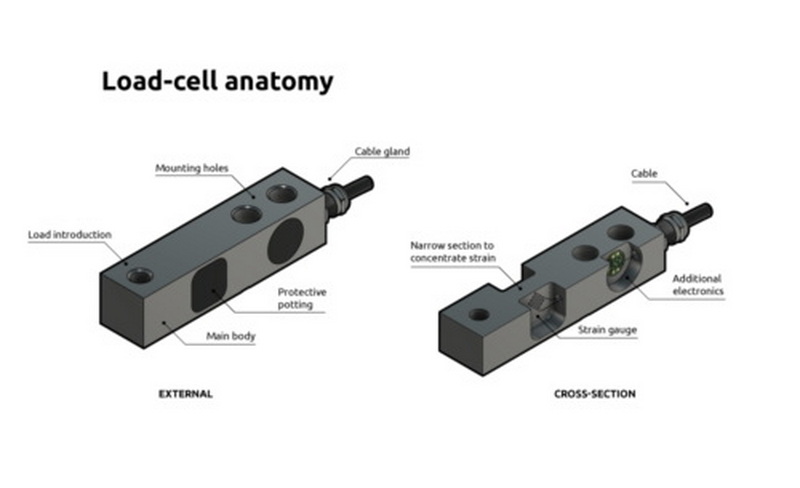

Strain gauges are the heart of most modern load cells. These small, resistive elements are bonded to a deformable structure within the load cell. When a force is applied to the load cell, the structure deforms slightly, causing the strain gauge to stretch or compress. This deformation changes the electrical resistance of the strain gauge, which can be measured and correlated to the applied force.
To accurately measure the small changes in resistance caused by the applied force, load cells typically employ a Wheatstone bridge circuit. This configuration consists of four resistive elements, with at least one being an active strain gauge. The bridge allows for precise measurement of the resistance changes, which are then converted into a voltage output proportional to the applied force.
While strain gauge load cells are the most common, there are several other types of load cells, each with its own advantages and specific applications:
1. Hydraulic Load Cells
2. Pneumatic Load Cells
3. Capacitive Load Cells
4. Piezoelectric Load Cells
Each type of load cell has its unique characteristics, making them suitable for different environments and measurement requirements.
The versatility of load cells has led to their widespread adoption across numerous industries:
1. Industrial Weighing: From truck scales to inventory management systems, load cells ensure accurate weight measurements in various industrial settings.
2. Aerospace and Automotive: Load cells are crucial in testing the structural integrity of aircraft components and vehicle safety systems.
3. Medical Equipment: Precision force measurements are essential in medical devices such as infusion pumps and patient lifts.
4. Agriculture: Load cells are used in grain silos, livestock scales, and other agricultural applications to optimize production and ensure compliance with regulations.
5. Robotics and Automation: Force feedback in robotic arms and automated assembly lines often relies on load cell technology.
To ensure continued accuracy, load cells require regular calibration and maintenance. Calibration involves comparing the load cell's output to known reference weights and adjusting the system accordingly. Proper maintenance includes protecting load cells from environmental factors such as moisture, extreme temperatures, and physical damage.
The electrical signal produced by a load cell is typically very small and requires amplification and processing before it can be used. Signal conditioning circuits are employed to amplify the signal, filter out noise, and convert the analog signal to a digital format for further processing and display.
Recent advancements in load cell technology have focused on improving accuracy, durability, and integration with digital systems. Wireless load cells, for example, eliminate the need for complex wiring in large-scale weighing systems. Additionally, the integration of load cells with Internet of Things (IoT) platforms has enabled real-time monitoring and data analysis across vast networks of sensors.
Selecting the appropriate load cell for a specific application involves considering several factors:
1. Capacity: The maximum force the load cell can measure accurately.
2. Accuracy: The level of precision required for the application.
3. Environmental conditions: Temperature range, humidity, and exposure to chemicals or contaminants.
4. Size and form factor: Physical constraints of the installation.
5. Output signal type: Analog or digital, and compatibility with existing systems.
As technology continues to advance, load cells are expected to become even more precise, durable, and integrated with smart systems. The development of new materials and manufacturing techniques may lead to load cells with higher capacities and better performance in extreme conditions. Furthermore, the integration of artificial intelligence and machine learning algorithms with load cell data may unlock new possibilities for predictive maintenance and process optimization.
Load cell sensors have become indispensable tools in modern industry and research. Their ability to accurately measure force and weight has enabled countless advancements in technology, safety, and efficiency across a wide range of applications. As we continue to push the boundaries of what's possible in engineering and science, load cells will undoubtedly play a crucial role in shaping the future of measurement and control systems.
A1: The main principle behind a strain gauge load cell is the change in electrical resistance when the gauge is deformed. When a force is applied to the load cell, it causes the strain gauge to stretch or compress, altering its resistance. This change in resistance is proportional to the applied force and can be measured to determine the weight or force acting on the load cell.
A2: Temperature can significantly affect load cell performance by causing thermal expansion or contraction of the load cell material and changing the electrical properties of the strain gauges. This can lead to measurement errors. To mitigate these effects, load cells often incorporate temperature compensation techniques, such as using multiple strain gauges arranged to cancel out temperature-induced errors or including temperature sensors for real-time compensation.

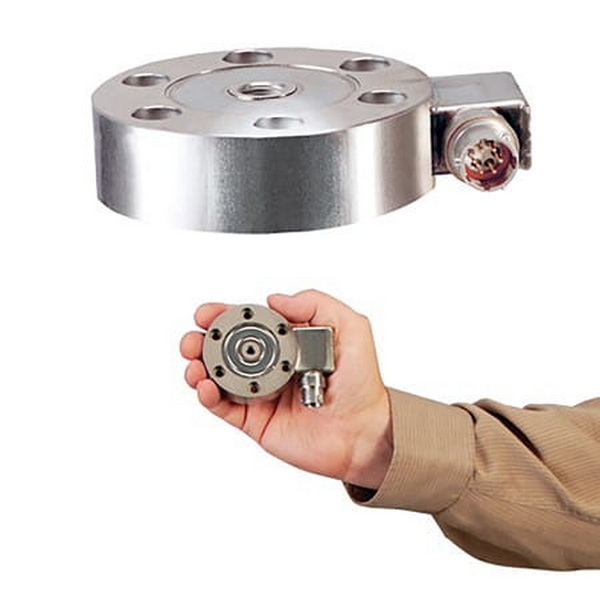

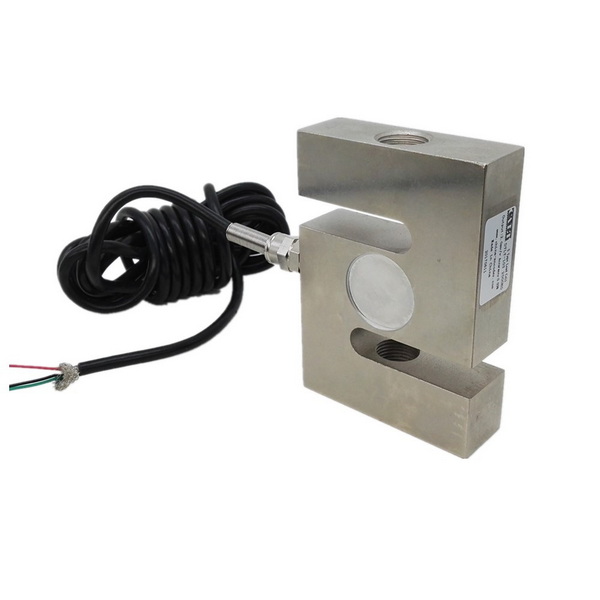

A3: Compression load cells are designed to measure forces that push down on them, while tension load cells measure forces that pull on them. The main difference lies in their physical design and how the strain gauges are arranged within the load cell. Compression load cells typically have a more compact design, while tension load cells often have features like eyebolts or threaded rods for attaching to the load.
A4: The frequency of load cell calibration depends on various factors, including the application, environmental conditions, and regulatory requirements. Generally, it's recommended to calibrate load cells at least once a year. However, in critical applications or harsh environments, more frequent calibration may be necessary. Some industries have specific standards that dictate calibration intervals. It's best to consult the manufacturer's recommendations and any applicable industry standards for your specific use case.
A5: Yes, load cells can measure both static and dynamic forces, but their ability to accurately measure dynamic forces depends on their design and specifications. Standard load cells are typically optimized for static or slowly changing forces. For accurate measurement of rapidly changing forces or impacts, specialized dynamic load cells are available. These are designed with higher natural frequencies and faster response times to capture quick force changes accurately. When measuring dynamic forces, it's important to consider factors such as the sampling rate of the data acquisition system and the load cell's frequency response.
