In the world of industrial weighing and measurement, precision and accuracy are paramount. One crucial component that ensures these qualities in multi-cell weighing systems is the load cell summing box, also known as a junction box or J-box. This device plays a vital role in combining and processing signals from multiple load cells, ultimately providing a single, accurate output for weight measurement. In this comprehensive guide, we'll explore how a load cell summing box works, its key components, and its significance in various industrial applications.
Before delving into the intricacies of a summing box, it's essential to understand the basics of load cells. Load cells are transducers that convert mechanical force (weight) into electrical signals. They are the foundation of most modern weighing systems, from small kitchen scales to massive industrial platforms.
In multi-cell systems, such as large platform scales or tank weighing setups, multiple load cells are used to distribute the weight evenly and provide more accurate measurements. However, using multiple load cells introduces a new challenge: how to combine their individual signals into a single, accurate reading.
This is where the load cell summing box comes into play. Its primary functions include:
1. Signal Combination: The summing box gathers signals from all connected load cells and combines them into a single output.
2. Signal Trimming: It equalizes the outputs from individual load cells to ensure balanced and accurate measurements.
3. Excitation Voltage Distribution: The box distributes the excitation voltage evenly to all connected load cells.
4. Environmental Protection: It provides a sealed enclosure to protect the electrical connections from environmental factors.
5. Calibration and Troubleshooting: Many summing boxes include features that facilitate system calibration and individual load cell diagnostics.

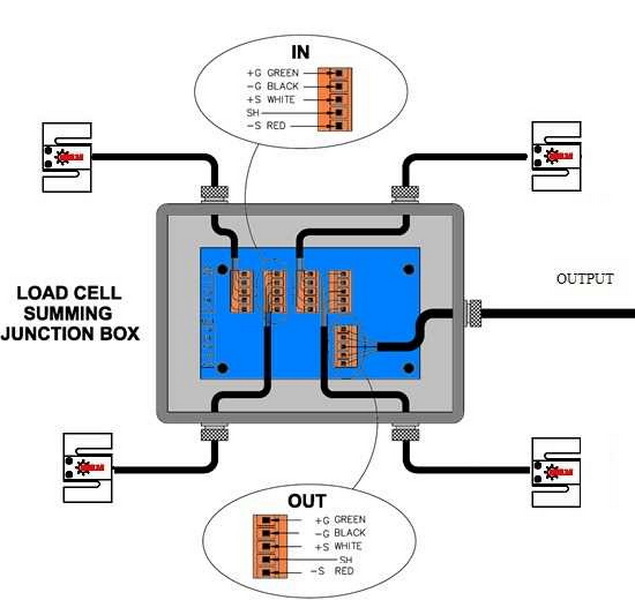

The primary function of a summing box is to combine the signals from multiple load cells. Each load cell produces a small electrical signal (typically in millivolts) proportional to the weight it's measuring. The summing box adds these signals together, creating a single output that represents the total weight on all load cells.
In an ideal world, all load cells in a system would produce identical outputs for the same weight. However, due to manufacturing tolerances and slight differences in installation, this is rarely the case. Signal trimming is the process of adjusting the individual load cell outputs to ensure they contribute equally to the final measurement.
There are two main methods of signal trimming:
1. Resistive Trimming: This involves adding small resistors in parallel or series with the load cell signals to adjust their contribution to the total output.
2. Digital Trimming: More advanced summing boxes use digital potentiometers or microcontrollers to adjust the signals electronically.
Load cells require a stable excitation voltage to operate correctly. The summing box is responsible for distributing this voltage evenly to all connected load cells. This ensures that each cell receives the same power supply, which is crucial for accurate measurements.
Many industrial weighing systems operate in harsh environments. The summing box provides a sealed enclosure that protects the electrical connections and trimming components from dust, moisture, and other potential contaminants. This protection is vital for maintaining long-term accuracy and reliability of the weighing system.

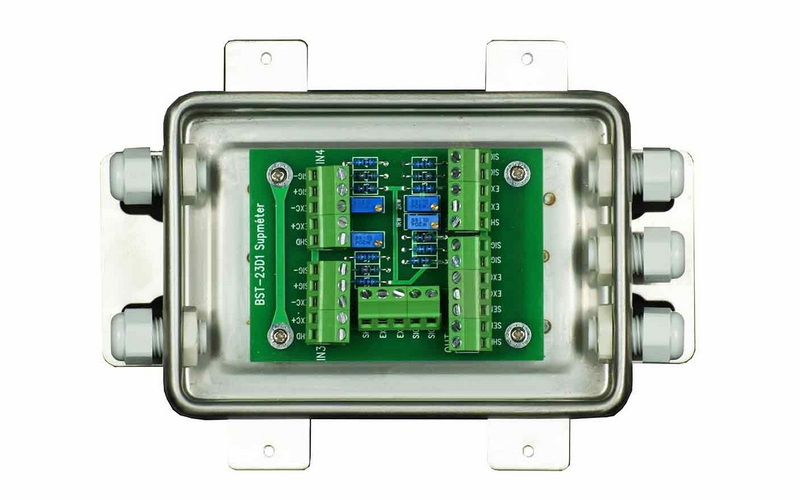

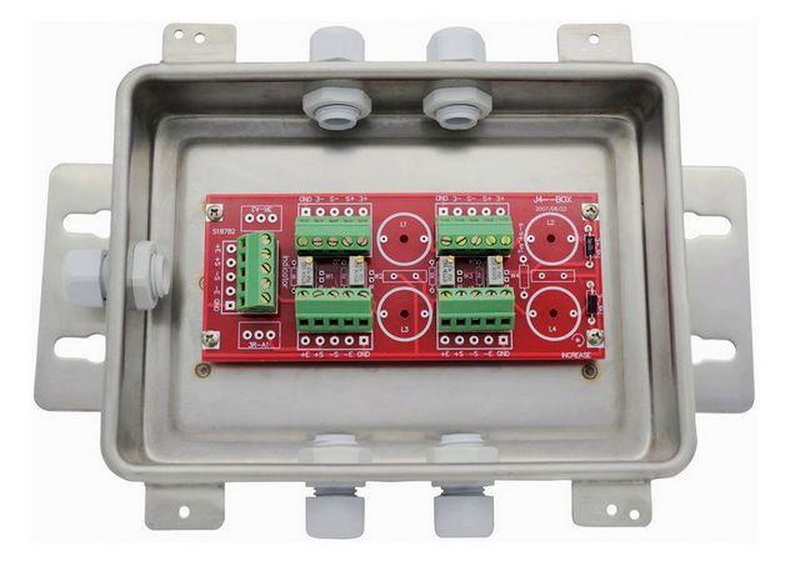

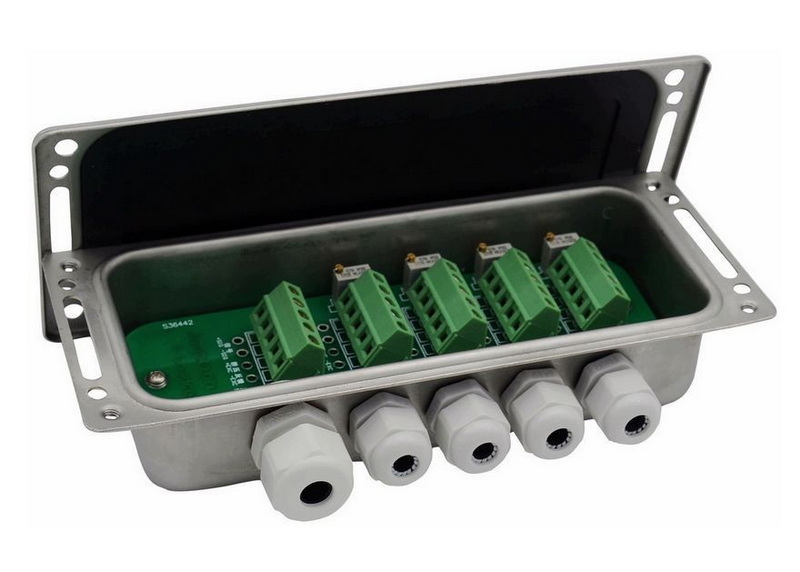

A typical load cell summing box consists of several key components:
1. Input Terminals: These connect to the individual load cells, usually via shielded cables.
2. Output Terminal: This provides the combined signal to the weight indicator or controller.
3. Trimming Resistors or Potentiometers: Used for adjusting individual load cell signals.
4. PCB (Printed Circuit Board): Houses the circuitry for signal processing and combination.
5. Enclosure: Provides environmental protection for the internal components.
6. Cable Glands: Ensure a watertight seal where cables enter the box.
7. Grounding Point: Helps reduce electrical noise and ensures safety.
Load cell summing boxes find applications in various industries and weighing scenarios:
1. Platform Scales: Large platform scales often use multiple load cells to support the weighing surface evenly.
2. Tank and Silo Weighing: Multiple load cells are used to measure the contents of large tanks or silos accurately.
3. Truck Scales: Weighbridges for trucks typically employ multiple load cells along their length.
4. Conveyor Belt Scales: These systems may use multiple load cells to measure material flow accurately.
5. Batching Systems: Precise ingredient measurement in food and chemical industries often requires multiple load cells.
1. Improved Accuracy: By combining and trimming multiple load cell signals, summing boxes enhance overall system accuracy.
2. Simplified Wiring: Instead of running multiple cables to the weight indicator, only one cable is needed from the summing box.
3. Easy Maintenance: Summing boxes often include diagnostic features that make it easier to identify and resolve issues with individual load cells.
4. Scalability: Additional load cells can often be added to the system by using a larger summing box or connecting multiple boxes.
5. Environmental Protection: The sealed enclosure protects sensitive electrical connections from harsh industrial environments.
Proper installation and calibration of a load cell summing box are crucial for accurate weighing. Here are some key considerations:
1. Mounting: The summing box should be mounted securely, away from sources of vibration or extreme temperatures.
2. Wiring: Use high-quality, shielded cables for all connections to minimize electrical interference.
3. Grounding: Ensure proper grounding to reduce noise and prevent electrical hazards.
4. Calibration: Follow the manufacturer's guidelines for initial calibration and regular recalibration of the system.
5. Moisture Protection: Use appropriate cable glands and ensure the enclosure is properly sealed to prevent moisture ingress.
Load cell summing boxes are essential components in multi-cell weighing systems, ensuring accurate and reliable measurements across various industrial applications. By understanding how these devices work and their key features, engineers and technicians can better design, install, and maintain high-performance weighing systems. As technology advances, we can expect to see even more sophisticated summing boxes with enhanced digital capabilities, further improving the accuracy and efficiency of industrial weighing processes.
A1: The number of load cells that can be connected to a summing box varies depending on the specific model. Common configurations range from 4 to 8 load cells, but some specialized boxes can accommodate more. Always check the manufacturer's specifications for the exact capacity of a particular summing box.
A2: The calibration frequency depends on various factors, including the application, environmental conditions, and regulatory requirements. As a general rule, it's recommended to calibrate the system at least annually. However, some critical applications may require more frequent calibration, while stable systems in controlled environments might need less frequent checks.
A3: It's generally not recommended to mix load cells with different capacities in the same summing box. For optimal performance and accuracy, all load cells connected to a summing box should have the same capacity and output characteristics. Mixing different capacities can lead to uneven weight distribution and inaccurate measurements.
A4: A passive summing box simply combines the signals from multiple load cells without any active signal processing. An active summing box, on the other hand, includes electronic components that can amplify, filter, or digitally process the signals. Active boxes often provide better performance, especially in noisy environments or when long cable runs are required.
A5: Troubleshooting a summing box typically involves the following steps:
1. Check all wiring connections for loose or damaged cables.
2. Verify the excitation voltage at each load cell.
3. Measure the individual output of each load cell to identify any faulty units.
4. Inspect the summing box for signs of moisture or corrosion.
5. Use diagnostic tools provided by the manufacturer to check signal integrity.
6. If available, use the corner adjustment feature to isolate issues with specific load cells.
If these steps don't resolve the issue, consult the manufacturer's technical support or a qualified weighing system technician.
