Load cells are essential components in tensile testing machines, providing accurate measurements of force and material strength. These devices convert mechanical force into an electrical signal, allowing for precise analysis of materials under tension. Understanding how load cells function is crucial for engineers and researchers involved in material testing.
A load cell is a type of transducer that measures force or weight. It operates on the principle of converting mechanical energy into an electrical signal. Load cells come in various types, including tension load cells, which are specifically designed to measure pulling forces. These devices are widely used in industries such as construction, manufacturing, and materials science.
Load cells in tensile testing machines operate by utilizing strain gauges. When a material is subjected to a tensile force, the load cell deforms slightly. This deformation is measured by strain gauges attached to the load cell, which convert the mechanical strain into an electrical signal. The amount of deformation correlates directly with the force applied, allowing for accurate measurement of tensile strength.

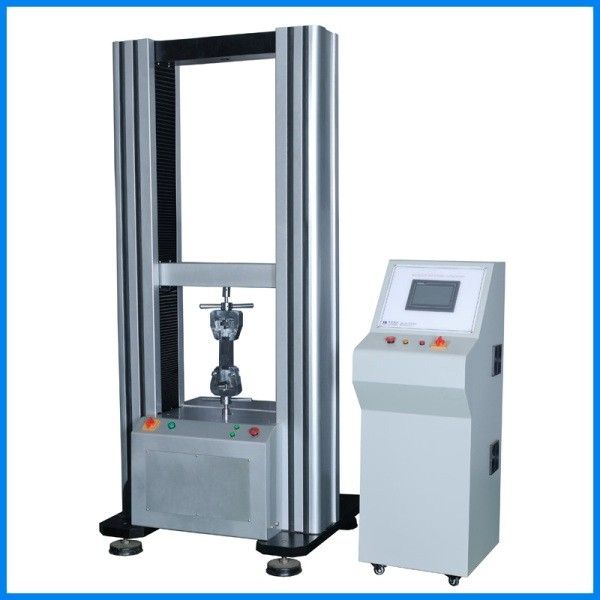

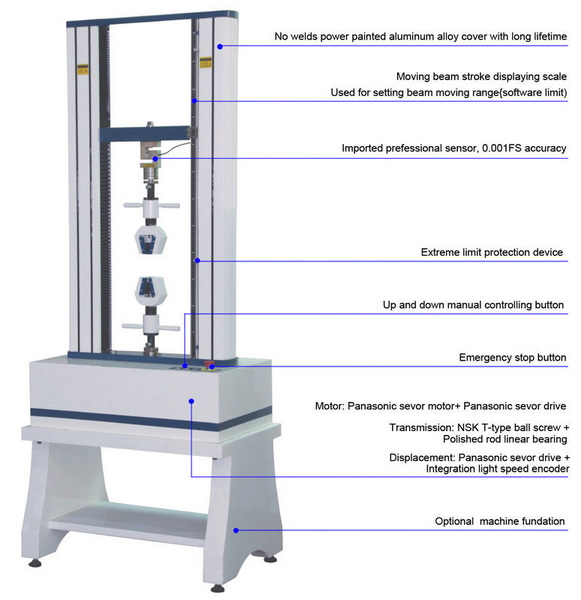

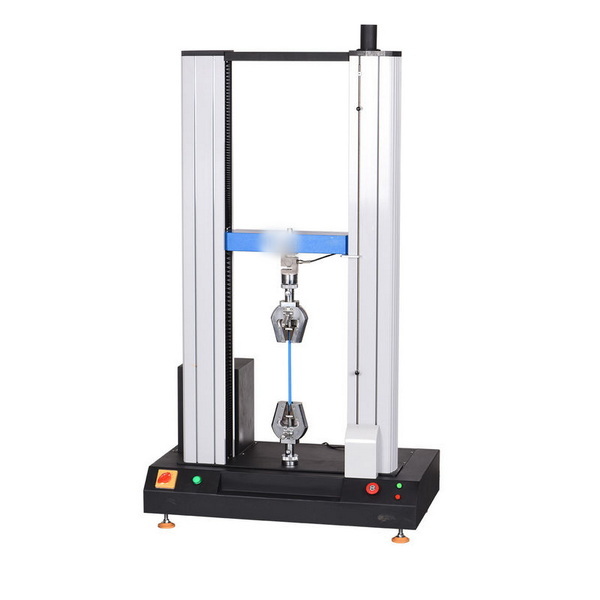

A typical tensile testing machine consists of several key components:
- Load Cell: The heart of the machine, responsible for measuring the force applied to the specimen.
- Crosshead: The moving part of the machine that applies the tensile force.
- Grips: Devices that hold the material specimen in place during testing.
- Software: Used to control the machine and analyze the data collected during the test.
These components work in unison to ensure accurate and reliable testing of materials.
Load cells are utilized in various applications across multiple industries. They are crucial in testing materials such as metals, plastics, and composites to determine their tensile strength, yield strength, and elongation properties. This information is vital for quality control, product development, and ensuring safety standards in manufacturing processes.
Calibration is essential for ensuring the accuracy of load cells. It involves comparing the load cell's output against known weights and adjusting it to minimize errors. Regular maintenance, including cleaning and inspection, is also crucial to prolong the lifespan of load cells and maintain their performance.
The field of load cell technology is continuously evolving. Innovations such as wireless load cells, enhanced strain gauge materials, and advanced data analysis software are improving the efficiency and accuracy of tensile testing. These advancements are making it easier for industries to conduct tests and analyze results in real-time.
Load cells play a vital role in tensile testing, providing accurate measurements that are essential for material analysis. Their ability to convert mechanical force into electrical signals allows for precise testing across various industries. As technology advances, load cells will continue to evolve, enhancing their functionality and applications in material testing.
Tension load cells measure pulling forces, while compression load cells measure pushing forces. Both types are essential for different testing applications.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage and industry standards.
Tensile testing machines can test a wide range of materials, including metals, plastics, rubber, and composites.
Yes, load cells can be used in dynamic testing applications, such as measuring forces in moving systems or during impact tests.
Common issues include drift in measurements, mechanical damage, and calibration errors, which can affect the accuracy of the readings.
This comprehensive overview of load cells and their application in tensile testing highlights their importance in material science and engineering. Understanding their functionality and maintenance is crucial for anyone involved in material testing.
