In the realm of industrial and scientific measurements, load cells play a crucial role in quantifying force and weight with remarkable precision. These unassuming devices are the unsung heroes behind countless applications, from bathroom scales to massive industrial weighing systems. But what exactly is a load cell, and how does it work its magic in converting physical force into measurable data?
At its core, a load cell is a transducer – a device that converts one form of energy into another. In this case, load cells transform mechanical force into electrical signals. This conversion is the key to their versatility and accuracy in measuring weight and force across a wide range of applications.
The most common type of load cell utilizes strain gauges, which are sensitive to deformation. When a force is applied to the load cell, it causes a slight deformation in the cell's structure. This deformation is then detected by the strain gauges, which experience a change in their electrical resistance proportional to the applied force.
Strain gauge load cells are marvels of engineering simplicity and effectiveness. They consist of a metal body (often referred to as a spring element) to which strain gauges are attached. The metal body is designed to flex slightly under load, and the strain gauges are strategically placed to measure this flexing.
Typically, four strain gauges are used in a configuration known as a Wheatstone bridge. This arrangement allows for temperature compensation and amplifies the small changes in resistance, resulting in a more accurate and stable output signal.
While strain gauge load cells are the most common, the load cell family is quite diverse, each type suited for specific applications:

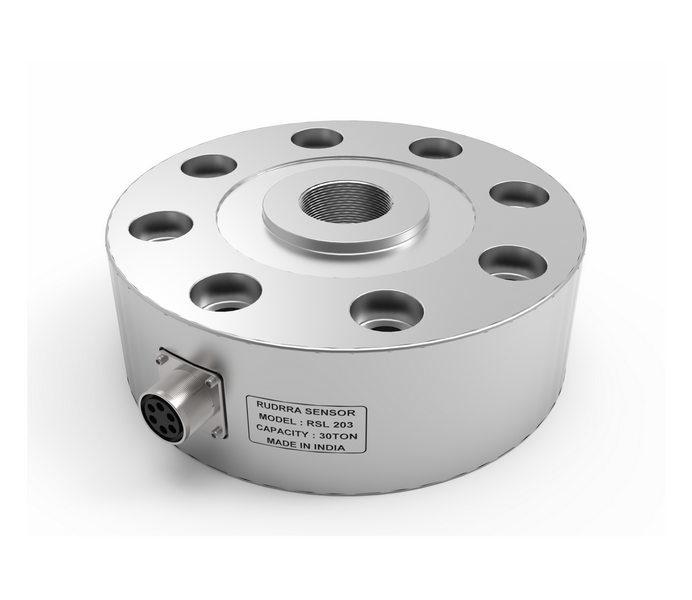

1. Compression Load Cells: Ideal for measuring forces pushing down on them, commonly used in platform scales and truck weighing systems.
2. Tension Load Cells: Designed to measure pulling forces, often seen in crane scales and material testing machines.

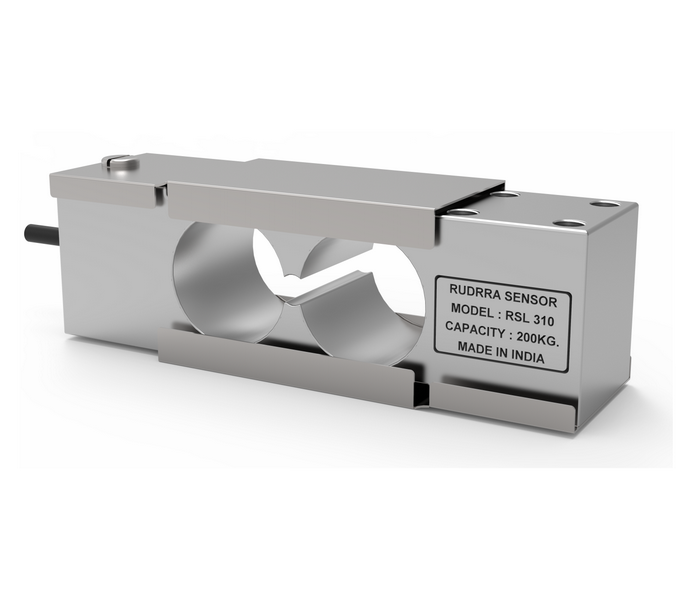

3. Shear Beam Load Cells: These are bending beam load cells that measure the shear force at the neutral axis of the beam, commonly used in tank and hopper weighing.
4. S-Type Load Cells: Named for their S-shaped design, these versatile cells can measure both tension and compression forces.
5. Button Load Cells: Compact and low-profile, these are perfect for applications with space constraints.

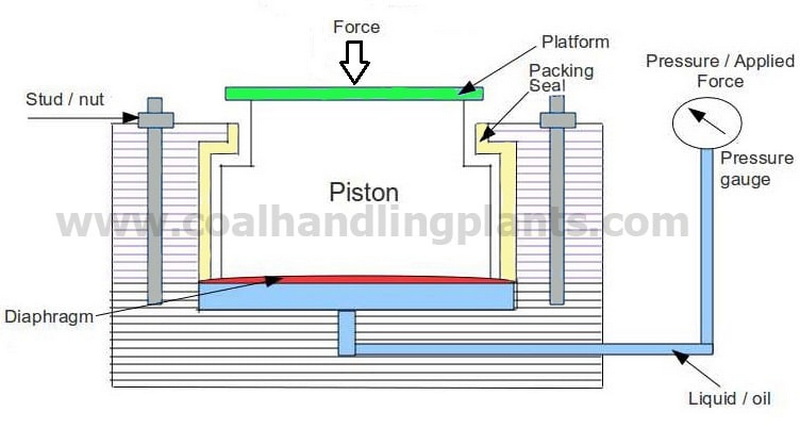

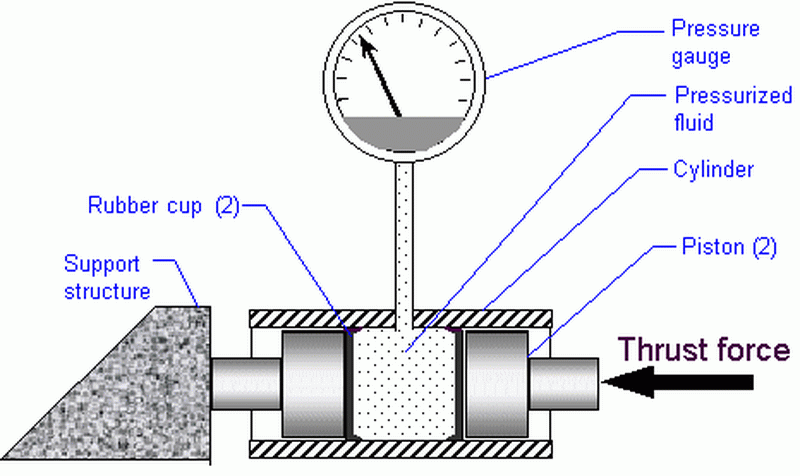

6. Hydraulic Load Cells: Instead of electrical signals, these use fluid pressure to indicate force, making them suitable for hazardous environments.
The principle behind load cell operation is rooted in Hooke's Law, which states that the force needed to extend or compress a spring by some distance is proportional to that distance. In load cells, the metal body acts as the spring, and the strain gauges measure the minute extensions or compressions.The electrical resistance change in the strain gauges is typically very small, often measured in microvolts. This is why load cells are often paired with amplifiers and analog-to-digital converters to produce a usable output signal.
The versatility of load cells has led to their adoption across a wide spectrum of industries:
1. Manufacturing: For quality control, batch processing, and inventory management.
2. Transportation: In weighbridges for trucks and in aircraft weight and balance systems.
3. Healthcare: In hospital beds, patient lifts, and pharmaceutical production.
4. Agriculture: For livestock weighing and crop yield measurements.
5. Aerospace: In thrust measurement for rocket engines and material testing.
6. Robotics: Providing force feedback for precise movements and interactions.
For load cells to provide accurate measurements, proper calibration is essential. Calibration involves comparing the load cell's output to known reference weights or forces. This process ensures that the load cell provides consistent and accurate readings across its entire measurement range.Calibration must be performed regularly and after any significant environmental changes or impacts to the load cell. Many modern load cells come with self-calibration features, but for critical applications, professional calibration services are often employed.
As with many technologies, load cells are evolving. Current trends include:
1. Wireless Load Cells: Eliminating the need for complex wiring in large systems.
2. Digital Load Cells: Offering improved signal processing and easier integration with digital systems.
3. Miniaturization: Creating smaller load cells for use in compact devices and robotics.
4. Smart Load Cells: Incorporating IoT capabilities for real-time monitoring and predictive maintenance.
While load cells are incredibly useful, they do face challenges:
1. Environmental Factors: Temperature changes, humidity, and vibrations can affect accuracy.
2. Overloading: Exceeding a load cell's capacity can lead to permanent damage or inaccurate readings.
3. Creep: The tendency for load cell output to change over time under constant load.
4. EMI/RFI Interference: Electromagnetic and radio frequency interference can disrupt readings.
Engineers and technicians must consider these factors when designing systems that incorporate load cells to ensure reliable and accurate performance.
Load cells are a testament to the ingenuity of modern engineering, translating the physical world of forces into the digital realm of data. From the simplest bathroom scale to complex industrial processes, these devices play a crucial role in our ability to measure, monitor, and control the world around us.As technology advances, we can expect load cells to become even more precise, versatile, and integrated into our daily lives and industrial processes. Understanding the principles behind their operation not only gives us appreciation for these remarkable devices but also empowers us to use them more effectively in a wide range of applications.
Answer: While the terms are often used interchangeably, a load cell is a specific type of force sensor. Load cells are typically designed to measure weight or downward force, while force sensors can measure force in various directions. Load cells usually output an electrical signal, whereas force sensors might use various methods to indicate force.
Answer: The accuracy of load cells can vary widely depending on their quality and application. High-quality load cells can achieve accuracies of 0.03% to 0.25% of full scale. However, factors such as temperature, mounting conditions, and signal processing can affect overall system accuracy.
Answer: Yes, many load cells can measure dynamic forces, but their performance depends on their design and specifications. Some load cells are specifically designed for dynamic force measurement and can capture rapid changes in force. However, for highly dynamic applications, specialized sensors might be more suitable.
Answer: The lifespan of a load cell can vary greatly depending on its usage and environmental conditions. Under normal operating conditions, a high-quality load cell can last 3-5 years or even longer. However, factors such as overloading, shock loads, and harsh environments can significantly reduce their lifespan.
Answer: In most cases, it's not practical or cost-effective to repair load cells. The sensitive nature of their internal components means that damage often requires replacement of the entire unit. However, some issues, such as cable damage or connector problems, can sometimes be repaired by specialists. It's generally recommended to replace a faulty load cell to ensure accuracy and reliability.
