Pancake load cells are specialized sensors designed to measure force or weight with high precision. Their unique flat, circular shape resembles a pancake, which is where they derive their name. These load cells are widely used in various industries, including manufacturing, aerospace, and research laboratories, due to their ability to provide accurate measurements in both tension and compression applications.
At the core of a pancake load cell's functionality is the strain gauge technology. When a force is applied to the load cell, the metal structure deforms slightly. This deformation causes a change in the resistance of the strain gauges attached to the load cell. The change in resistance is then measured and converted into an electrical signal, which can be interpreted as a force or weight measurement.
The basic principle of operation involves the Wheatstone bridge configuration, which enhances the sensitivity and accuracy of the load cell. This configuration allows for the precise measurement of small changes in resistance, making pancake load cells ideal for applications requiring high accuracy.

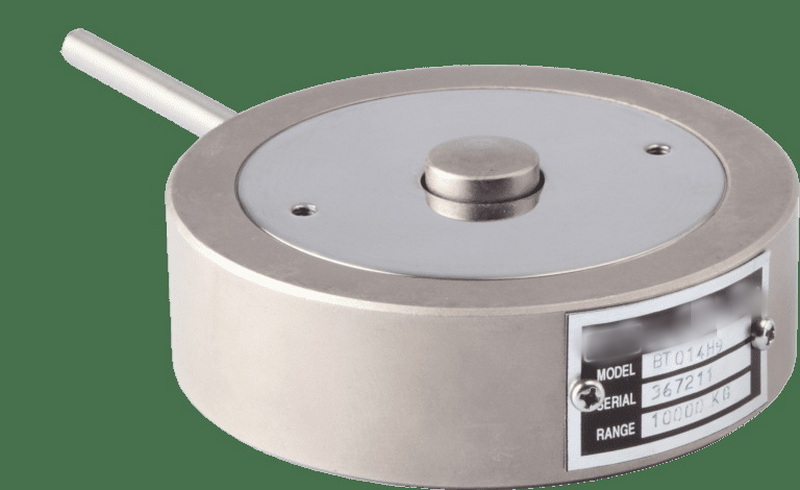

Pancake load cells are characterized by their low-profile design, which allows them to fit into tight spaces where traditional load cells may not be suitable. They are typically constructed from high-strength materials such as stainless steel or aluminum, ensuring durability and resistance to environmental factors.
The design includes a central threaded hole for easy installation and multiple mounting holes to secure the load cell in place. This versatility in design makes pancake load cells suitable for a wide range of applications, from industrial machinery to laboratory testing.
Pancake load cells are utilized in various applications, including:
- Industrial Uses: They are commonly used in manufacturing processes to monitor forces during assembly, testing, and quality control.
- Laboratory Testing: In research settings, pancake load cells are employed to measure forces in experiments, ensuring accurate data collection.
- Weighing Systems: These load cells are integral to platform scales, truck scales, and rail weighbridges, providing reliable weight measurements.
Pancake load cells offer several advantages over other types of load cells:
- High Accuracy and Reliability: They provide precise measurements, making them essential for applications where accuracy is critical.
- Compact Design: Their low-profile design allows for installation in limited spaces, making them versatile for various setups.
- Versatility: Pancake load cells can measure both tension and compression forces, making them suitable for a wide range of applications.
Proper installation of pancake load cells is crucial for accurate measurements. Key steps include ensuring central alignment, avoiding over-tightening, and securing the load cell to a flat surface. Regular maintenance is also essential to ensure optimal performance. This includes checking for any signs of wear or damage and recalibrating the load cell as needed.
The future of load cell technology is promising, with ongoing innovations in design and materials. The integration of Internet of Things (IoT) technology is also becoming more prevalent, allowing for real-time monitoring and data collection. This advancement will enhance the capabilities of pancake load cells, making them even more valuable in various applications.
Pancake load cells play a vital role in modern measurement technology, providing accurate and reliable data across various industries. Their unique design, combined with advanced strain gauge technology, makes them indispensable tools for force measurement. As technology continues to evolve, pancake load cells will likely see further enhancements, solidifying their place in the future of industrial and laboratory applications.
A pancake load cell is a type of force sensor designed to measure weight or force with high precision. Its low-profile design allows it to fit into tight spaces, making it versatile for various applications.
To install a pancake load cell, ensure proper alignment, avoid over-tightening, and secure it to a flat surface. Follow the manufacturer's guidelines for specific installation instructions.
Pancake load cells offer high accuracy, a compact design, and the ability to measure both tension and compression forces, making them suitable for a wide range of applications.
Yes, pancake load cells are designed to measure both tension and compression forces, making them versatile for various applications.
Load cells should be calibrated regularly, depending on usage and environmental conditions. It is recommended to check calibration at least once a year or more frequently if used in critical applications.
