Load cells are essential components in modern weighing systems, converting force into measurable electrical signals. They play a crucial role in various industries, from manufacturing to healthcare, ensuring accurate weight measurements. Understanding how load cells work is vital for anyone involved in weighing technology.
Load cells operate on the principle of converting mechanical force into electrical signals. The most common type, the strain gauge load cell, uses a series of strain gauges that deform under load. This deformation changes the electrical resistance of the gauges, which is then converted into a weight measurement.
There are several types of load cells, each suited for different applications:
- Strain Gauge Load Cells: The most widely used, ideal for general weighing applications.
- Hydraulic Load Cells: Utilize fluid pressure to measure weight, often used in heavy-duty applications.
- Pneumatic Load Cells: Use air pressure, suitable for environments where electrical devices may pose a risk.
Load cells function by measuring the deformation of a material when a load is applied. When weight is placed on the load cell, it compresses or stretches, depending on the type. This deformation is detected by the strain gauges, which convert the mechanical change into an electrical signal.

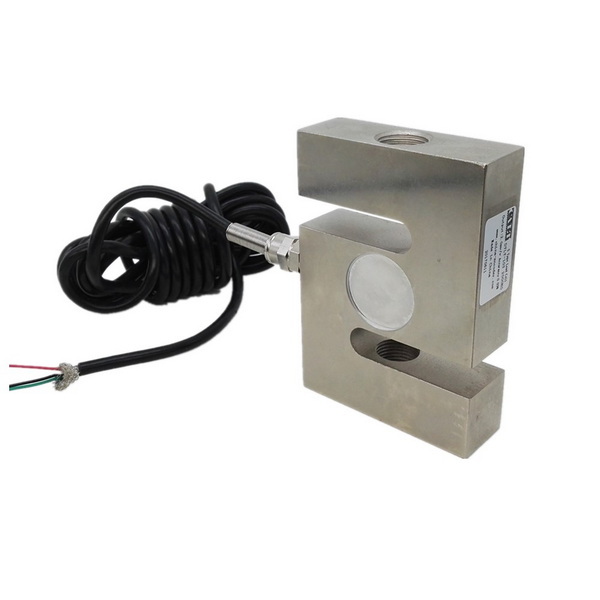

The load cell's internal structure typically consists of a metal body with strain gauges attached. As weight is applied, the body deforms, causing the strain gauges to stretch or compress. This change in shape alters the electrical resistance, which is measured and converted into a weight reading.
Load cells are used in a variety of applications across different industries:
- Industrial Weighing: Used in scales for weighing products, materials, and vehicles.
- Medical Equipment: Essential for patient scales and other medical devices.
- Research and Development: Employed in laboratories for precise measurements in experiments.
Calibration is crucial for ensuring the accuracy of load cells. It involves adjusting the load cell's output to match a known weight. Regular calibration helps maintain precision and reliability in measurements.
1. Zeroing: Ensure the load cell reads zero without any load.
2. Applying Known Weights: Use calibrated weights to test the load cell's response.
3. Adjusting Output: Modify the output until it matches the known weights.
The accuracy of a load cell can be affected by several factors, including temperature, humidity, and mechanical stress. To ensure optimal performance, it is essential to:
- Regularly calibrate the load cell.
- Protect it from environmental factors.
- Use it within its specified load range.
Digital load cells offer several advantages over traditional analog models, including improved accuracy and easier integration with digital systems. They provide real-time data and can be connected to various devices for enhanced functionality.
Digital load cells are increasingly used in automated systems, such as conveyor belts and robotic applications, where precise weight measurements are critical.
Proper installation and maintenance are vital for the longevity and accuracy of load cells. Here are some best practices:
- Installation: Ensure the load cell is mounted securely and aligned correctly.
- Maintenance: Regularly inspect for wear and tear, and clean the load cell to prevent debris buildup.
Load cells are integral to accurate weight measurement in various applications. Understanding their operation, types, and maintenance can significantly enhance their performance and reliability. As technology advances, load cells will continue to evolve, offering even greater precision and functionality.
A load cell is a transducer that converts force or weight into an electrical signal, commonly used in weighing scales.
Calibration involves zeroing the load cell and applying known weights to adjust its output to match these weights.
The main types include strain gauge, hydraulic, and pneumatic load cells, each suited for specific applications.
Load cells can achieve high accuracy, often within a fraction of a percent, depending on the type and calibration.
Load cells are used in various industries, including manufacturing, healthcare, and research, for precise weight measurements.
