Torque load cells are specialized sensors designed to measure the torque applied to an object. They play a crucial role in various industries, including automotive, aerospace, and manufacturing, where precise torque measurements are essential for safety and performance. Understanding how these devices work can help engineers and technicians ensure the reliability and accuracy of their measurements.
At its core, a torque load cell operates on the principle of converting mechanical force into an electrical signal. When torque is applied to the load cell, it causes a deformation in the sensor's structure. This deformation is measured and converted into an electrical signal that can be quantified.
A typical torque load cell consists of several key components:
- Strain Gauges: These are the primary sensing elements that detect deformation. They change their electrical resistance when stretched or compressed.
- Spring Element: This component provides the necessary mechanical response to the applied torque.
- Housing: The outer casing that protects the internal components and provides structural integrity.
Strain gauges are critical in the operation of torque load cells. They are bonded to the load cell's spring element and are arranged in a Wheatstone bridge configuration. This setup allows for precise measurement of the strain experienced by the load cell when torque is applied. The electrical signal generated by the strain gauges is proportional to the amount of torque applied, enabling accurate readings.

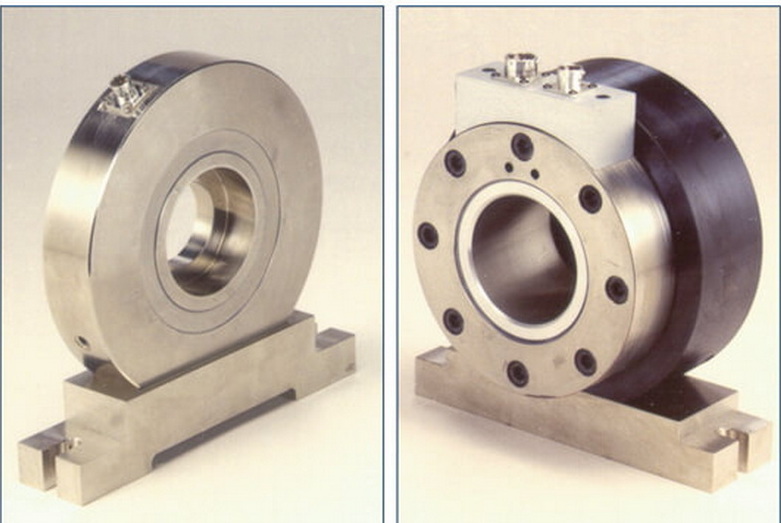

Torque load cells can be categorized into static and dynamic types. Static load cells measure torque under steady conditions, while dynamic load cells are designed to measure torque during motion, such as in rotating machinery.
There are various designs of torque load cells, including:
- Cylindrical Load Cells: Commonly used in applications requiring high precision.
- Pancake Load Cells: Ideal for measuring both tension and compression forces.
- Rotary Load Cells: Specifically designed for applications involving rotating components.
Torque load cells are widely used in industrial settings for quality control and testing. They ensure that machinery operates within specified torque limits, preventing mechanical failures.

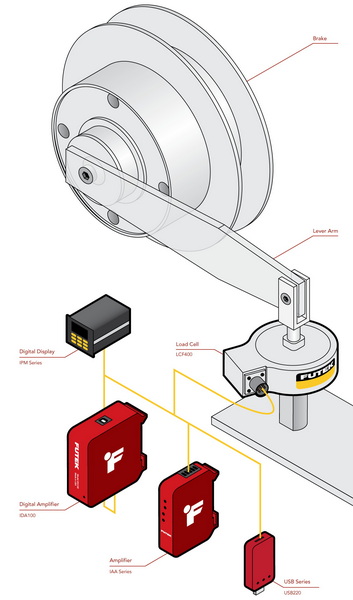

In the automotive industry, torque load cells are essential for testing the performance of engines and drivetrains. They help engineers optimize designs for better efficiency and safety.
Researchers utilize torque load cells in experimental setups to gather data on material properties and mechanical behaviors under various conditions.

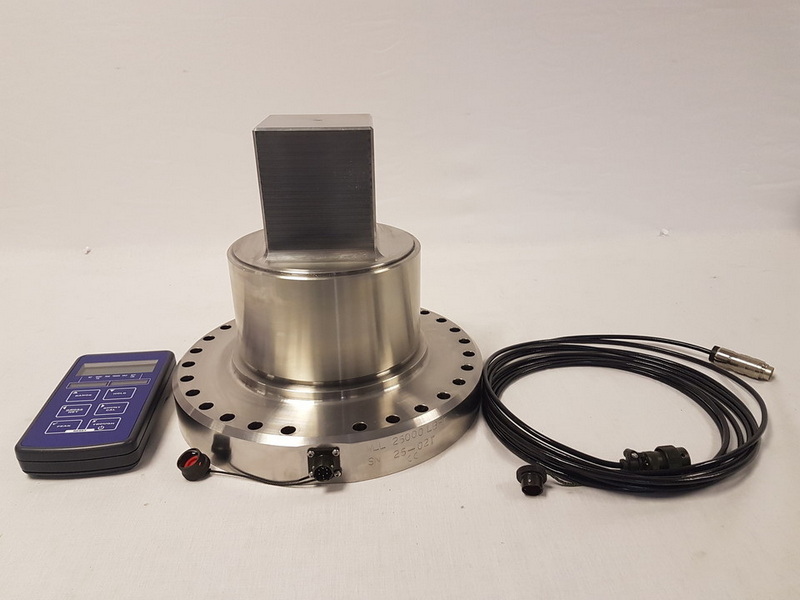

Regular calibration of torque load cells is vital to ensure accuracy. Calibration involves comparing the load cell's output against a known standard and making necessary adjustments.
1. Prepare Calibration Equipment: Use a calibrated torque wrench or a known weight.
2. Apply Known Torque: Gradually apply torque to the load cell and record the output.
3. Adjust Settings: If discrepancies are found, adjust the load cell settings accordingly.
Torque load cells provide highly accurate measurements, which are crucial in applications where precision is paramount.
These load cells can be used in various settings, from laboratory research to industrial manufacturing, making them a versatile tool for engineers.
Torque load cells can be affected by environmental conditions such as temperature and humidity, which may impact their accuracy.
The design and material of the load cell can limit its ability to withstand extreme conditions or overloads.
The field of torque load cells is evolving, with advancements in materials and technology leading to more robust and accurate sensors.
The future of torque load cells includes integration with IoT devices, allowing for real-time monitoring and data analysis, enhancing operational efficiency.
Torque load cells are essential tools in measuring torque across various industries. Their ability to convert mechanical force into electrical signals allows for precise measurements that are critical for safety and performance. As technology advances, the capabilities of torque load cells will continue to improve, making them even more valuable in industrial applications.
Torque load cells specifically measure torque, while regular load cells measure weight or force.
Calibration involves applying known torque and adjusting the load cell's output to match the standard.
Industries such as automotive, aerospace, and manufacturing frequently use torque load cells for testing and quality control.
Yes, some torque load cells are designed to measure both torque and force, depending on their configuration.
Common issues include environmental sensitivity, mechanical overload, and the need for regular calibration to maintain accuracy.
