Load cells are essential components in various industries, providing accurate measurements of force, weight, and pressure. They are widely used in applications ranging from industrial scales to medical devices. One critical aspect of load cell performance is the concept of zero balance. Understanding how load cell zero balance impacts measurement accuracy is vital for ensuring reliable data collection and operational efficiency. This article delves into the significance of zero balance, its effects on measurement accuracy, methods for adjustment, troubleshooting common issues, and best practices for maintaining optimal performance.
Zero balance refers to the state of a load cell when no load is applied, and it should ideally output a signal of zero. This condition is crucial because any deviation from zero can lead to measurement errors. Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied, the load cell generates a corresponding output signal. If the zero balance is not correctly set, the output signal may include an offset, leading to inaccurate measurements.
The importance of establishing a correct zero balance cannot be overstated. A load cell with an improper zero balance may produce erroneous readings, affecting the overall accuracy of the system. For instance, in a weighing application, if the zero balance is off by even a small amount, it can result in significant discrepancies in the final weight measurement.

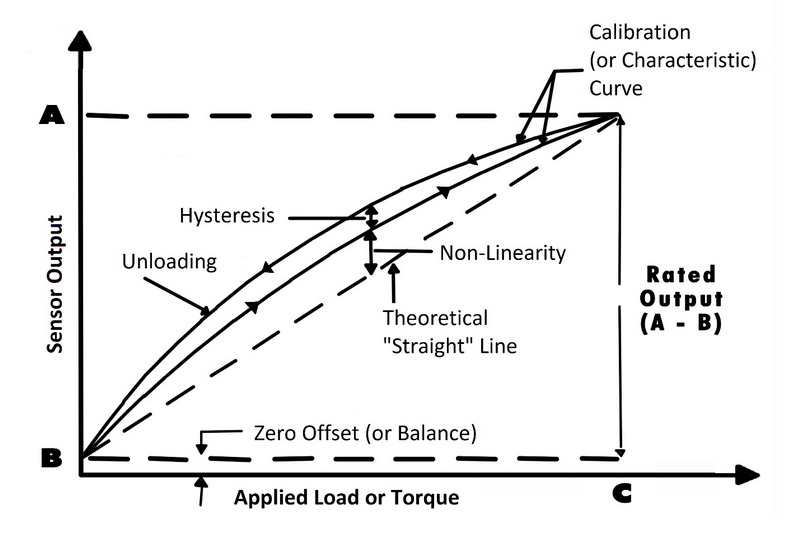

The relationship between zero balance and measurement accuracy is direct and significant. When the zero balance is not calibrated correctly, the output signal of the load cell can be skewed. This skewing can lead to various measurement errors, including:
- Offset Errors: These occur when the load cell outputs a non-zero signal at zero load. This can lead to consistently inaccurate readings, as all subsequent measurements will be offset by this error.
- Drift: Over time, environmental factors such as temperature changes, humidity, and mechanical stress can cause the zero balance to drift. This drift can result in gradual inaccuracies in measurements, necessitating regular recalibration.
- Non-linearity: If the zero balance is not set correctly, it can affect the linearity of the load cell's output. This means that the relationship between the applied load and the output signal may not be consistent, leading to further inaccuracies.
To illustrate, consider a scenario where a load cell is used to weigh a package. If the zero balance is off by 0.5 kg, every measurement taken will be inaccurate by that same amount. Over time, this can lead to significant discrepancies, especially in high-volume applications.
Adjusting the zero balance of a load cell is a straightforward process, but it requires careful attention to detail. Here are the steps to properly adjust the zero balance:
1. Preparation: Ensure that the load cell is installed correctly and that all connections are secure. Remove any load from the cell to start with a true zero condition.
2. Access the Calibration Settings: Most load cells come with a calibration interface, either through software or a physical control panel. Access these settings to begin the adjustment process.
3. Set the Zero Point: Using the calibration interface, set the zero point to the current output signal when no load is applied. This may involve entering a value or pressing a "zero" button.
4. Verify the Adjustment: After setting the zero balance, apply a known weight to the load cell and check the output. The reading should match the known weight. If it does not, repeat the adjustment process.
5. Document the Calibration: Keep a record of the calibration settings and any adjustments made. This documentation is essential for future reference and quality control.
Despite best efforts, issues with zero balance can still arise. Here are some common problems and their solutions:
- Inconsistent Readings: If the load cell produces inconsistent readings, it may indicate a problem with the zero balance. Recheck the calibration settings and ensure that the load cell is not subjected to external forces or vibrations.
- Drift Over Time: If measurements gradually become inaccurate, it may be due to drift in the zero balance. Regularly scheduled recalibrations can help mitigate this issue. Consider implementing a routine maintenance schedule to check the zero balance periodically.
- Environmental Factors: Changes in temperature and humidity can affect load cell performance. Ensure that the load cell is installed in a controlled environment, and consider using temperature compensation features if available.
- Mechanical Stress: Excessive mechanical stress on the load cell can lead to permanent deformation, affecting the zero balance. Ensure that the load cell is not overloaded and is used within its specified limits.
In conclusion, load cell zero balance is a critical factor that directly impacts measurement accuracy. Understanding its significance, methods for adjustment, and troubleshooting techniques is essential for anyone working with load cells. By maintaining proper zero balance, users can ensure reliable and accurate measurements, ultimately leading to improved operational efficiency and data integrity.
Regular calibration and maintenance are key to preventing issues related to zero balance. By implementing best practices and being aware of potential problems, users can maximize the performance of their load cells and achieve consistent results.
The ideal zero balance for a load cell is a signal output of zero when no load is applied. This ensures that all measurements taken are accurate and free from offset errors.
It is recommended to calibrate your load cell at least once a year or more frequently if it is used in critical applications or subjected to harsh environmental conditions.
Signs of a drifting zero balance include inconsistent readings, gradual changes in measurement accuracy, and discrepancies when comparing known weights.
Yes, temperature can significantly affect load cell performance. Changes in temperature can cause materials to expand or contract, leading to shifts in zero balance and measurement accuracy.
If your load cell is consistently off, first check the zero balance and recalibrate if necessary. If the problem persists, inspect for mechanical damage, environmental factors, or consult the manufacturer for further assistance.
