Load cells are the unsung heroes of the modern weighing world, playing a crucial role in countless industries and applications. These sophisticated devices are at the heart of precision weight measurement, converting mechanical force into measurable electrical signals. From the scales in your local grocery store to the complex weighing systems in industrial facilities, load cells are the key components that ensure accuracy and reliability in weight determination.
At its core, weight measurement is about quantifying the force exerted by an object due to gravity. Load cells ingeniously translate this force into an electrical signal that can be processed and displayed as a weight value. This process, known as force transduction, is the foundation of all modern weighing systems.

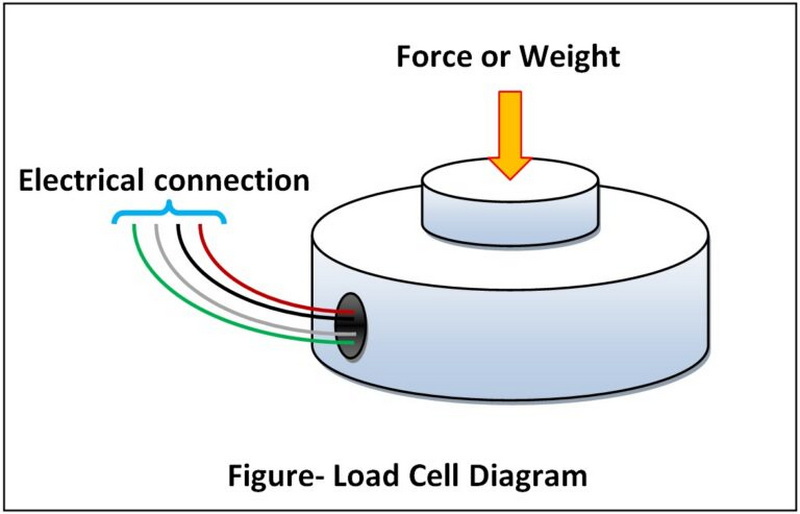

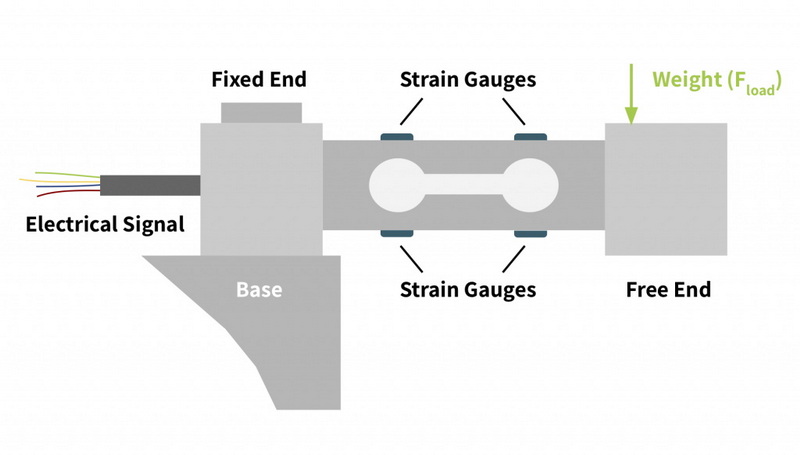

The majority of load cells utilize strain gauge sensors to achieve their remarkable precision. These sensors are typically thin, metallic foils arranged in a specific pattern and bonded to the load cell's body. When weight is applied, the load cell deforms slightly, causing the strain gauges to stretch or compress. This deformation alters the electrical resistance of the gauges, which is then measured and converted into a weight reading.
The conversion of mechanical force to an electrical signal is a multi-step process:
1. Force Application: Weight is applied to the load cell.
2. Mechanical Deformation: The load cell's body deforms slightly under the applied weight.
3. Strain Gauge Response: The strain gauges detect this deformation and change their electrical resistance accordingly.
4. Signal Generation: The change in resistance is converted into a small electrical voltage.
5. Signal Amplification: This weak signal is amplified for easier measurement and processing.
6. Data Processing: The amplified signal is converted into a digital format and processed to display the weight.

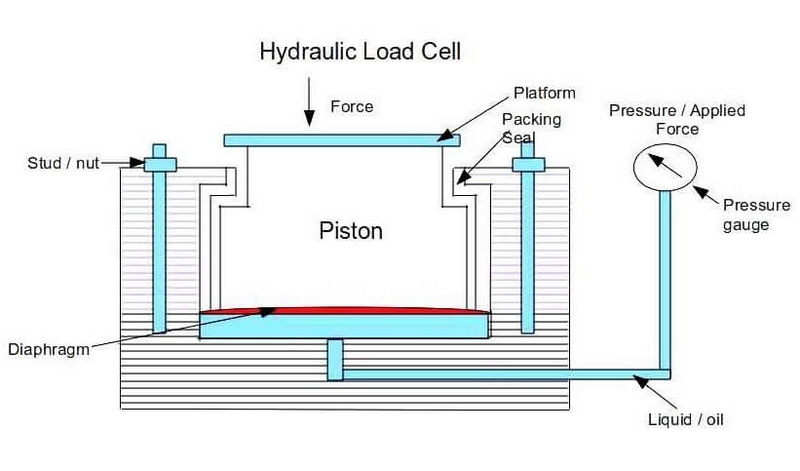

Load cells come in various types, each designed for specific applications and environments. Understanding these types is crucial for selecting the right load cell for a particular weighing task.
Single point load cells are commonly used in bench scales and small platform scales. They are designed to accurately measure weight regardless of where the load is placed on the platform. These load cells are ideal for retail environments, laboratories, and small industrial applications.
Shear beam load cells are robust and versatile, making them suitable for a wide range of industrial applications. They are often used in tank weighing, hopper scales, and conveyor belt scales. Their design allows for easy installation and maintenance, making them a popular choice in many industries.
Compression load cells are designed to measure force in a single direction and are often used in high-capacity weighing applications. They are commonly found in truck scales, silo weighing systems, and large industrial scales where heavy loads need to be measured accurately.
Tension load cells measure force in the opposite direction of compression cells. They are used in applications where hanging loads need to be measured, such as crane scales, material testing, and cable tension monitoring.
While load cells are the core components of weighing systems, achieving high precision requires careful integration with other elements:
The electrical signal from a load cell is typically very small, often in the millivolt range. Signal conditioning circuits amplify and filter this signal, preparing it for analog-to-digital conversion. This step is crucial for maintaining accuracy and reducing noise in the measurement.
To process the weight data digitally, the analog signal from the load cell must be converted to a digital format. High-resolution analog-to-digital converters (ADCs) ensure that the precision of the load cell is maintained throughout the measurement process.
Load cells can be sensitive to temperature changes, which can affect their accuracy. Advanced weighing systems incorporate temperature compensation techniques to maintain precision across a wide range of environmental conditions.
In industrial settings, load cells must withstand challenging conditions while maintaining accuracy. Industrial weight sensors are designed with several key features:
Industrial load cells are built to withstand shock, vibration, and harsh chemicals. They often feature stainless steel construction and hermetic sealing to protect against moisture and contaminants.
Many industrial applications require the measurement of extremely heavy loads. Load cells designed for these applications can measure weights ranging from a few kilograms to hundreds of tons.
In critical applications, load cells may incorporate safety features such as overload protection and redundancy to ensure reliable operation and prevent catastrophic failures.
Calibration is essential for maintaining the accuracy of load cells and weighing systems. Regular calibration ensures that the load cell's output remains consistent and true to the applied weight.
1. Zero Adjustment: The system is set to read zero with no load applied.
2. Span Calibration: Known weights are applied to verify and adjust the system's response across its full range.
3. Linearity Check: Multiple points are tested to ensure the system's response is linear across its range.
4. Repeatability Testing: Multiple measurements are taken to confirm consistent results.
For many industries, it's crucial that load cell calibration is traceable to national or international standards. This ensures that measurements are consistent and comparable across different locations and time periods.
Modern weighing systems do more than just display weight values. They often incorporate sophisticated data analysis capabilities:
In manufacturing and quality control applications, weight data is used to monitor and control processes in real-time. Statistical tools help identify trends and anomalies, allowing for quick adjustments to maintain product consistency.
Weight data from load cells can be integrated into inventory management systems, providing real-time tracking of material quantities in silos, tanks, and warehouses.
By analyzing patterns in weight data over time, predictive maintenance algorithms can identify potential issues with equipment before they lead to failures or inaccuracies.
As technology continues to advance, load cells and weighing systems are evolving to meet new challenges and opportunities:
Load cells are increasingly being connected to IoT networks, allowing for remote monitoring, data collection, and system diagnostics. This connectivity enables more efficient operations and predictive maintenance strategies.
Advances in materials science and manufacturing techniques are leading to smaller, more sensitive load cells. This miniaturization opens up new applications in fields such as robotics and wearable technology.
Emerging technologies are enabling load cells to self-calibrate or provide detailed diagnostics about their calibration status, reducing maintenance requirements and improving reliability.
Load cells are the foundation of modern weight measurement technology, enabling precise and reliable weighing across a vast array of applications. From the simple bathroom scale to complex industrial systems, load cells play a crucial role in our daily lives and in the functioning of numerous industries. As technology continues to advance, we can expect load cells to become even more accurate, versatile, and integrated into the smart systems of the future.Understanding the principles behind load cell operation, the various types available, and the importance of proper calibration and data analysis is essential for anyone working with or relying on weighing systems. As we continue to push the boundaries of precision and efficiency, load cells will undoubtedly remain at the heart of weight measurement technology, evolving to meet the challenges of tomorrow's weighing needs.
A1: Load cells can be extremely accurate, with high-precision models achieving accuracies of 0.03% of full scale or better. The accuracy depends on factors such as the quality of the load cell, proper installation, regular calibration, and environmental conditions.
A2: Yes, certain types of load cells are designed to measure dynamic loads. These dynamic load cells can capture rapidly changing forces and are often used in applications such as impact testing, vibration analysis, and high-speed weighing systems.
A3: The lifespan of a load cell can vary greatly depending on its construction, usage, and environmental conditions. With proper care and maintenance, high-quality load cells can last for many years, often 10 years or more. However, factors such as overloading, shock loads, and harsh environments can significantly reduce their lifespan.
A4: Yes, wireless load cells are becoming increasingly common. These devices use radio frequency or Bluetooth technology to transmit weight data without the need for physical cables. Wireless load cells offer advantages in terms of flexibility and ease of installation, particularly in applications where running cables is difficult or impractical.
A5: Yes, there are specially designed submersible load cells that can operate underwater. These load cells are hermetically sealed to protect their internal components from moisture. They are used in various marine and underwater applications, such as oceanographic research, offshore oil and gas operations, and underwater construction projects.
