In the world of force measurement technology, strain gauge load cells play a crucial role in various industries where precise weight and force measurements are required. These devices have revolutionized the way we measure and monitor forces, providing accurate and reliable data for applications ranging from industrial processes to scientific research. In this comprehensive article, we will delve into the intricate workings of strain gauge load cells, exploring their construction, working principle, and applications.
A strain gauge load cell is a type of transducer that converts mechanical force into an electrical signal. It is designed to measure weight, force, or load with high precision. The core component of a strain gauge load cell is the strain gauge itself, which is a small, thin device that changes its electrical resistance when subjected to mechanical stress.

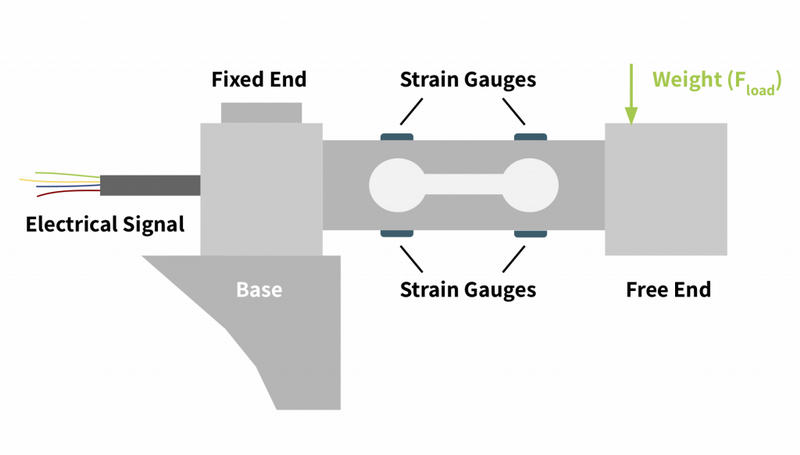

The construction of a strain gauge load cell typically involves the following components:
1. Spring element: This is the main body of the load cell, usually made of materials like aluminum, alloy steel, or stainless steel. It is designed to deform slightly under applied force.
2. Strain gauges: These are thin metallic foils or semiconductor devices bonded to specific locations on the spring element.
3. Wheatstone bridge circuit: This electrical circuit configuration is used to measure the small changes in resistance produced by the strain gauges.
4. Protective housing: This enclosure protects the internal components from environmental factors and physical damage.
The working principle of a strain gauge load cell is based on the concept of elastic deformation and the piezoelectric effect. Here's a step-by-step explanation of how these devices function:
1. Force application: When a force or load is applied to the load cell, it causes the spring element to deform slightly.
2. Strain gauge deformation: As the spring element deforms, the strain gauges bonded to its surface also experience deformation. This deformation causes a change in the electrical resistance of the strain gauges.

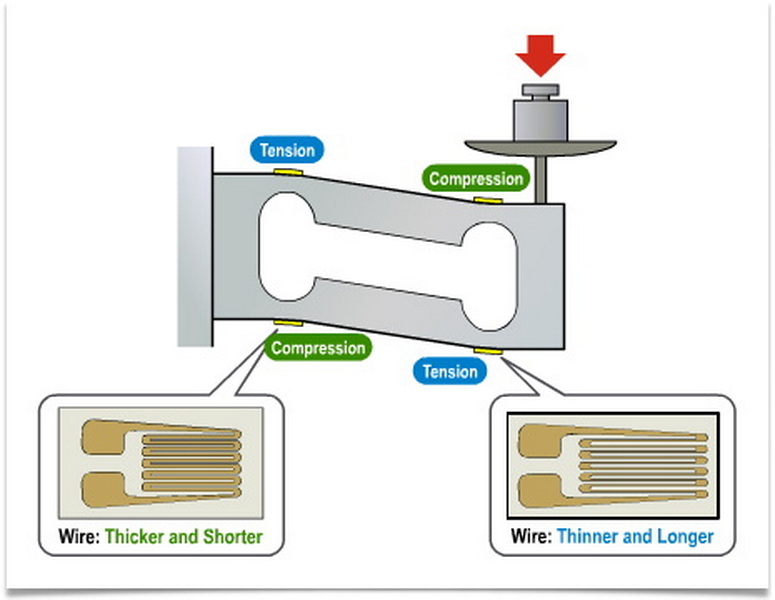

3. Resistance change: The change in resistance is directly proportional to the applied force. Strain gauges in tension experience an increase in resistance, while those in compression experience a decrease.

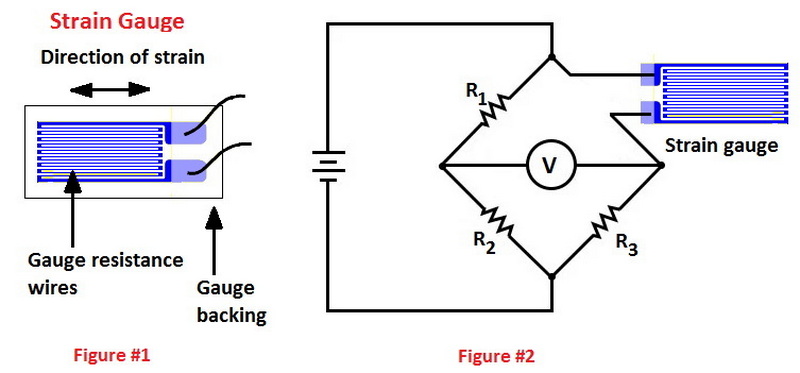

4. Wheatstone bridge circuit: The strain gauges are typically arranged in a Wheatstone bridge circuit configuration. This arrangement allows for precise measurement of the small changes in resistance.
5. Electrical output: The Wheatstone bridge converts the resistance changes into a measurable voltage output. This output is typically in the range of a few millivolts.
6. Signal conditioning: The small voltage output is then amplified and processed by signal conditioning circuitry to produce a usable electrical signal.
7. Calibration: The load cell is calibrated to establish a relationship between the applied force and the electrical output, ensuring accurate measurements.
There are several types of strain gauge load cells, each designed for specific applications:
1. S-Beam load cells
2. Single point load cells

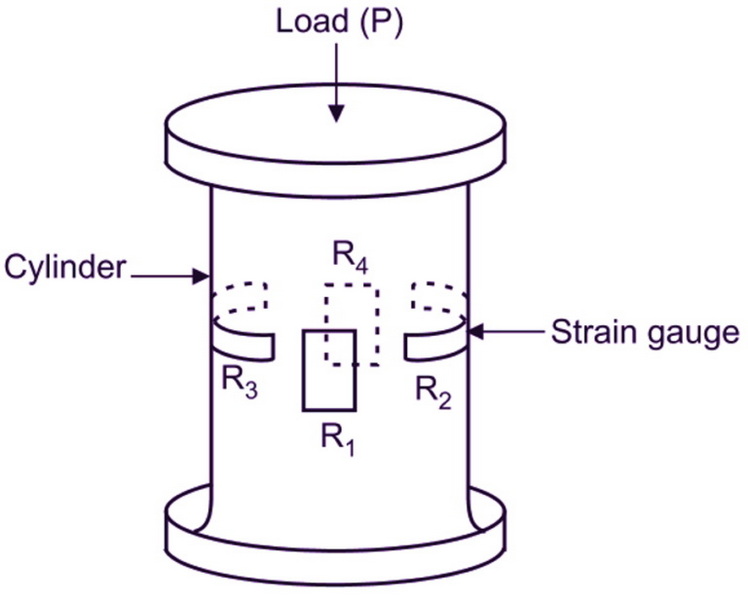

3. Compression load cells
4. Tension load cells
5. Shear beam load cells
6. Canister load cells
Each type has its unique characteristics and is suited for different measurement scenarios.
Strain gauge load cells find applications in numerous industries and fields, including:
1. Industrial weighing systems
2. Material testing machines
3. Aerospace and automotive testing
4. Medical equipment (e.g., patient lifts, hospital beds)
5. Robotics and automation
6. Agriculture (e.g., grain silos, livestock weighing)
7. Shipping and logistics
8. Research and development laboratories
Strain gauge load cells offer several advantages over other force measurement technologies:
1. High accuracy and precision
2. Good long-term stability
3. Relatively low cost
4. Wide range of capacities (from a few grams to hundreds of tons)
5. Compact size and versatile designs
6. Ability to measure both static and dynamic loads
7. Temperature compensation capabilities
While strain gauge load cells are highly effective, there are some challenges and considerations to keep in mind:
1. Temperature sensitivity: Strain gauges can be affected by temperature changes, requiring compensation techniques.
2. Overload protection: Load cells can be damaged if subjected to forces beyond their rated capacity.
3. Environmental factors: Humidity, dust, and vibrations can affect load cell performance.
4. Calibration requirements: Regular calibration is necessary to maintain accuracy over time.
As technology advances, we can expect to see several developments in strain gauge load cell technology:
1. Improved materials for better performance and durability
2. Integration with IoT and wireless technologies for remote monitoring
3. Advanced signal processing techniques for enhanced accuracy
4. Miniaturization for use in smaller devices and applications
5. Self-diagnosing and self-calibrating load cells
Strain gauge load cells have become an indispensable tool in the world of force measurement. Their ability to provide accurate and reliable measurements has made them essential in countless applications across various industries. As we continue to push the boundaries of precision and efficiency, strain gauge load cells will undoubtedly play a crucial role in shaping the future of force measurement technology.
A1: The frequency of calibration depends on the application and usage conditions. Generally, it is recommended to calibrate strain gauge load cells at least once a year. However, in critical applications or harsh environments, more frequent calibrations may be necessary. Always follow the manufacturer's recommendations and industry standards for calibration intervals.
A2: The lifespan of a strain gauge load cell can vary depending on factors such as usage, environmental conditions, and maintenance. With proper care and use within specified limits, a high-quality strain gauge load cell can last for many years, typically 5 to 10 years or more. Regular calibration and proper handling can help extend the lifespan of the load cell.
A3: Yes, many strain gauge load cells are designed to measure both tension and compression forces. These are often called tension/compression load cells or universal load cells. However, some load cells are specifically designed for either tension or compression measurements only. It's important to choose the right type of load cell for your specific application.
A4: Environmental factors can significantly impact the performance of strain gauge load cells. Temperature changes can cause thermal expansion or contraction of the load cell material, affecting measurements. Humidity can lead to moisture ingress, potentially causing corrosion or electrical issues. Vibrations and shock can introduce noise in the measurements or even damage the load cell. Many modern load cells incorporate temperature compensation and protective housings to mitigate these effects.
A5: The main difference lies in their working principle. Strain gauge load cells use electrical resistance changes in strain gauges to measure force, while hydraulic load cells use fluid pressure changes. Strain gauge load cells are generally more accurate, have faster response times, and are more compact. Hydraulic load cells, on the other hand, are more robust and can be used in hazardous environments where electrical devices might pose a risk. Strain gauge load cells are more commonly used in modern applications due to their versatility and precision.
