Tension load cells are essential devices used in various industries to measure tensile forces. These sensors convert mechanical force into an electrical signal, allowing for precise measurements in applications ranging from industrial weighing to material testing. Understanding how tension load cells work is crucial for professionals in engineering, manufacturing, and quality control.

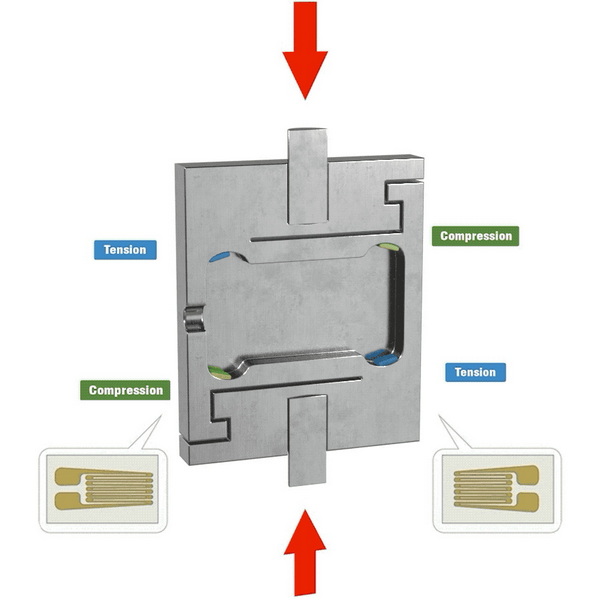

Tension load cells operate on the principle of strain gauges, which are devices that measure the amount of deformation (strain) experienced by an object when a force is applied. When a tensile force is exerted on the load cell, it stretches, causing the strain gauges to deform. This deformation alters the electrical resistance of the gauges, which is then converted into an electrical signal proportional to the force applied.
The primary components of a tension load cell include:
- Strain Gauges: These are the heart of the load cell, detecting changes in resistance due to deformation.
- Transducer: Converts the mechanical force into an electrical signal.
- Mounting Hardware: Ensures the load cell is securely attached to the structure or equipment being measured.

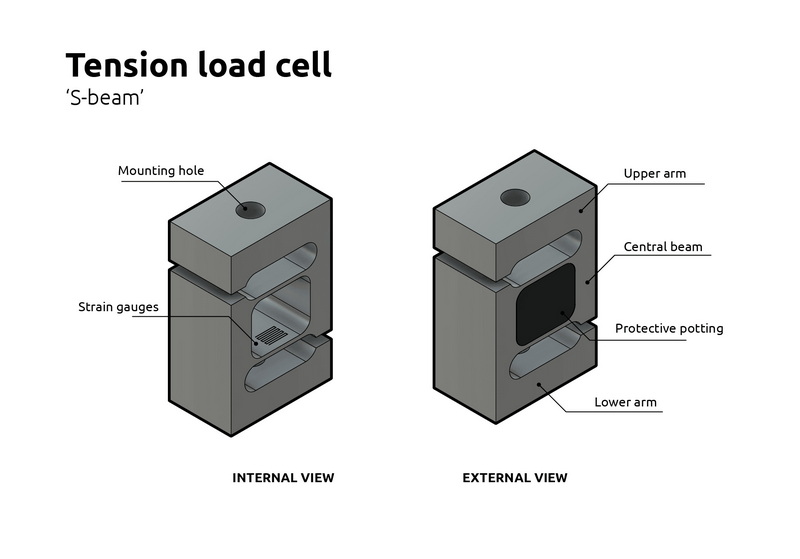

Tension load cells come in various designs, each suited for specific applications. The most common type is the S-Type load cell, characterized by its shape and ability to measure both tension and compression forces.
These load cells are widely used in applications where the load is suspended, such as in cranes and hoists. Their design allows for easy installation and accurate measurements.
Other types of tension load cells include:
- Tension Links: Used in lifting applications, these load cells connect between the hook and the load.
- Compression Load Cells: While primarily designed for compressive forces, some can also measure tension.
Tension load cells are utilized in a variety of industries, including:
- Manufacturing: For monitoring the tension in cables and wires during production.
- Construction: To ensure safety in lifting operations.
- Material Testing: Measuring the tensile strength of materials.
In the automotive industry, tension load cells are used to test the strength of components under stress, ensuring they meet safety standards. In the aerospace sector, they help monitor the tension in cables and structures, critical for flight safety.
Proper calibration and maintenance of tension load cells are vital for ensuring accurate measurements. Calibration involves adjusting the load cell to ensure its output matches the known input force.
- Regularly check for signs of wear or damage.
- Ensure that the load cell is clean and free from debris.
- Perform periodic recalibration to maintain accuracy.
Tension load cells offer several advantages:
- Accuracy: They provide precise measurements, essential for quality control.
- Reliability: Designed to withstand harsh conditions, they are durable and dependable.
- Versatility: Suitable for a wide range of applications, from industrial to laboratory settings.
While tension load cells are highly effective, they are not without challenges. Environmental factors such as temperature, humidity, and vibration can affect their performance. It is crucial to consider these factors when selecting and installing load cells.
Some common issues include:
- Drift: Changes in output over time, often due to temperature fluctuations.
- Non-linearity: The output does not correspond linearly to the input force, which can be corrected through calibration.
The future of load cell technology looks promising, with innovations focusing on improving accuracy, reducing size, and enhancing connectivity. Wireless load cells are becoming increasingly popular, allowing for remote monitoring and data collection.
Advancements in materials and electronics are leading to more robust and sensitive load cells, which will expand their applications in various fields, including robotics and automation.
Tension load cells play a crucial role in measuring tensile forces across multiple industries. Their ability to convert mechanical force into electrical signals makes them indispensable for ensuring safety and efficiency in operations. As technology continues to evolve, tension load cells will become even more integral to modern engineering and manufacturing processes.
A tension load cell is a type of sensor used to measure tensile forces, converting mechanical stress into an electrical signal.
Calibration involves applying known weights to the load cell and adjusting its output to match the expected values.
They are commonly used in manufacturing, construction, and material testing to monitor and measure tensile forces.
Factors such as temperature and humidity can cause drift and non-linearity in measurements, affecting accuracy.
Emerging trends include wireless load cells and advancements in materials that enhance sensitivity and durability.
This comprehensive guide provides a detailed understanding of tension load cells, their operation, applications, and future trends, ensuring that readers are well-informed about this critical technology.
