Load cells are essential components in various weighing systems, converting force or weight into an electrical signal. Their accuracy and reliability are crucial for industries ranging from manufacturing to healthcare. Regular testing of load cells ensures they function correctly, providing precise measurements. This article will explore the methods for testing load cells, common issues encountered, and best practices for maintenance.

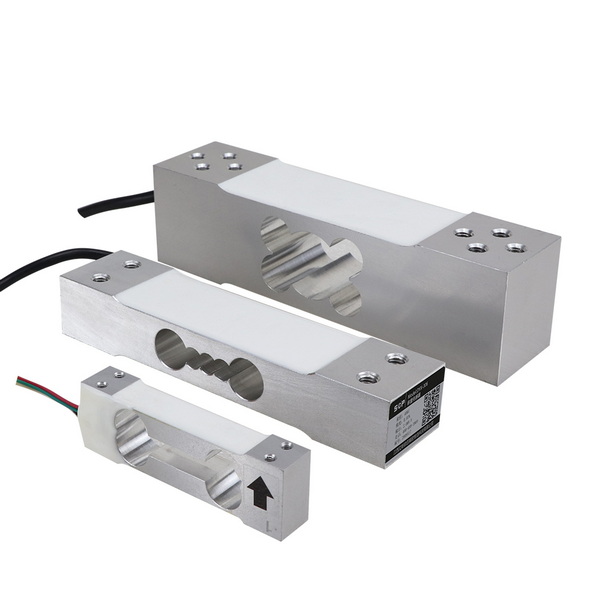

Load cells are transducers that convert mechanical force into an electrical signal. They come in various types, including strain gauge, hydraulic, and pneumatic load cells, each suited for specific applications. For instance, strain gauge load cells are widely used in industrial scales, while hydraulic load cells are often found in heavy-duty applications like truck scales.
Load cells are utilized in numerous industries, including:
- Manufacturing: For quality control and inventory management.
- Healthcare: In medical scales for accurate patient weight measurement.
- Transportation: For weighing cargo and ensuring compliance with weight regulations.
Regular testing of load cells is vital for maintaining their accuracy and reliability. Faulty load cells can lead to incorrect measurements, resulting in financial losses and safety hazards. Testing helps identify issues before they escalate, ensuring consistent performance.
There are several methods to test load cells, each with its own advantages. Here, we will focus on two primary methods: using a digital multimeter and performing a calibration check.
A digital multimeter (DMM) is a versatile tool for testing load cells. Here's how to use it effectively:
1. Preparation: Disconnect the load cell from any power source and ensure it is isolated.
2. Connect the DMM: Set the multimeter to measure resistance (Ohms) and connect the leads to the load cell terminals.
3. Measure Resistance: Check the resistance values against the specifications provided by the manufacturer. Any significant deviation may indicate a problem.
4. Check Output Voltage: Reconnect the load cell to its power source and measure the output voltage while applying a known weight. The output should correspond to the expected value based on the load cell's specifications.
Calibration is crucial for ensuring the accuracy of load cells. Here's a step-by-step guide:
1. Set Up the Load Cell: Connect the load cell to a calibrated weight indicator.
2. Apply Known Weights: Gradually apply known weights to the load cell and record the output readings.
3. Compare Readings: Compare the recorded values with the expected values. Any discrepancies should be noted for further investigation.
4. Adjust Calibration: If necessary, adjust the calibration settings on the weight indicator to align with the measured values.
Load cells can encounter various issues that affect their performance. Here are some common problems and troubleshooting techniques:
- Drifting Zero Balance: This may indicate a mechanical issue or electrical interference.
- Inconsistent Readings: Fluctuating readings can result from poor connections or environmental factors.
- Overload Damage: Excessive weight can permanently damage load cells, leading to inaccurate measurements.
- Visual Inspection: Check for physical damage, loose connections, or corrosion.
- Electrical Tests: Use a multimeter to check for continuity and resistance.
- Environmental Checks: Ensure the load cell is not exposed to extreme temperatures or humidity, which can affect performance.
Maintaining load cells is essential for ensuring their longevity and accuracy. Here are some best practices:
- Regular Inspections: Conduct routine checks for physical and electrical integrity.
- Calibration: Regularly calibrate load cells to maintain accuracy.
- Documentation: Keep detailed records of tests, calibrations, and maintenance activities for future reference.
Testing load cells is a critical process that ensures their accuracy and reliability in various applications. By understanding the testing methods, common issues, and maintenance practices, users can ensure their load cells perform optimally. Regular testing not only prevents costly errors but also enhances safety and efficiency in operations.
Load cells convert mechanical force or weight into an electrical signal, allowing for accurate weight measurement in various applications.
Load cells should be tested regularly, typically every six months, or more frequently in high-use environments.
Signs include inconsistent readings, drifting zero balance, and physical damage to the load cell or its connections.
Basic tests can be performed with a digital multimeter, but for comprehensive testing, specialized equipment is recommended.
Calibration involves applying known weights to the load cell and adjusting the output readings to match expected values.
This comprehensive guide provides a thorough understanding of load cell testing, ensuring users can maintain accurate and reliable weighing systems.
