Load cells are essential components in various measurement systems, converting force or weight into an electrical signal. However, the signals produced by load cells are often very weak, necessitating amplification for accurate readings. This article explores the methods and techniques for amplifying load cell signals, ensuring reliable and precise measurements in various applications.

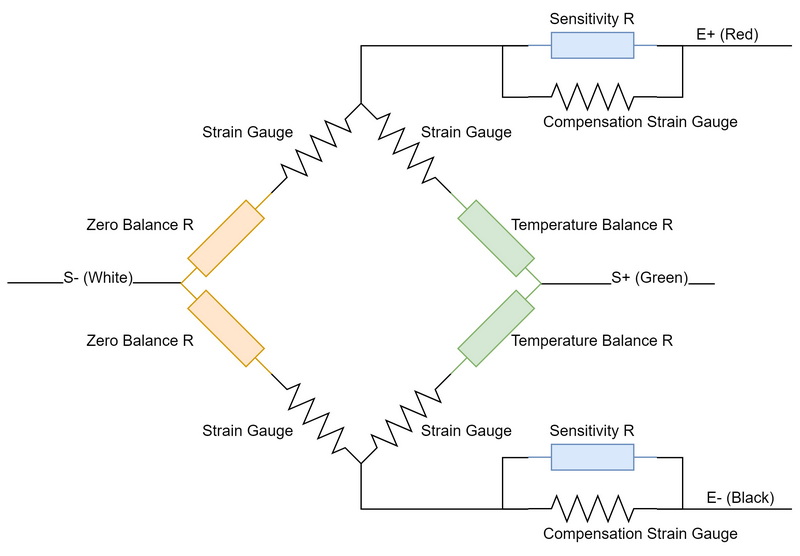

A load cell is a transducer that converts a force into an electrical signal. The most common type is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is then converted into a voltage signal proportional to the load.
Load cells come in various types, including:
- Compression Load Cells: Used for measuring compressive forces.
- Tension Load Cells: Designed to measure tensile forces.
- Shear Beam Load Cells: Commonly used in weighing scales.
Each type has specific applications, from industrial scales to medical devices.
The electrical signals generated by load cells are typically in the millivolt range, making them susceptible to noise and interference. Amplifying these signals is crucial for several reasons:
- Improved Accuracy: Amplified signals are easier to read and process, leading to more accurate measurements.
- Noise Reduction: Stronger signals can better withstand electrical noise, improving the reliability of the data.
- Compatibility with Data Acquisition Systems: Many data acquisition systems require higher voltage levels for proper operation.

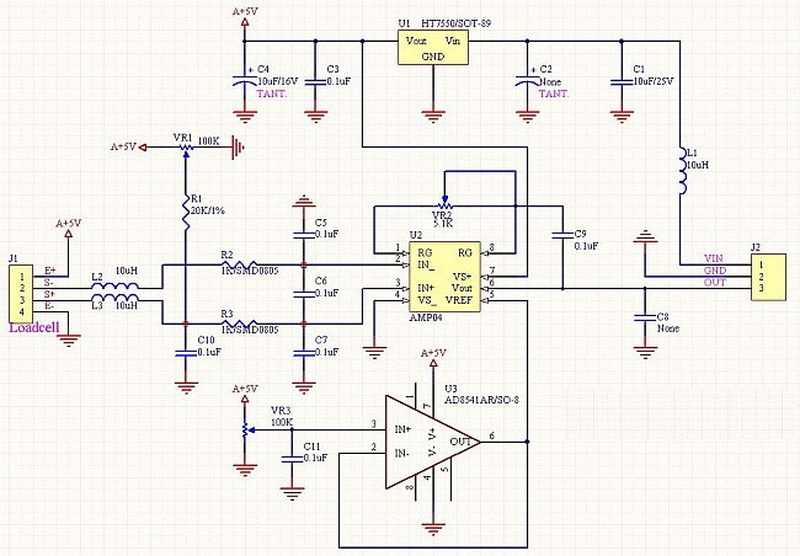

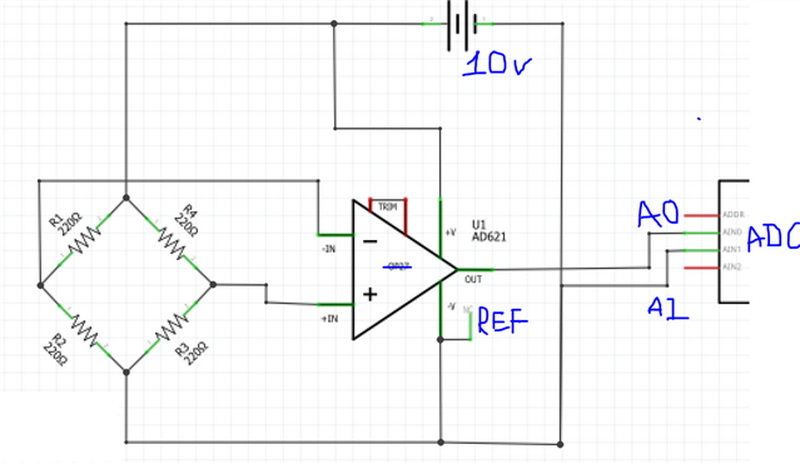

Instrumentation amplifiers are specifically designed for low-level signal amplification. They provide high input impedance, which is essential for load cell applications. A popular choice is the AD623 instrumentation amplifier, which can amplify the load cell signal while rejecting common-mode noise.

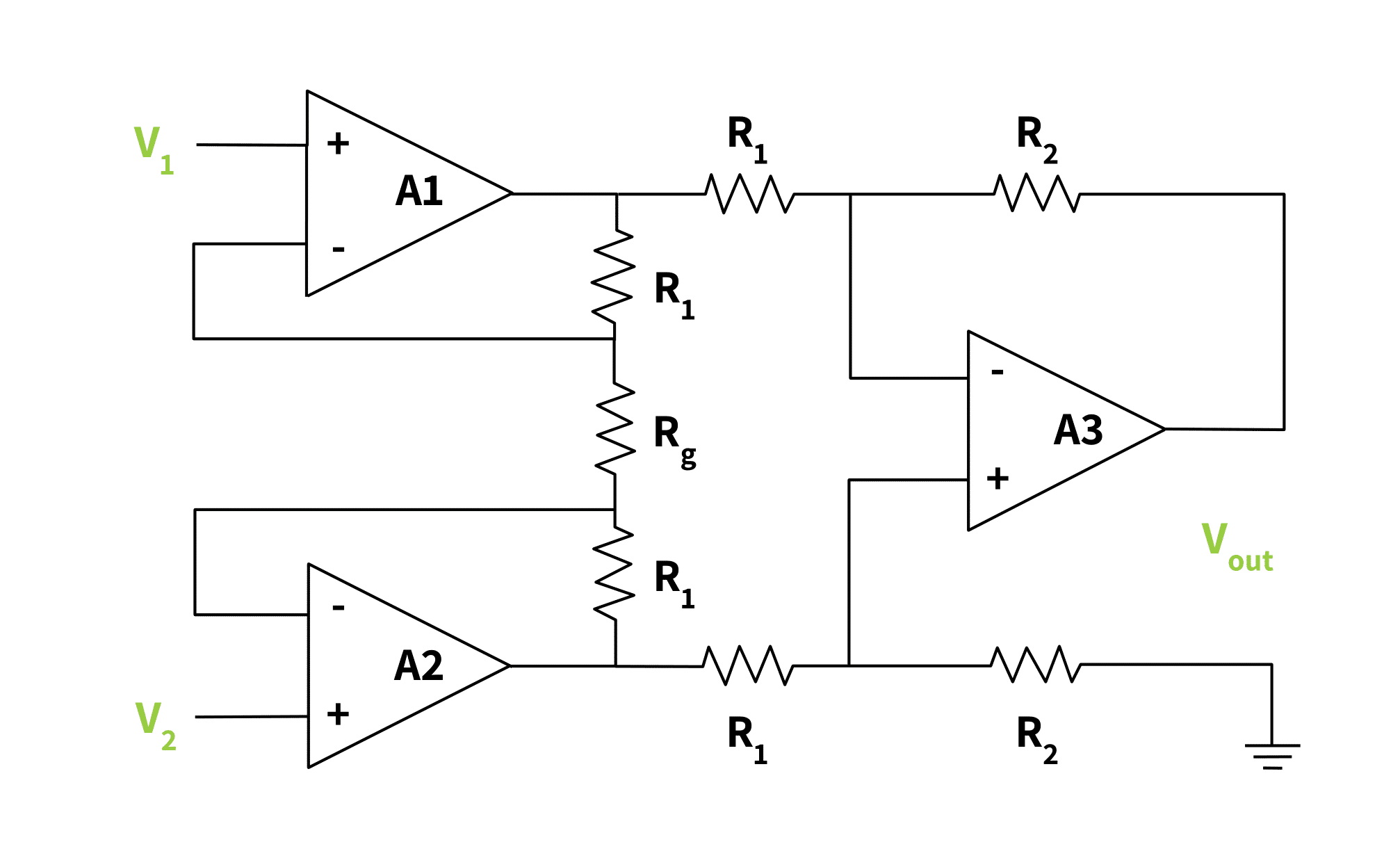

Differential amplifiers can also be used to amplify load cell signals. They work by amplifying the difference between two input signals while rejecting any common noise.
PGAs allow for adjustable gain settings, making them versatile for various applications. They can be programmed to amplify signals to specific levels, accommodating different load cell outputs.
Signal conditioning is vital for ensuring the accuracy and reliability of load cell measurements. Key techniques include:
- Filtering Noise: Implementing low-pass filters can help eliminate high-frequency noise from the signal.
- Calibration: Regular calibration of load cells ensures that the output remains accurate over time.
- Temperature Compensation: Load cells can be affected by temperature changes, so incorporating temperature compensation techniques is essential for maintaining accuracy.
Load cells are widely used in various industries, including:
- Manufacturing: For weighing raw materials and finished products.
- Medical: In devices like patient scales and force measurement systems.
- Automotive: For testing components and systems under load.
For hobbyists and engineers, integrating load cells with microcontrollers like Arduino can lead to exciting projects. For instance, creating a digital scale using a load cell and an HX711 amplifier is a popular project that demonstrates the principles of load cell signal amplification.
Amplifying load cell signals is crucial for accurate and reliable measurements in various applications. By utilizing instrumentation amplifiers, differential amplifiers, and signal conditioning techniques, users can enhance the performance of load cells significantly. As technology advances, the methods for amplifying load cell signals will continue to evolve, leading to even more precise and efficient measurement systems.
A load cell is a device that converts force or weight into an electrical signal. It typically uses strain gauges to measure deformation caused by an applied load.
Signal amplification is necessary because load cell signals are often very weak and susceptible to noise, making it difficult to obtain accurate measurements.
Instrumentation amplifiers and differential amplifiers are commonly used for amplifying load cell signals due to their high input impedance and noise rejection capabilities.
Implementing low-pass filters and using differential amplifiers can help reduce noise in load cell signals, improving measurement accuracy.
Load cells are used in various applications, including industrial weighing systems, medical devices, and automotive testing, among others.
