Building a load cell cable is an essential skill for anyone working with load cells in various applications, from industrial weighing systems to DIY projects. This article will guide you through the process of creating a load cell cable, covering materials, step-by-step instructions, troubleshooting tips, applications, and safety considerations.
To build a load cell cable, you will need the following materials:
- Load Cell: The primary component that measures weight or force.
- Cable: A suitable cable for connecting the load cell to the signal processing unit. Typically, a 4-wire shielded cable is used.
- Connectors: Depending on your application, you may need connectors such as JST, Molex, or terminal blocks.
- Heat Shrink Tubing: For insulation and protection of the connections.
- Soldering Iron and Solder: For making secure electrical connections.
- Multimeter: To test connections and ensure proper functionality.
- Wire Strippers: For preparing the cable ends.
- Electrical Tape: For additional insulation and securing connections.
Begin by identifying the load cell's wiring configuration. Most load cells have four wires: red (excitation+), black (excitation-), green (signal+), and white (signal-). Consult the load cell's datasheet for specific wiring details.
Cut the shielded cable to the desired length, ensuring it is long enough to reach from the load cell to the signal processing unit.
Using wire strippers, carefully strip about 1 inch of insulation from both ends of the cable. Be cautious not to damage the inner wires.
Match the wires from the load cell to the corresponding wires in the cable:
- Red to Red (Excitation+)
- Black to Black (Excitation-)
- Green to Green (Signal+)
- White to White (Signal-)
Using a soldering iron, solder the connections securely. Ensure that there are no short circuits between the wires.
Once the soldering is complete, slide heat shrink tubing over each connection and apply heat to shrink it tightly around the wires. This will provide insulation and protection against moisture and abrasion.
Before final installation, use a multimeter to test the continuity of each wire. Ensure that there are no shorts and that each wire is properly connected.
Connect the other end of the cable to the signal processing unit, following the manufacturer's wiring instructions.
Use electrical tape to secure the cable and prevent it from moving or being damaged during operation.
After installation, calibrate the load cell according to the manufacturer's instructions to ensure accurate measurements.
When working with load cell cables, you may encounter several common issues:
- No Signal: Check all connections for continuity and ensure that the load cell is powered correctly.
- Inaccurate Readings: Ensure that the load cell is calibrated properly and that there are no mechanical obstructions affecting its operation.
- Interference: Use shielded cables to minimize electrical interference from nearby equipment.
Load cell cables are used in various applications, including:
- Industrial Weighing Systems: Used in scales for weighing products in manufacturing and shipping.

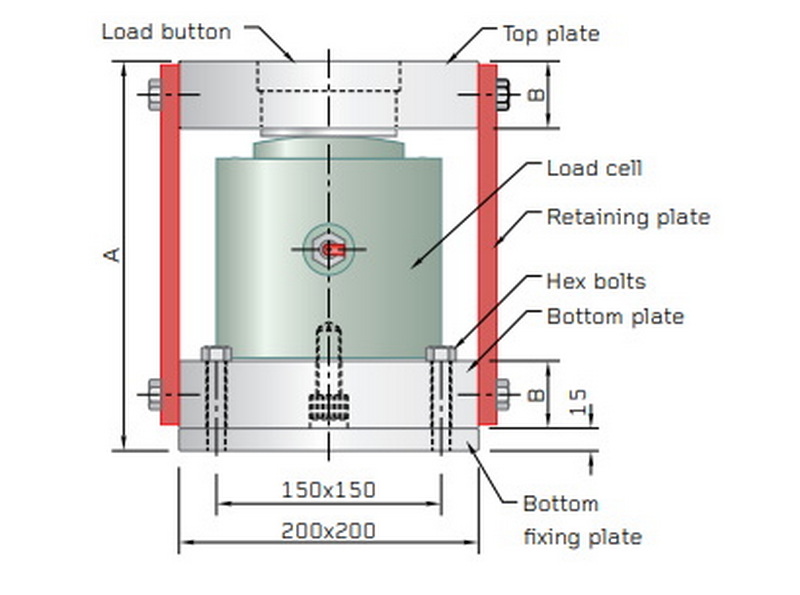

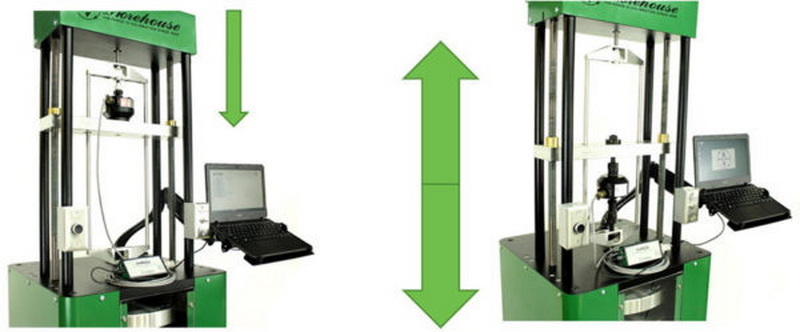

- Automotive Testing: Used in load testing for vehicle components.
- Medical Equipment: Used in devices that require precise weight measurements, such as hospital beds.
- Agricultural Scales: Used in weighing livestock and feed.
When working with load cell cables, consider the following safety tips:
- Always Disconnect Power: Before making any connections or modifications, ensure that the power is turned off.
- Use Proper Tools: Use insulated tools to prevent electrical shock.
- Follow Manufacturer Guidelines: Always adhere to the manufacturer's instructions for installation and calibration.
Building a load cell cable is a straightforward process that requires careful attention to detail. By following the steps outlined in this article, you can create a reliable connection for your load cell applications. Remember to troubleshoot any issues that arise and prioritize safety throughout the process.
A load cell is a transducer that converts a force or weight into an electrical signal, which can be measured and recorded.
Choose a shielded cable with at least four wires to ensure proper signal transmission and protection against interference.
No, a signal processing unit is necessary to interpret the electrical signals from the load cell and convert them into readable measurements.
Check the calibration of the load cell, ensure all connections are secure, and verify that there are no mechanical obstructions affecting its operation.
Calibration frequency depends on the application and usage. It is recommended to calibrate at least once a year or whenever significant changes occur in the environment or load cell setup.
This comprehensive guide provides a detailed overview of building a load cell cable, ensuring you have the knowledge and tools necessary for successful implementation.
