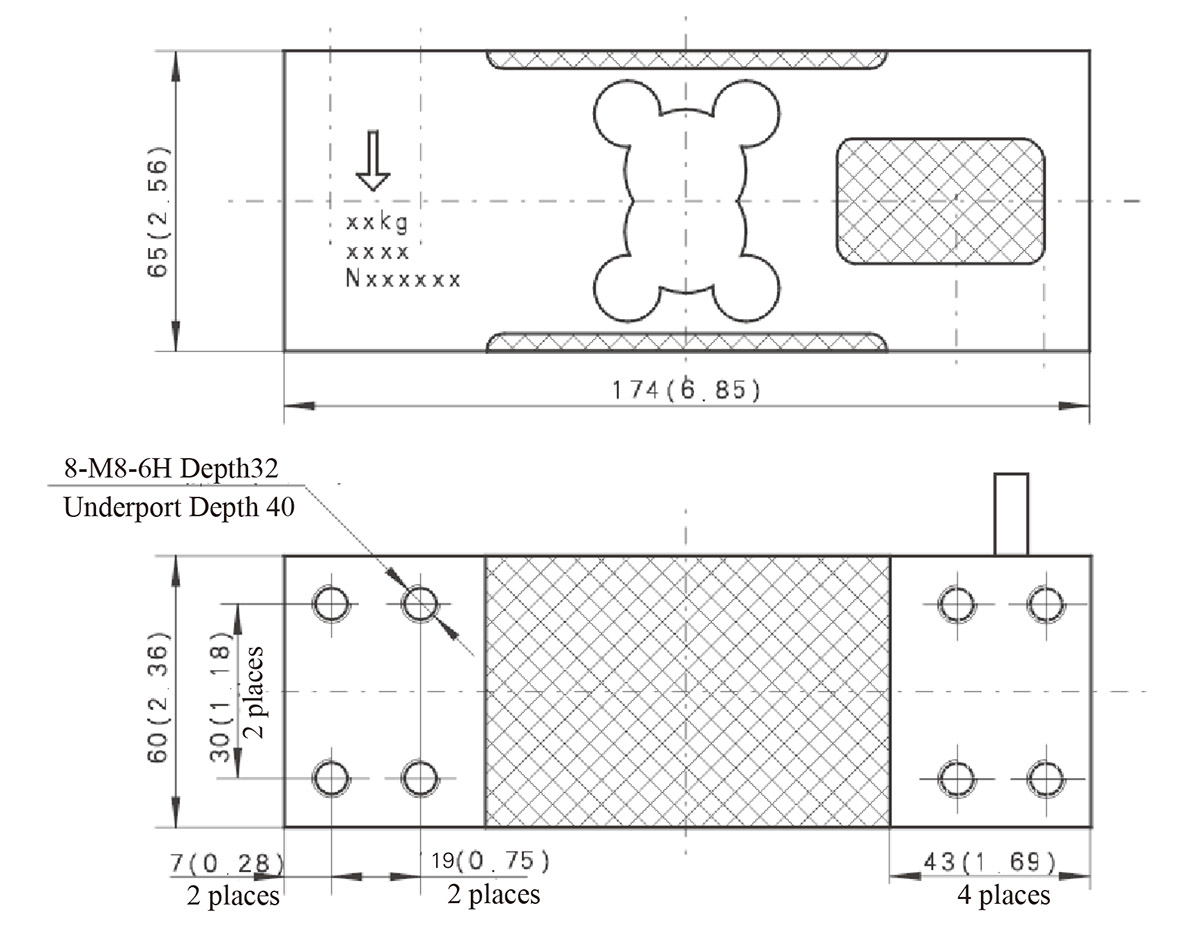

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Recommended selection model |
|
|

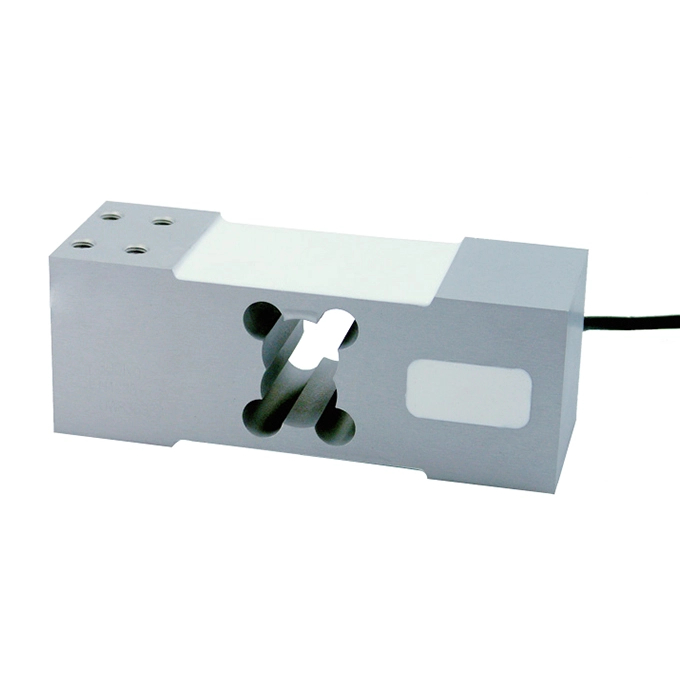

▶ Aluminium-alloy IP65 single point load cell. ▶Colourless anodized ▶Suitable for pricing scales, bench scales, etc. ▶Maximum platform size: 600 x 600 mm ▶A 1000 Ohm type available (R1) but is excluded from OIML |

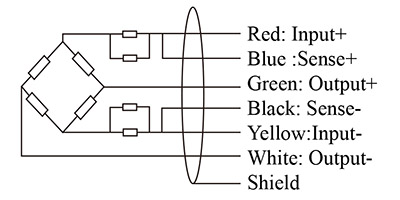

| Specifications |
| Specfications | Technique | |
| Maximum capacity (Emax) | 50/100/150/200/250/300/500/600kg | |
| Output sensitivity (=FS) | 2.0 ± 0.2mV/V | |
| Accuracy class | C3 | C4 |
| Combined error | ±0.02%FS | ±0.015%FS |
| Creep | ±0.0167%FS/30min | ±0.0125%FS/30min |
| Temperature effect on sensitivity | ±0.0175%FS/10℃ | ±0.0131%FS/10℃ |
| Temperature effect on zero | ±0.02%FS/10℃ | ±0.012%FS/10℃ |
| Zero balance | ±2%FS | |
| Compensated temperature | -10 ~ 40℃ | |
| Operating temperature | -35 ~ 65℃ | |
| Input resistance | 406 ± 6Ω | |
| Output resistance | 350 ± 3Ω | |
| Insulation resistance | ≥ 5000 (50VDC)MΩ | |
| Excitation, recommended voltage | 5 ~ 12VDC | |
| Excitation maximum | 18VDC | |
| Safe overload | 120%FS | |
| Ultimate overload | 150%FS | |
| Protection Class | IP65 | |
| Cable Specifications | Φ5.9MM | |
| Cable Length | 3m | |
| Recommended installation size | 600x600mm | |
| Corner Length | 0.02% load value/100mm | |
| Recommended torque on fixation | 20N.m | |
| Wiring | Red: Input+, Blue: Sense+,Green: Output+, Shield: Transparent, Yellow: Sense-, Black: Input-, White: Output- | |

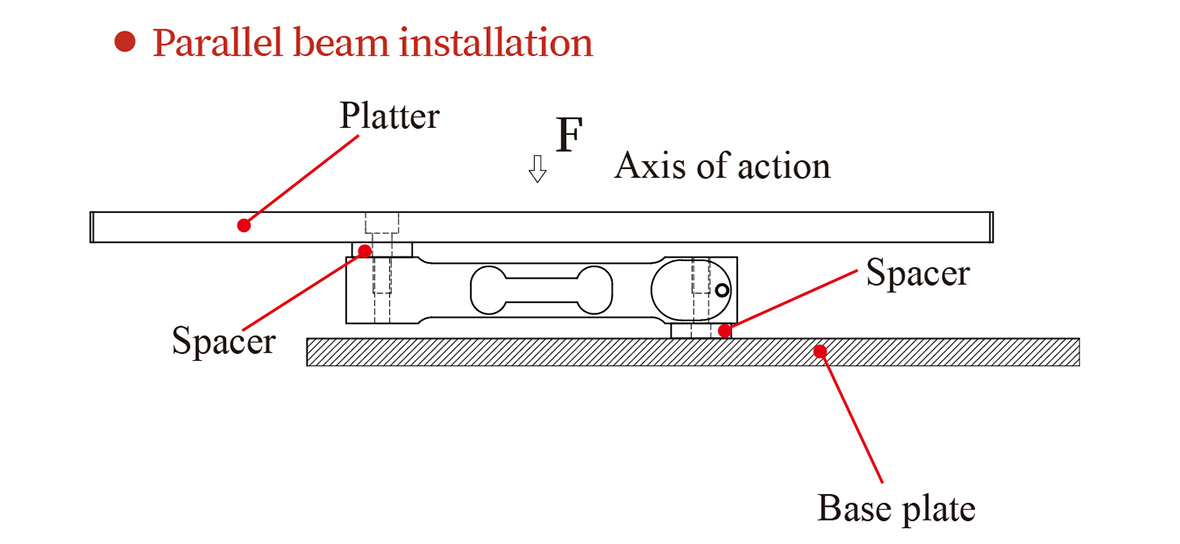

| Installation |
| Delivery Configurations |
